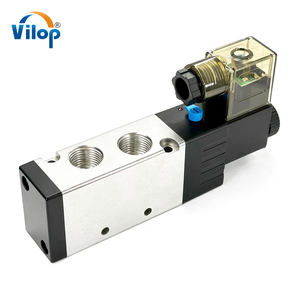

4V100 Series Solenoid Valve, Air Piloted Valve 4V100 Series Solenoid Valve, Air Piloted Valve
4V100 Series Solenoid Valve, Air Piloted Valve 4V100 Series Solenoid Valve, Air Piloted Valve
4V100 Series Solenoid Valve, Air Piloted Valve 4V100 Series Solenoid Valve, Air Piloted Valve
4V100 Series Solenoid Valve, Air Piloted Valve 4V100 Series Solenoid Valve, Air Piloted Valve
4V100 Series Solenoid Valve, Air Piloted Valve 4V100 Series Solenoid Valve, Air Piloted Valve

loading

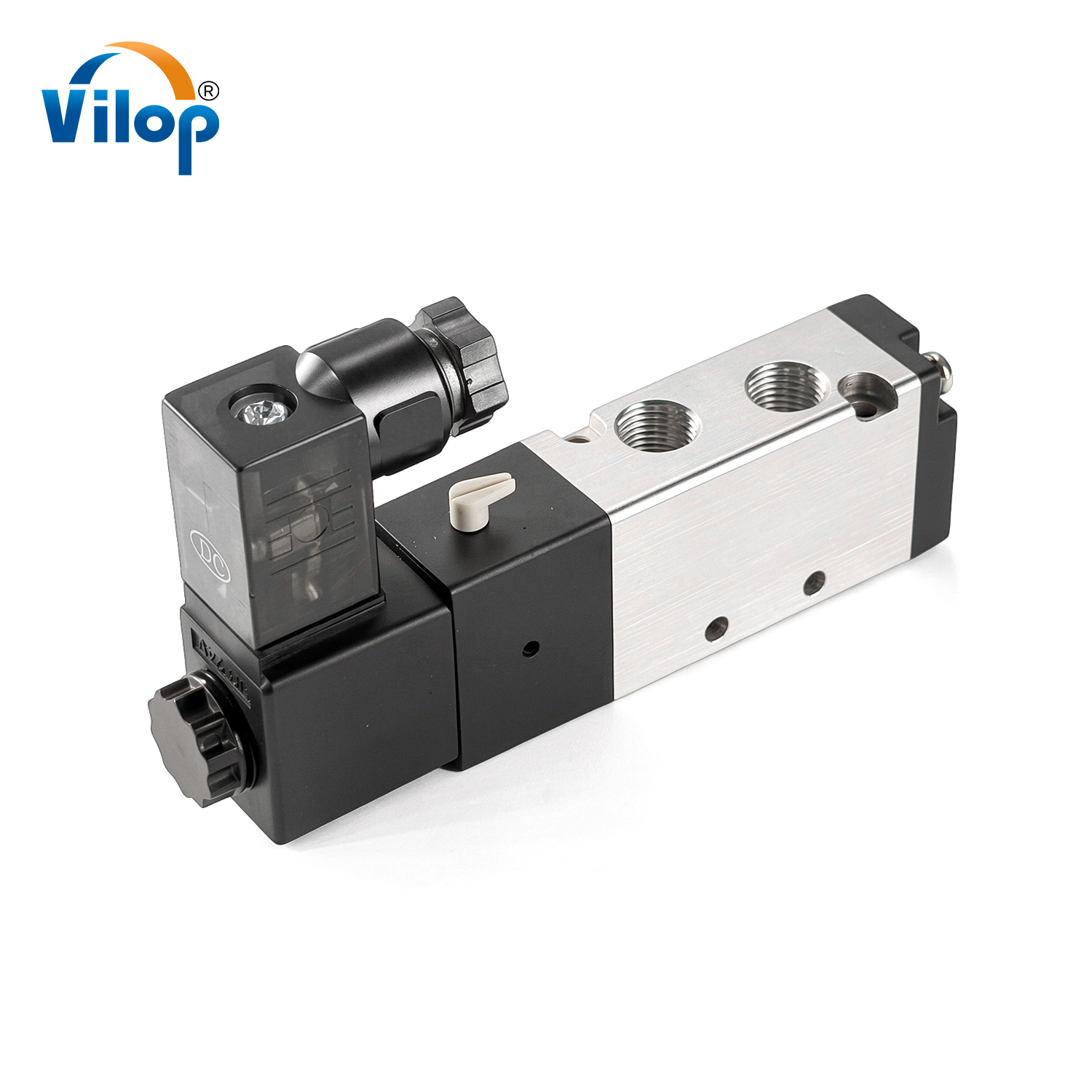

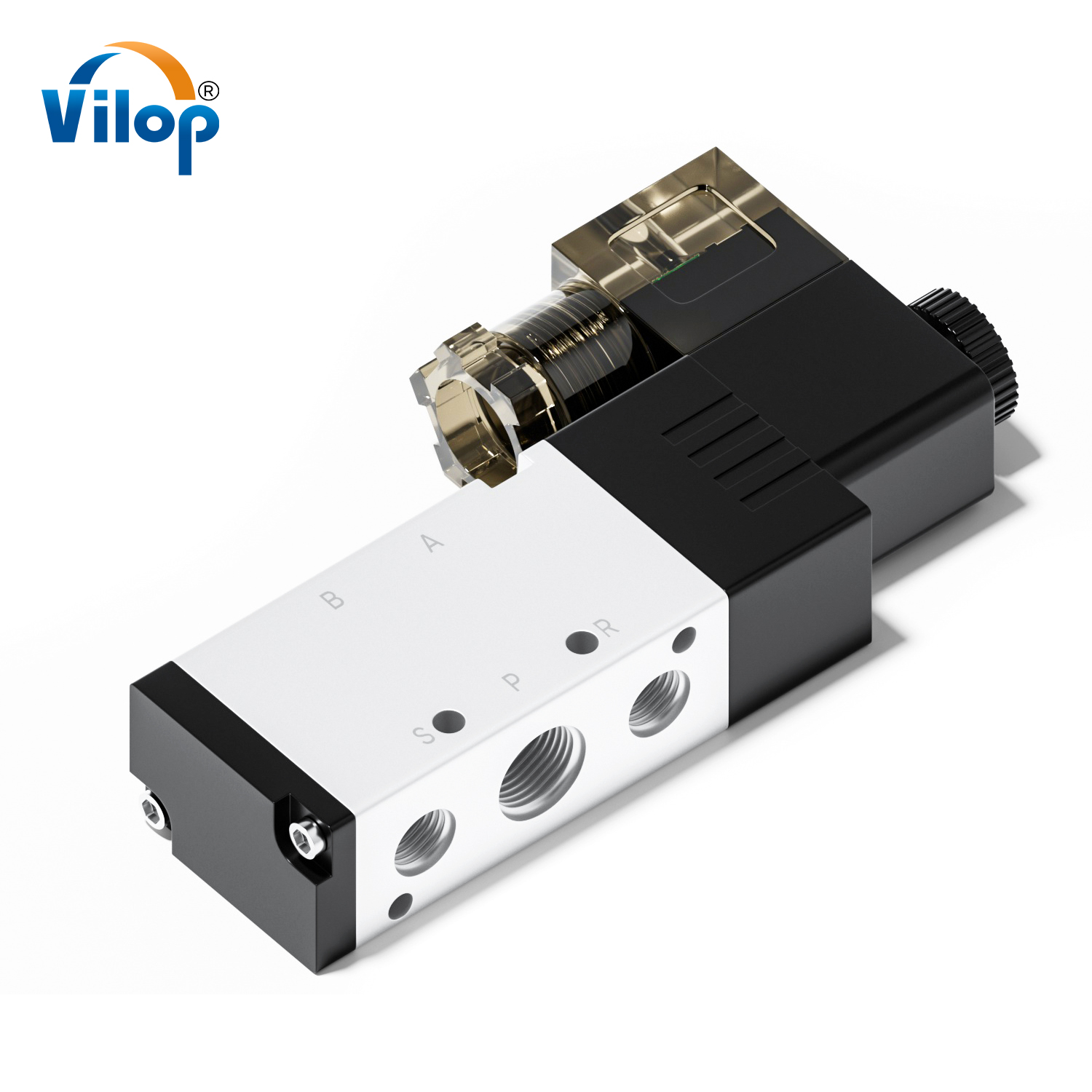

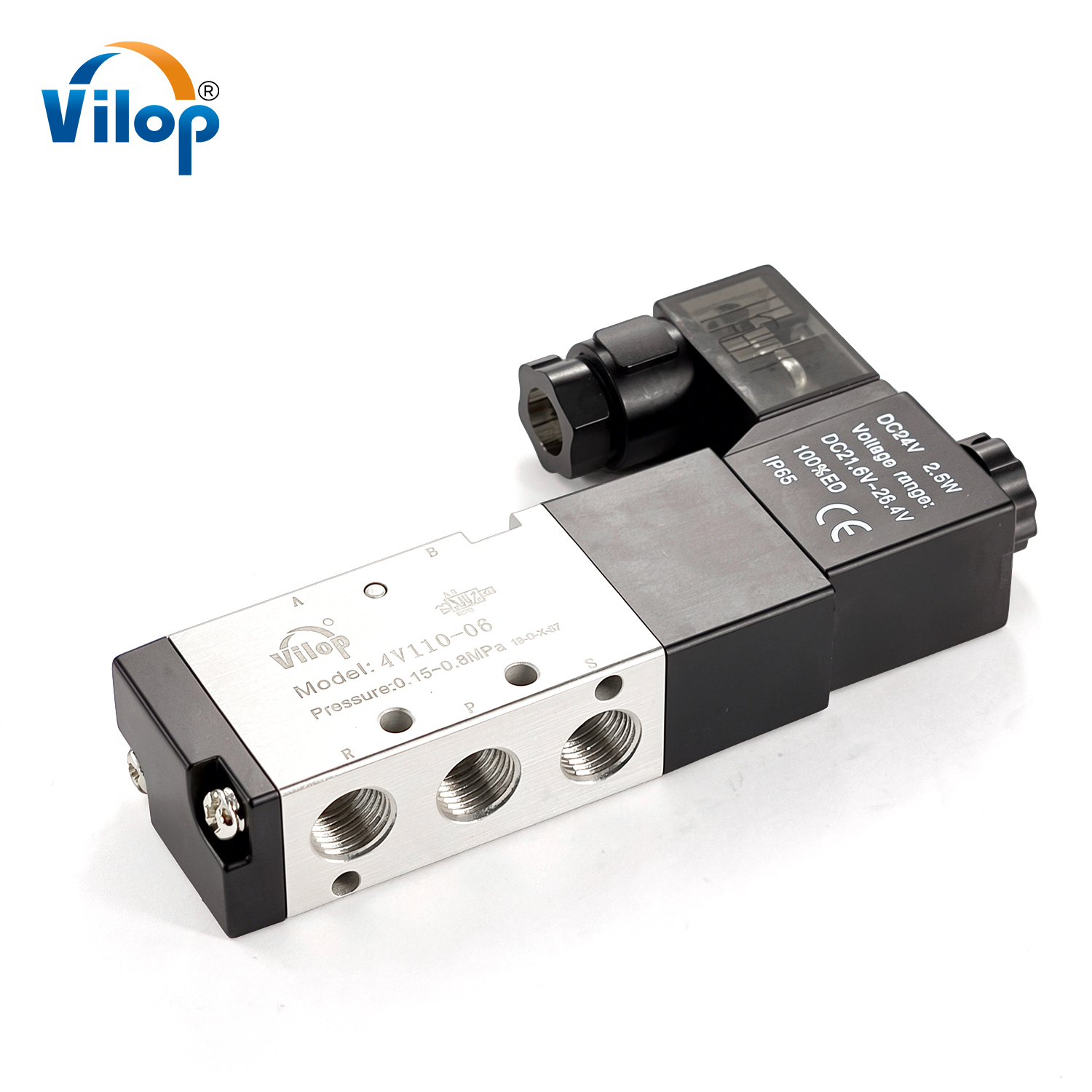

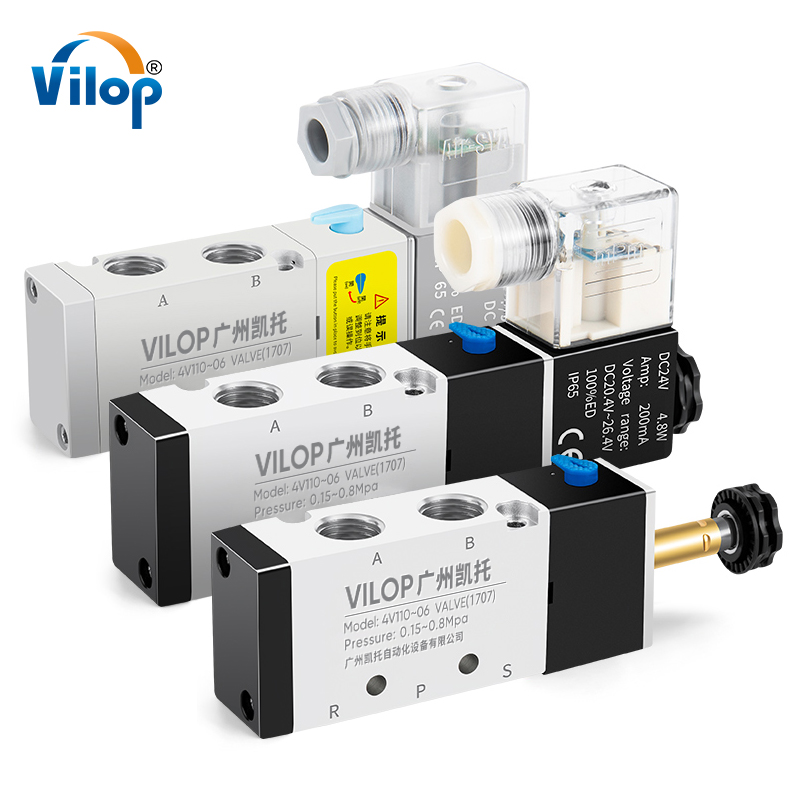

4V100 Series Solenoid Valve, Air Piloted Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

●Pneumatic solenoid valve 4V100 series 1.2W low power coil-energy saving and environmental protection

●High manufacturing cost but fair selling price. At this price, the product is a bargain.

●Pneumatic solenoid valve 4V100 series 5/2 way or 5/3 way

●Single electric control and double electric control for your selection

  • 4V100

  • VILOP

  • 4V100

  • $ 5 - 10

Number of valves:
Port size:
Standard Voltage:
Availability:
Quantity:


Material Aluminium Weight 1-50kg
Working Medium 40 Micron Filtered Air Showroom Location United States, China
Working Pressure 0.15~0.8 MPa Power Consumption AC: 2.8 VA DC: 2.8 W


Operation Internal piloted

Valve Type  3/2 way
Ambient Temperature

5~50 ℃

Port size

Inlet, Outlet, Exhaust Port = M5 × 0.8

Inlet, Outlet, Exhaust Port = G 1/8″

Warranty 1.5 years



4V100 Series Solenoid Valve, Air Piloted Valve


●Pneumatic solenoid valve 4V100 series 1.2W low power coil-energy saving and environmental protection


●High manufacturing cost but fair selling price. At this price, the product is a bargain.


●Pneumatic solenoid valve 4V100 series 5/2 way or 5/3 way


●Single electric control and double electric control for your selection

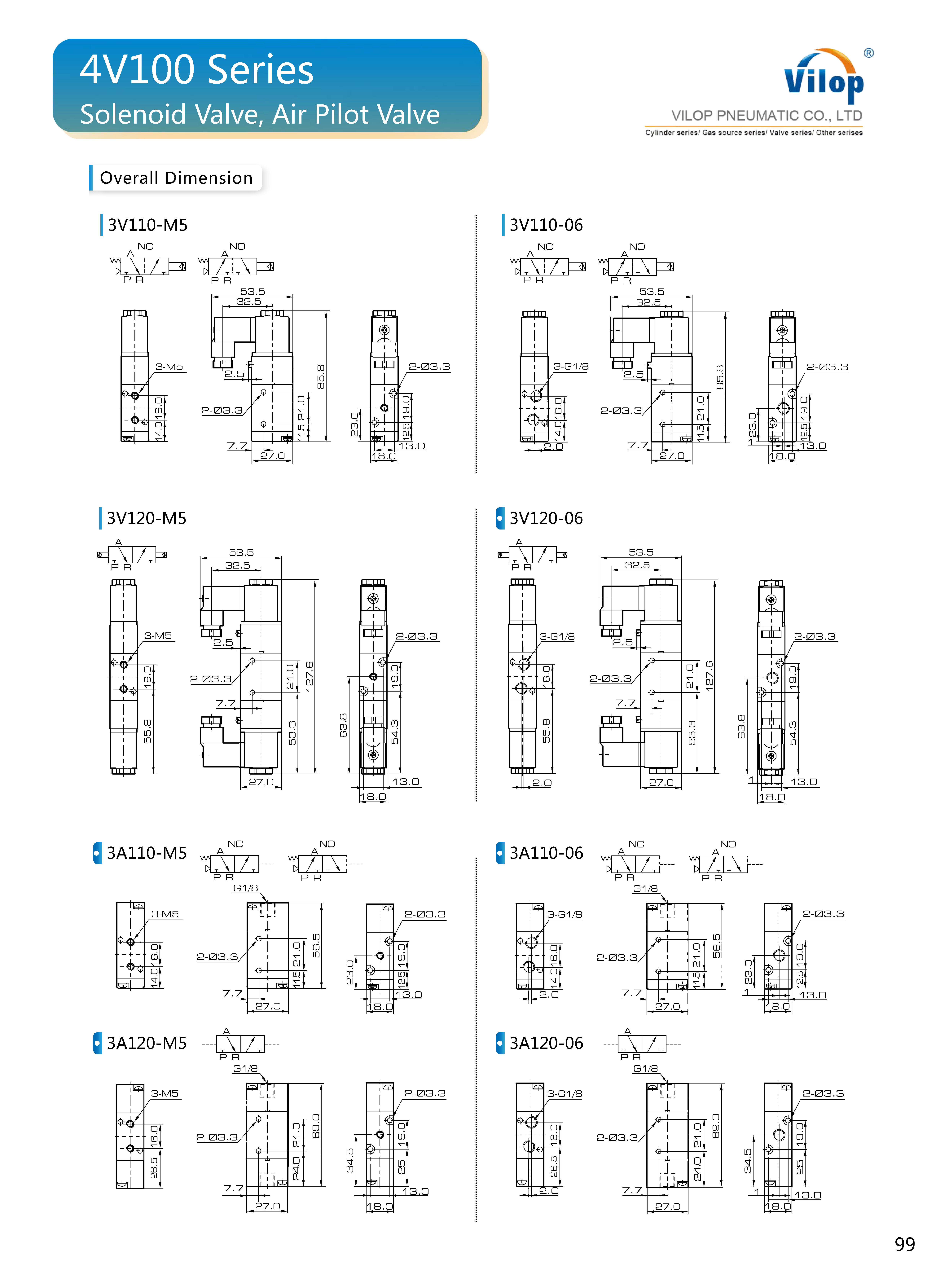

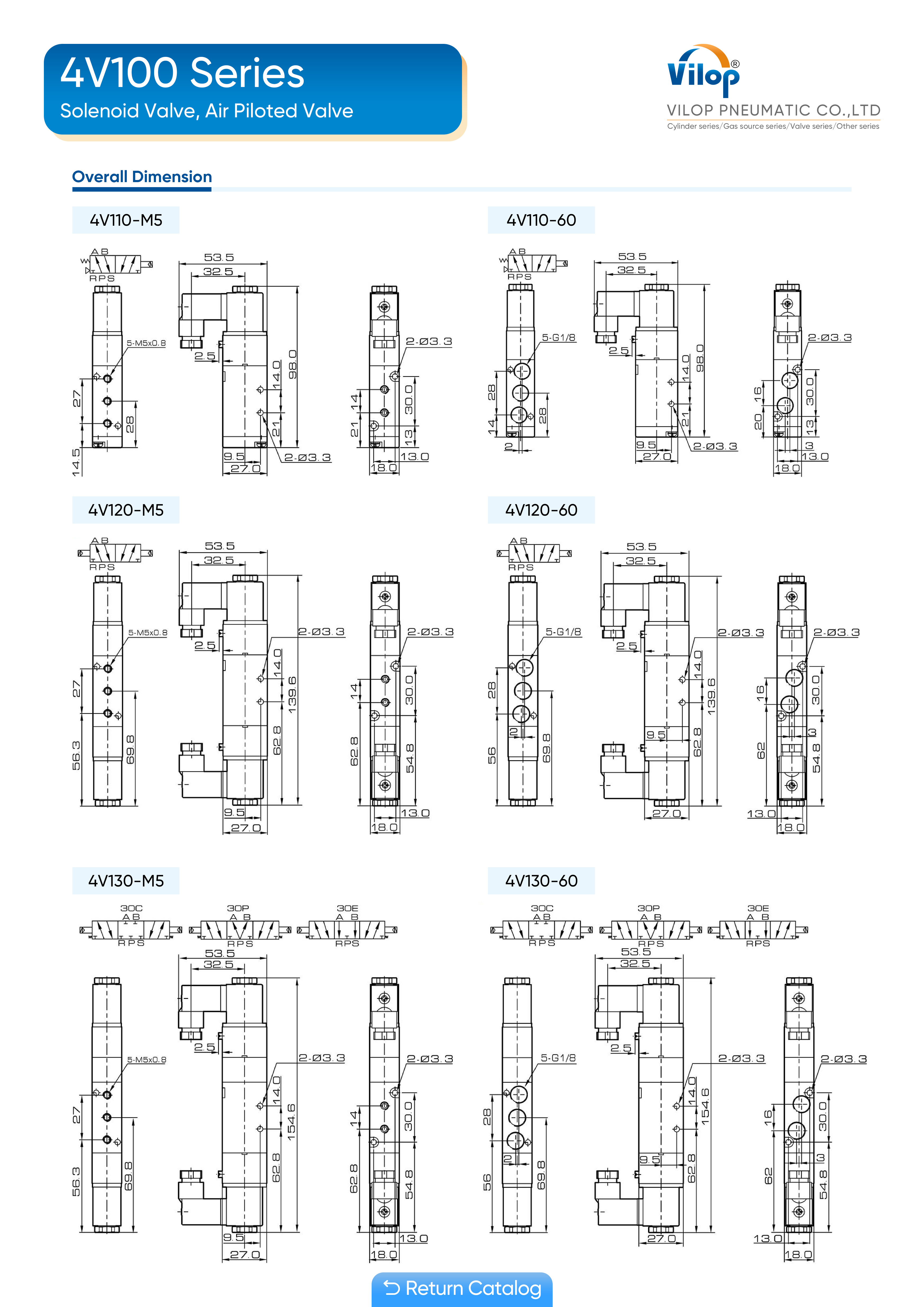

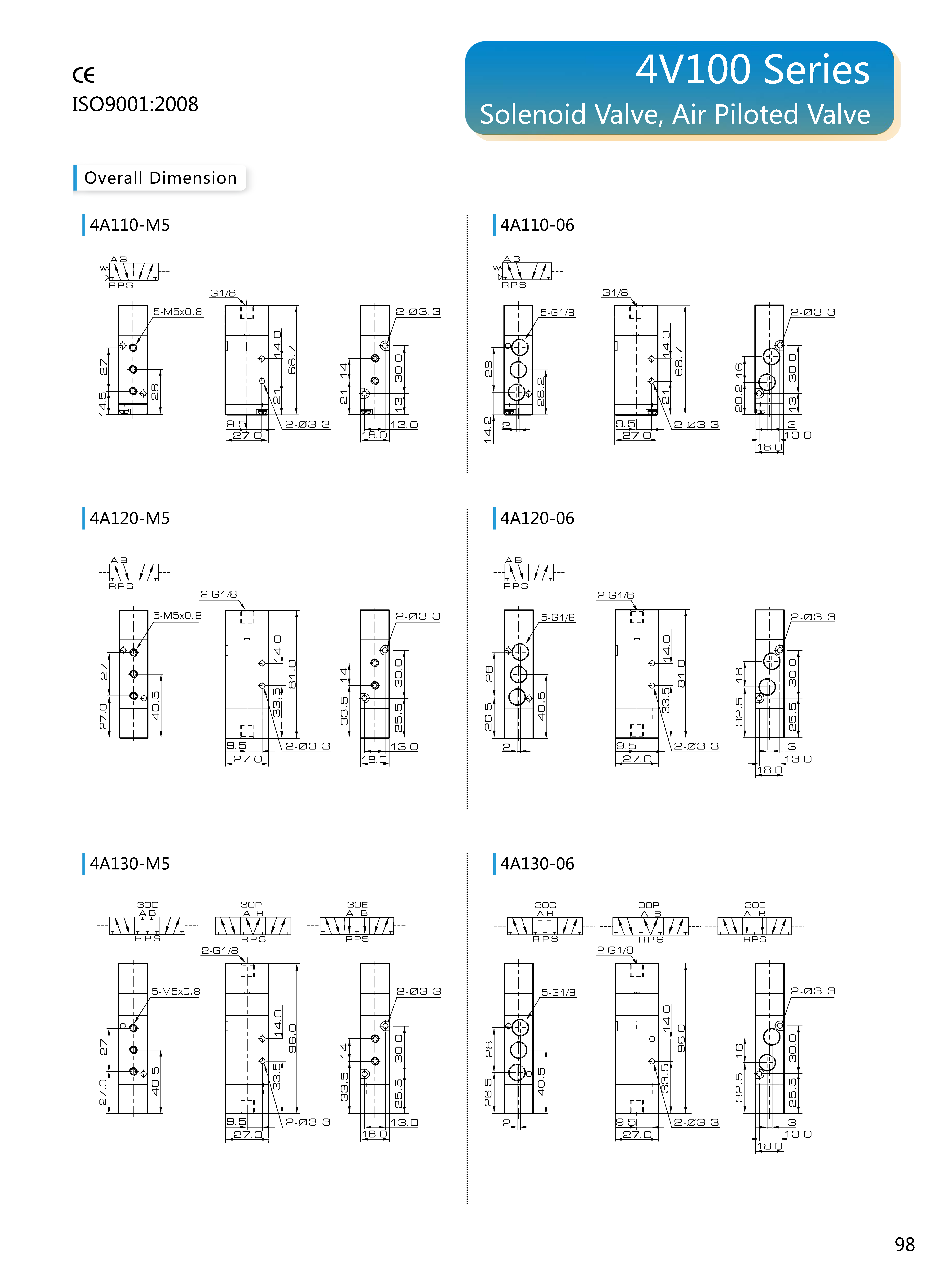

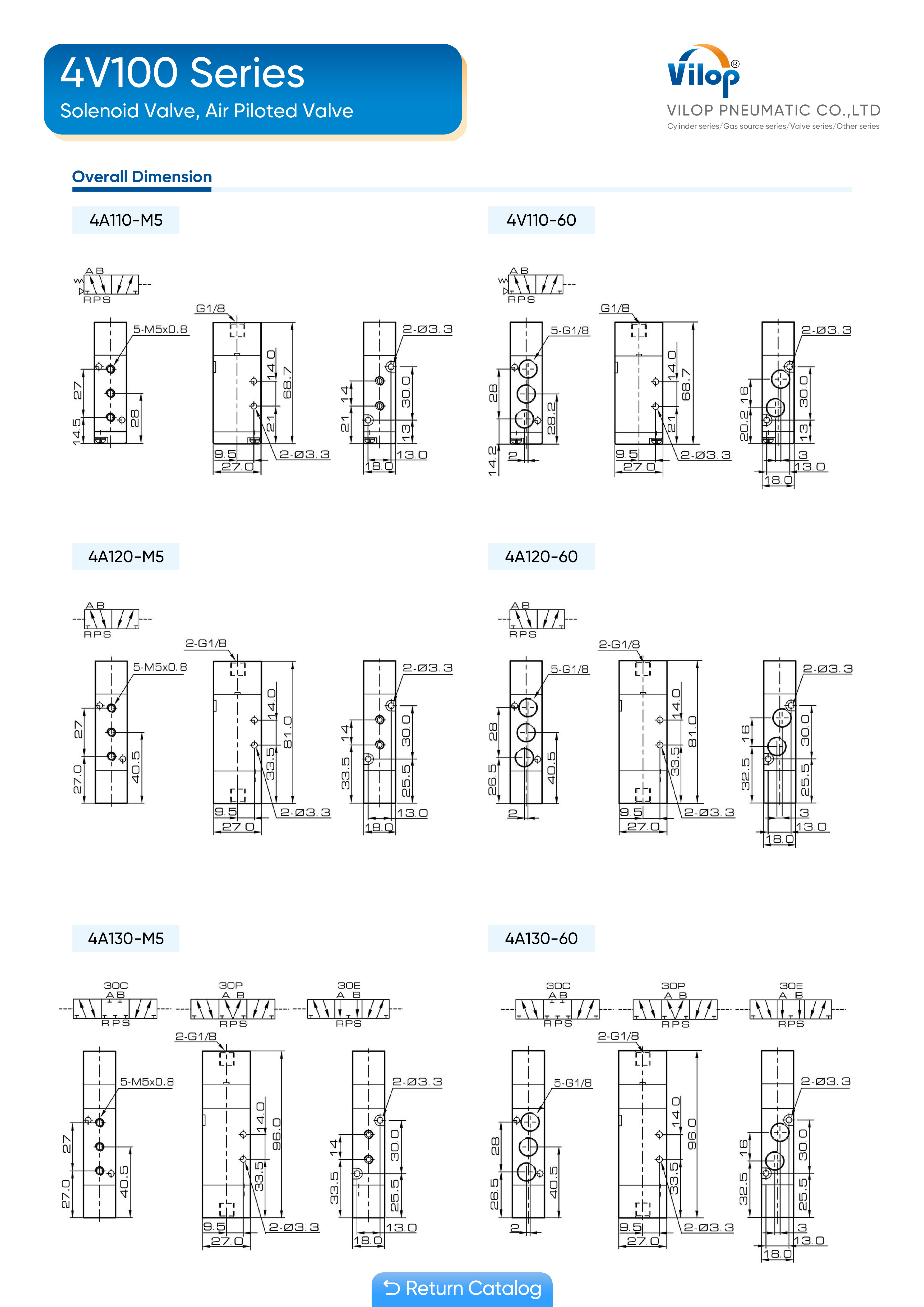

----- Overall Dimension -----

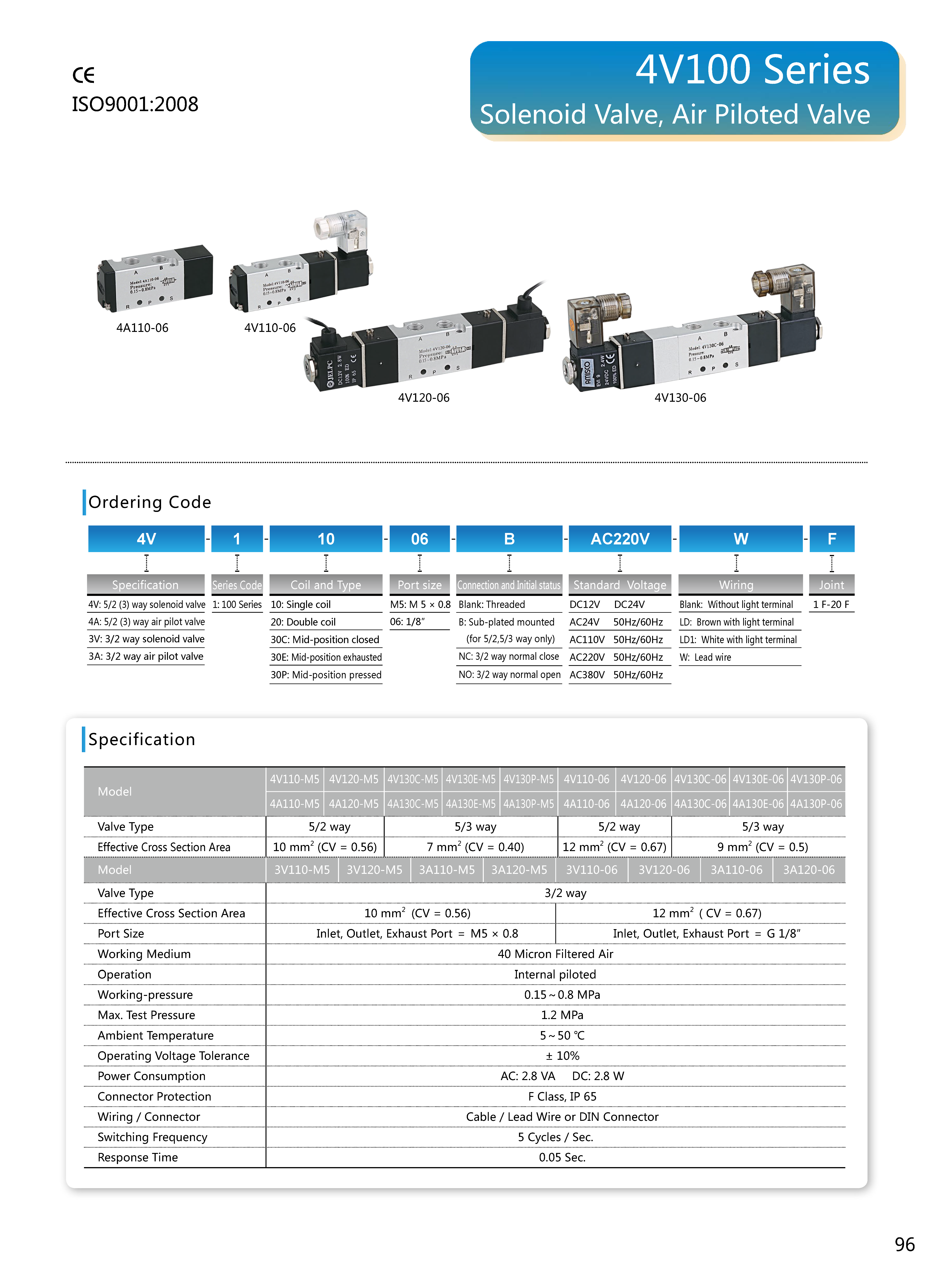

Vilop-Catalog3.0-排页数_页面_096









Vilop-Catalog3.0-097Vilop-Catalog3.0-098Vilop-Catalog3.0-099                  download the Catalog for More Products>>
