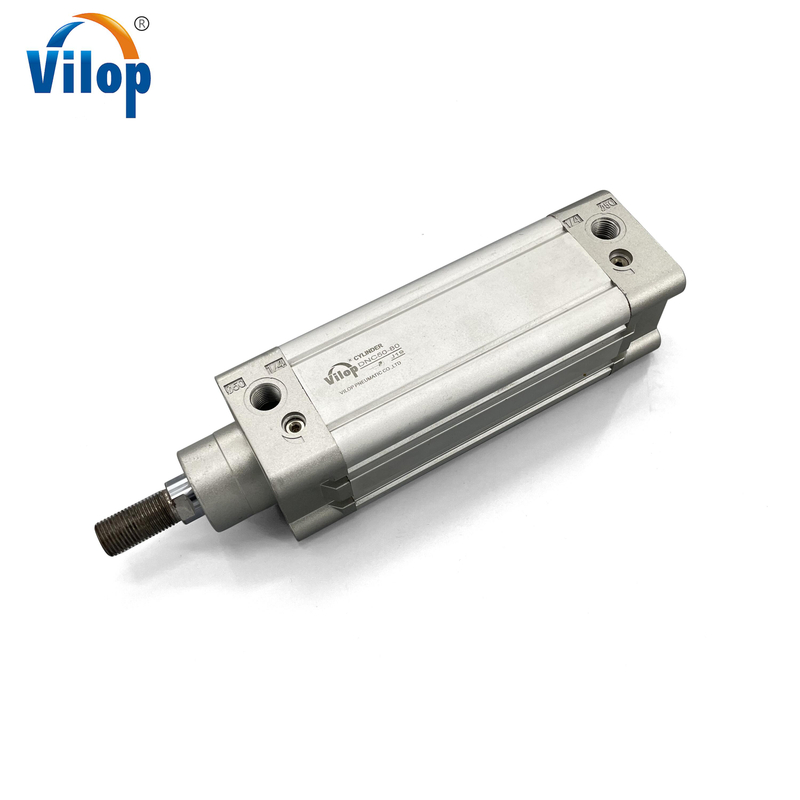

DNC Series Standard Cylinder ISO15552 Standard)

• Standards-based cylinders to ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NF E49003.1 and UNI 10290)

• The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure

• An extensive range of accessories enables the cylinder to be installed virtually anywhere

• The widest range of variants on the market offers the ideal cylinder DNC for any application

Model:
DNC
Brand:
VILOP
Code:
DNC

BORE:	32 40 50 63 80 100 125
STOKE:	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000
MAGNET:	Blank S
Availability:

Quantity:



Inquire Add to Basket

Material	Aluminium	Weight	1-50kg
Working Medium	Clean Air	Showroom Location	United States, China
Proof Pressure	13.5Kgf/cm2	Bore size	32/40/50/63/80/100/125mm
Operating Speed	50~800mm/s	Operating pressure	1~10.0Kgf/cm2
Operation	Double acting	Port size	G1/8' G1/4' G3/8' G1/2'
Warranty	1.5 years	Mountings	LB FA FB CA CB YB

ISO 15552 Standard Air Cylinder

• Standards-based cylinders to ISO 15552 (corresponds to the withdrawn standards ISO 6431, DIN ISO 6431, VDMA 24562, NF E49003.1 and UNI 10290)

• The modern, consistent design saves up to 11% more space compared to ordinary standards-based cylinders, providing a significantly more compact system structure

• An extensive range of accessories enables the cylinder to be installed virtually anywhere

• The widest range of variants on the market offers the ideal cylinder DNC for any application

----- Internal Structure -----

Vilop-Catalog3.0-_004

----- Overall Dimension -----

Vilop-Catalog3.0-_003 Vilop-Catalog3.0_005 Vilop-Catalog3.0006 Vilop-Catalog3.0007

Download the Catalog for More Products>>
