Air treatment units are used for treating air source from air compressor. It includes three parts with different function:air filter for filtering the dirt and particles from air source; regulator for regulating the pressure of air source; lubricator for oil lubrication.

  • GR 400

  • VILOP

  • GR 400

Code:
Port Size:
Drain:
Pressure Gauge:
Scale:
Filter Accuracy:
Thread:
Availability:
Quantity:


Material Aluminium Weight 1-50kg
Working Medium Clean Air Showroom Location United States, China
 Port Size PT 1/8 PT 1/4 PT 1/4 PT 3/8 PT 1/2 PT 3/8 PT 1/2 Proof Pressure 1.5 MPa
 Filtration 40 μ or 5 μ Operating Temperature Range   5 ~ 60 ℃
Adjustable pressure range 0.15 ~ 0.9 MPa Recommended Lubrication ISO VG 32 or Same Grade


Air Soruce Treatment Units

Air treatment units are used for treating air source from air compressor. It includes three parts with different function:air filter for filtering the dirt and particles from air source; regulator for regulating the pressure of air source; lubricator for oil lubrication.

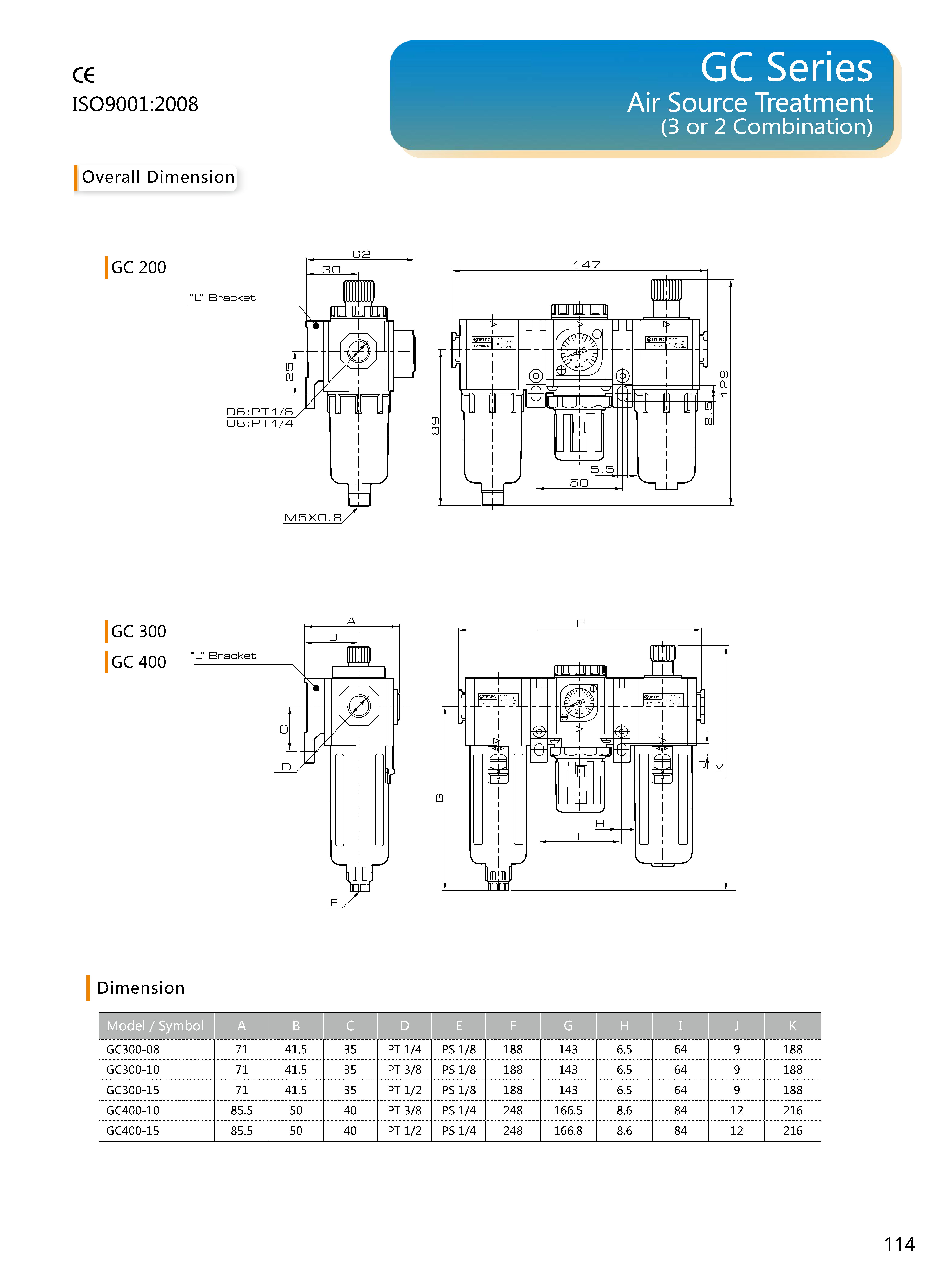

----- Overall Dimension -----



Vilop-Catalog3.0-_113








Vilop-Catalog3.0-_114                  download the Catalog for More Products>>
