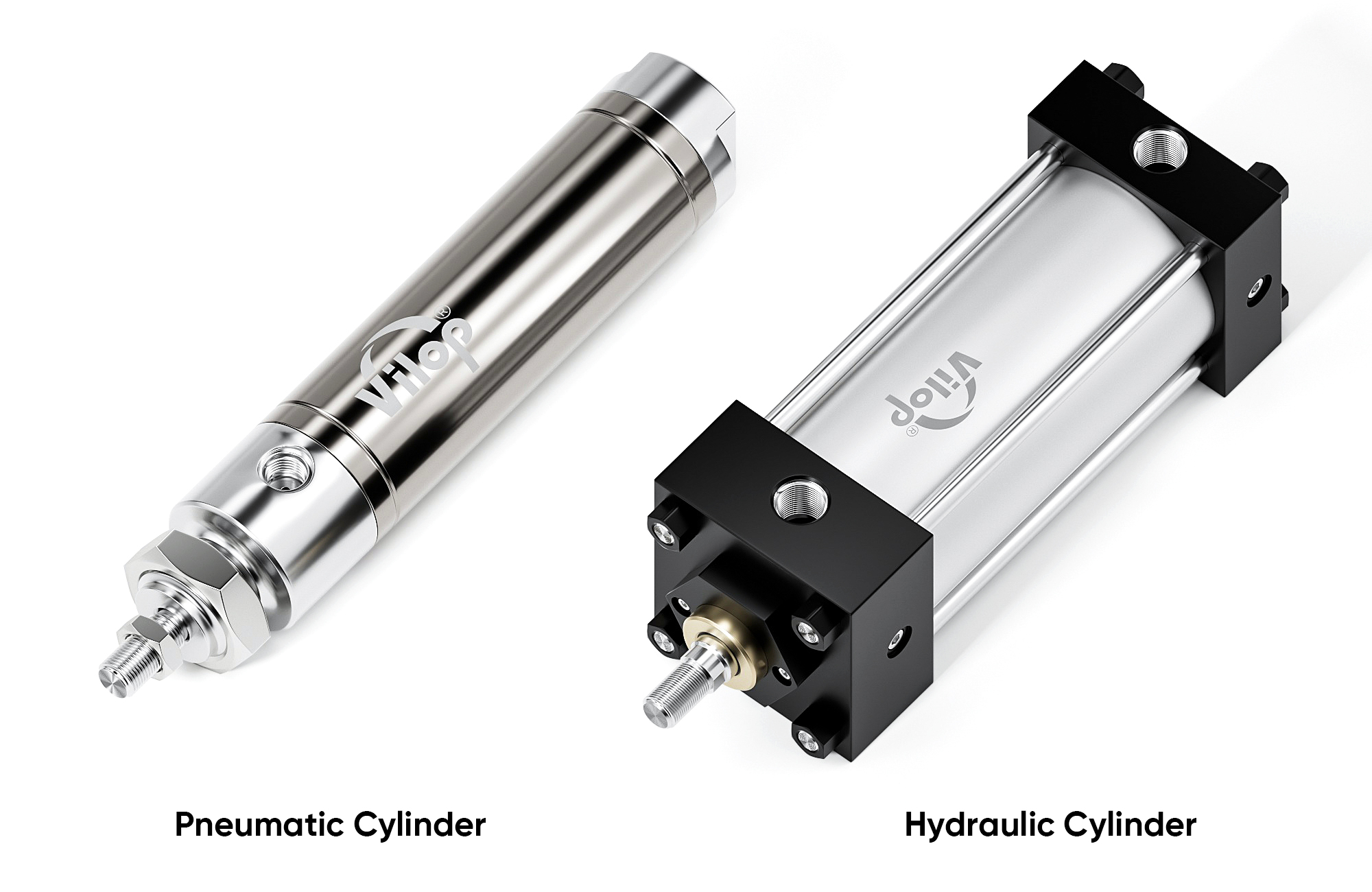

Cylinders are widely used in industrial machinery to create linear motion. Two of the most common types are pneumatic cylinders and hydraulic cylinders. While both perform similar functions, they operate using different power sources and are suited for different applications.
Understanding the differences between pneumatic and hydraulic cylinders can help engineers and equipment buyers choose the right solution for their systems.
This article compares pneumatic and hydraulic cylinders in terms of working principle, performance, advantages, and applications.

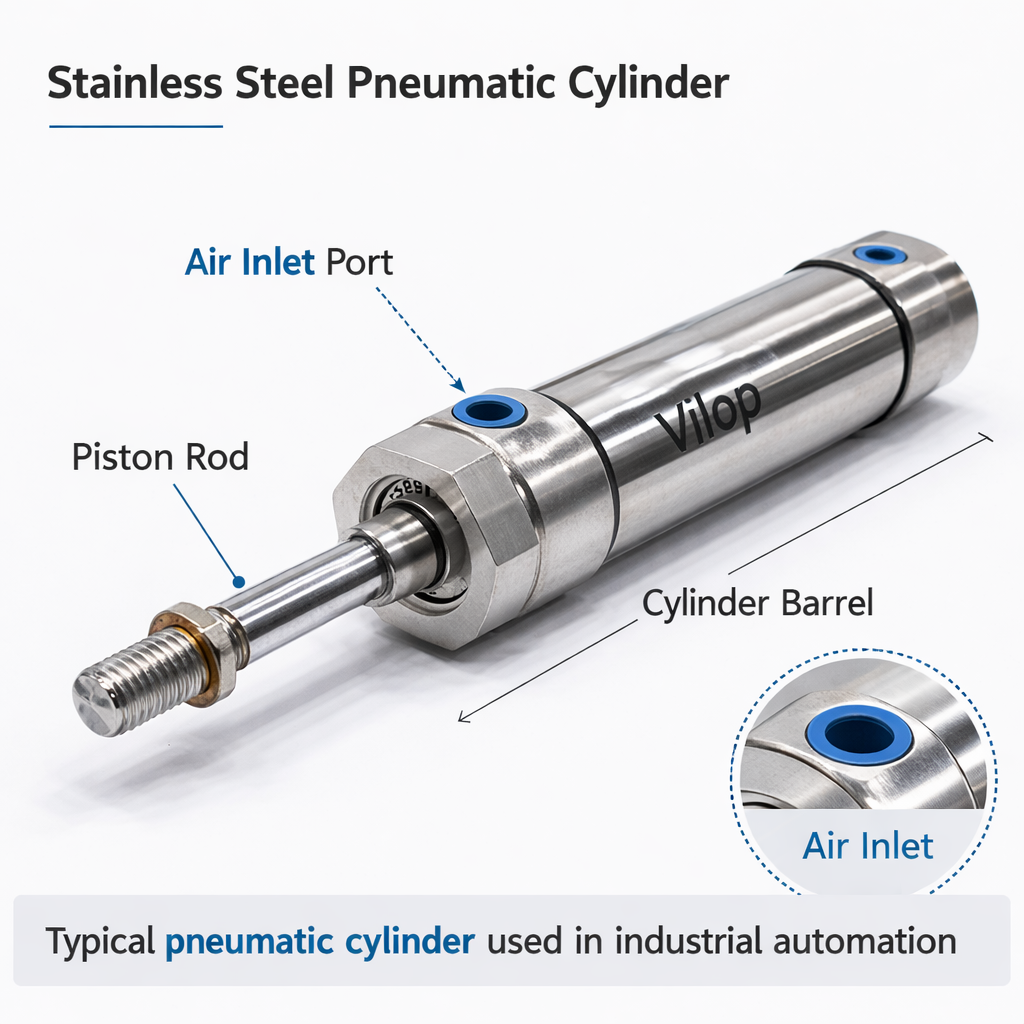

A pneumatic cylinder is a mechanical actuator that uses compressed air to generate linear motion. Air pressure enters the cylinder chamber and pushes a piston, which moves the piston rod to perform mechanical work.

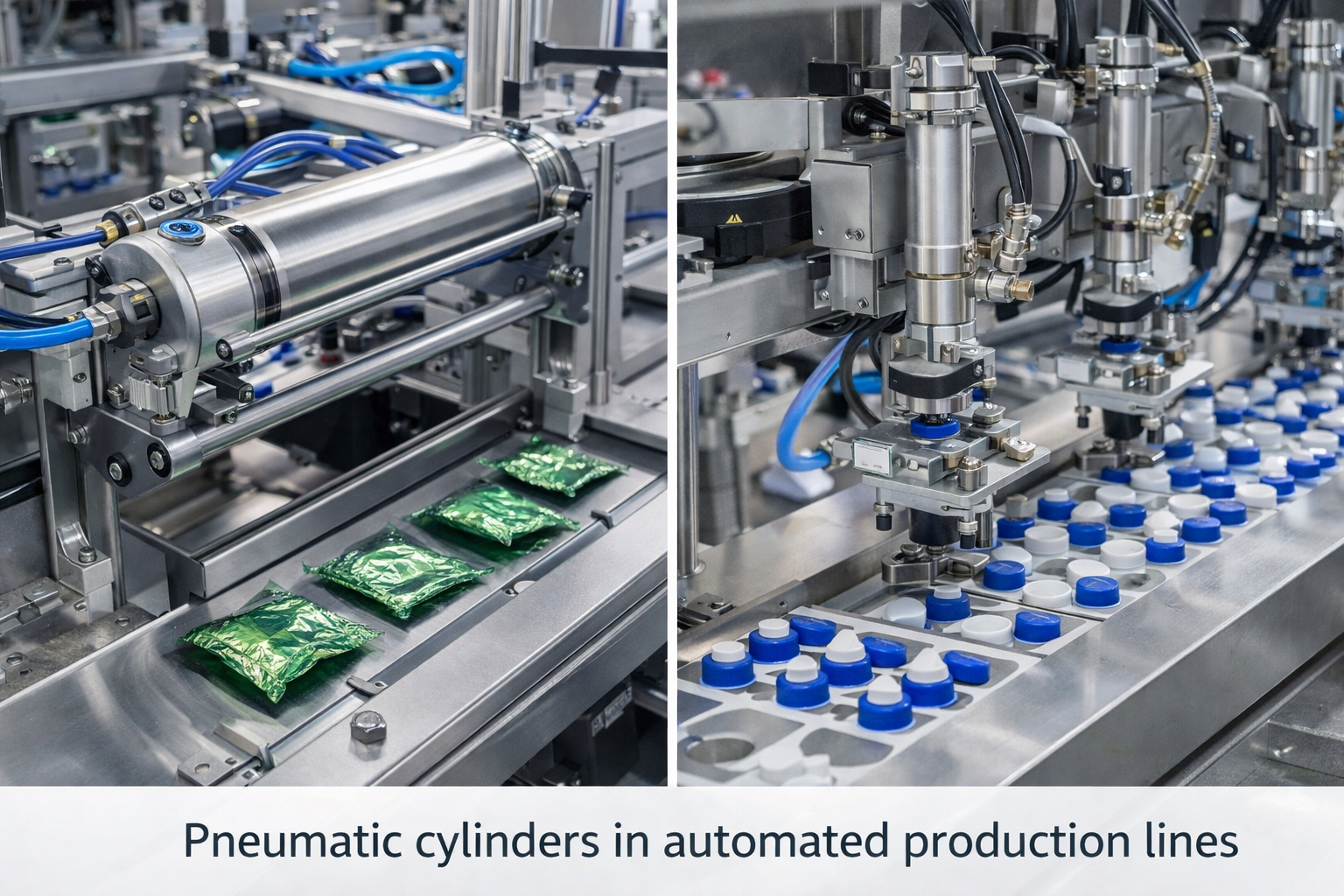

Pneumatic cylinders are commonly used in automation systems, packaging machines, assembly lines, and robotics because they are lightweight, fast, and easy to maintain.
Compared with hydraulic systems, pneumatic systems are generally simpler and cleaner.
A hydraulic cylinder uses pressurized hydraulic fluid (usually oil) to create linear motion. When hydraulic fluid enters the cylinder, it pushes the piston and generates strong mechanical force.
Hydraulic cylinders are widely used in heavy-duty equipment, such as construction machinery, excavators, presses, and lifting equipment.
Because hydraulic fluid is incompressible, hydraulic systems can produce very high force output.
Although both cylinders convert pressure into linear motion, they differ in several important aspects.

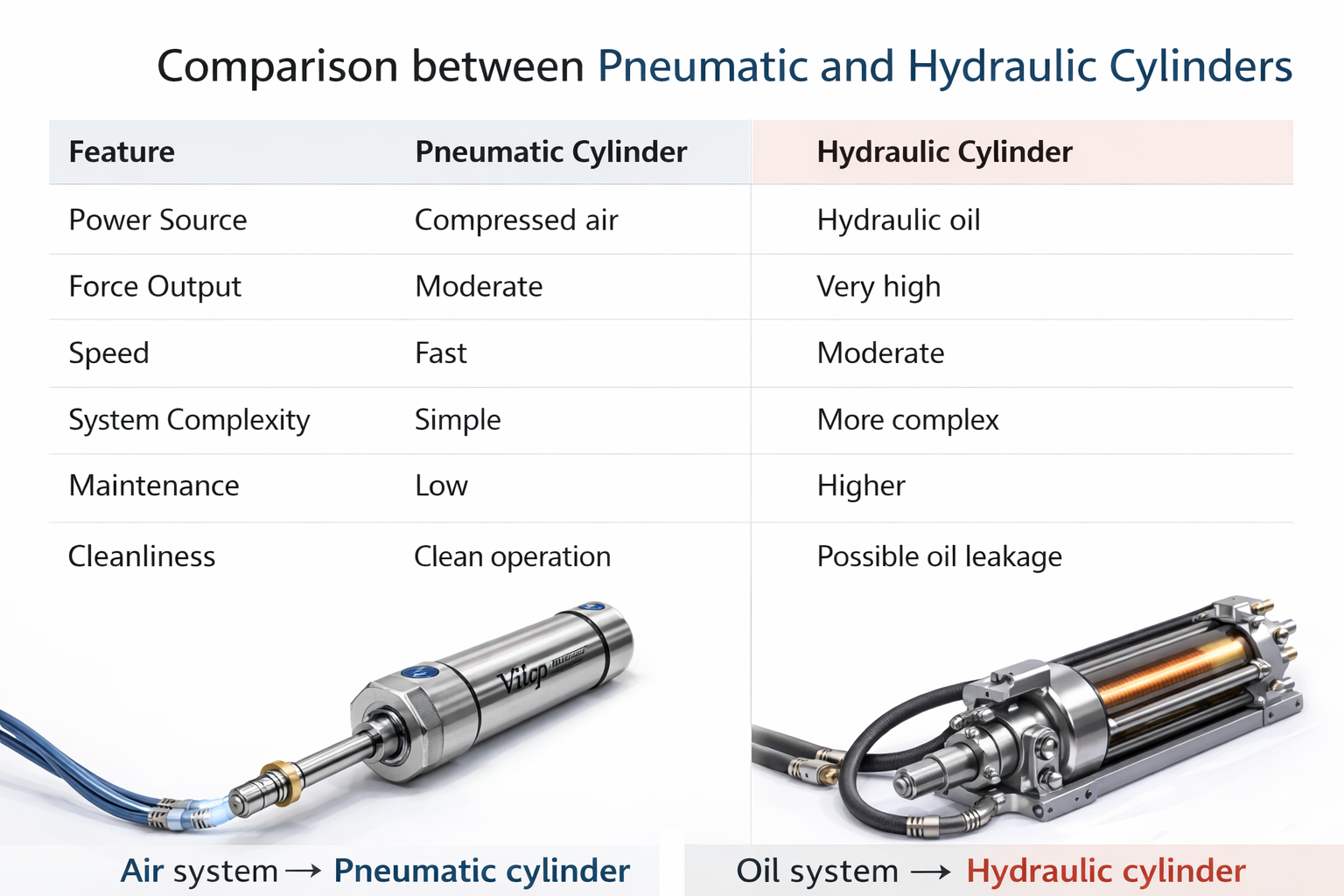

| Feature | Pneumatic Cylinder | Hydraulic Cylinder |
|---|---|---|
| Power Source | Compressed air | Hydraulic oil |
| Force Output | Moderate | Very high |
| Speed | Fast | Moderate |
| System Complexity | Simple | More complex |
| Maintenance | Low | Higher |
| Cleanliness | Clean operation | Possible oil leakage |
Pneumatic cylinders are often preferred in automation and light industrial tasks, while hydraulic cylinders are used when high force is required.
Pneumatic cylinders offer several advantages in industrial automation.
Simple structure
Pneumatic systems have fewer components compared with hydraulic systems.
Fast operation
Compressed air allows cylinders to move quickly, making them ideal for repetitive tasks.
Clean and safe
Because they use air instead of oil, pneumatic systems are cleaner and more suitable for industries such as food processing.
Lower cost
Pneumatic components are generally more affordable.
Hydraulic cylinders are known for their powerful performance.
High force output
Hydraulic systems can generate significantly more force than pneumatic systems.
Smooth operation
Hydraulic fluid provides smooth and controlled motion.
Suitable for heavy loads
They are ideal for lifting, pressing, and moving heavy materials.
The choice between pneumatic and hydraulic cylinders depends on the application.
Choose pneumatic cylinders if:
Speed is important
The load is relatively light
Clean operation is required
Maintenance should be simple
Choose hydraulic cylinders if:
High force is required
Heavy loads must be moved
Precise force control is needed
Both pneumatic and hydraulic cylinders play important roles in industrial motion control. Pneumatic cylinders are ideal for fast, clean, and lightweight automation tasks, while hydraulic cylinders are better suited for high-force heavy-duty applications.
By understanding their differences, engineers and manufacturers can select the most suitable cylinder for their equipment and production systems.
