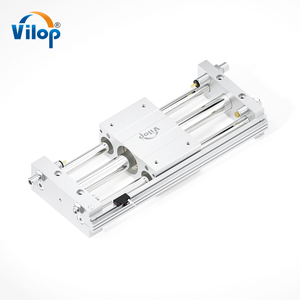

RMT Rodless Cylinder Magnetic Coupling RMTL10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
You are here: Home » Products » Standard Air Cylinder » RMT Rodless Cylinder Magnetic Coupling RMTL10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke
RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke RMT Rodless Cylinder Magnetic Coupling CYD1L10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke

loading

RMT Rodless Cylinder Magnetic Coupling RMTL10/15/20/25/40-100 * 300 Pneumatic Slide Table Long Stroke

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The Vilop RMT/RMTL magnetically coupled rodless cylinders are high-efficiency linear actuation solutions engineered for industrial automation applications. Featuring a long-stroke design and built-in pneumatic cushioning technology, they deliver precise and reliable performance across diverse operational scenarios.

  • RMT

  • VILOP

  • RMT

Size:
RMT16-100
RMT16-100
RMT16-200
RMT16-200
RMT16-300
RMT16-300
RMT16-400
RMT16-400
RMT16-500
RMT16-500
RMT20-100
RMT20-100
RMT20-200
RMT20-200
RMT20-300
RMT20-300
RMT20-400
RMT20-400
RMT20-500
RMT20-500
RMT25-100
RMT25-100
RMT25-200
RMT25-200
RMT25-300
RMT25-300
RMT25-400
RMT25-400
RMT25-500
RMT25-500
RMT32-100
RMT32-100
RMT32-200
RMT32-200
RMT32-300
RMT32-300
RMT32-400
RMT32-400
RMT32-500
RMT32-500
RMT40-100
RMT40-100
RMT40-200
RMT40-200
RMT40-300
RMT40-300
RMT40-400
RMT40-400
RMT40-500
RMT40-500
SKU:
Availability:
Quantity:
Inquire Add to Basket


Material Aluminium Weight 1-50kg
Working Medium Clean Air Showroom Location United States, China
Proof Pressure 215psi (1.5 MPa) Bore size 6/ 10 /15 / 20 / 25 / 32/ 40
Piston Speed  50 to 400 mm/s Operating pressure 1～9.0Kgf/cm2
Operation Single acting  Cushion
 Rubber bumper/Shock absorber
Warranty 1.5 years Lubrication Non-lube


RMTL/RMT magnetic coupling rodless cylinder pneumatic slide table


Series RMTL/RMT magnetic coupling rodless cylinder pneumatic slide table. The tube is impact extruded aluminum to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Eight mounting options are available. Auto switch capable.


• RMTL/RMT, Single acting, single rod cylinder with made-to-order options

• Bores sizes: 6/ 10 /15 / 20 / 25 / 32/ 40

• Most options are auto switch capable

• Available strokes: 100mm to 2000mm depending on bore size

• 8 mounting options



----- Overall Dimension -----

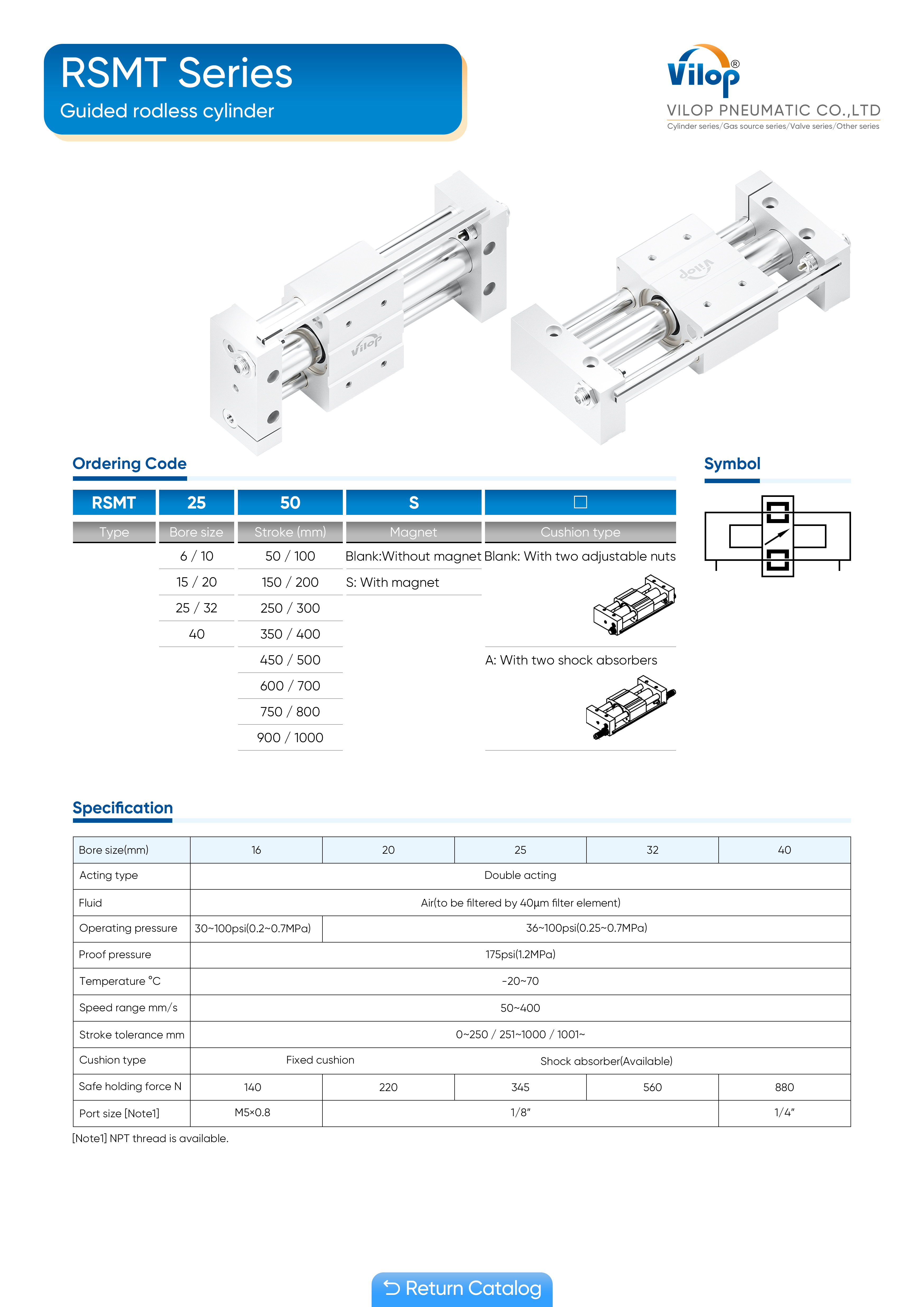

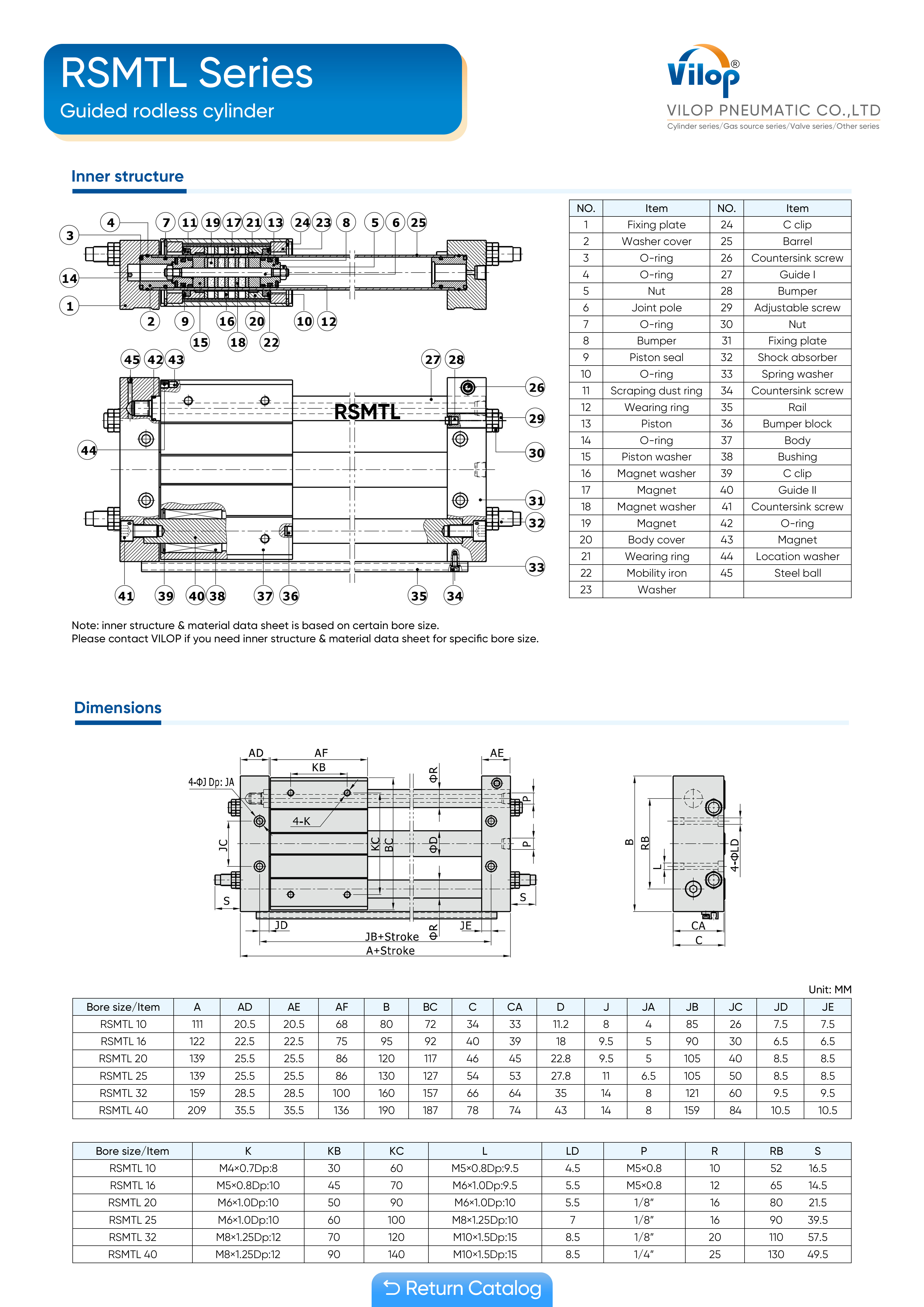

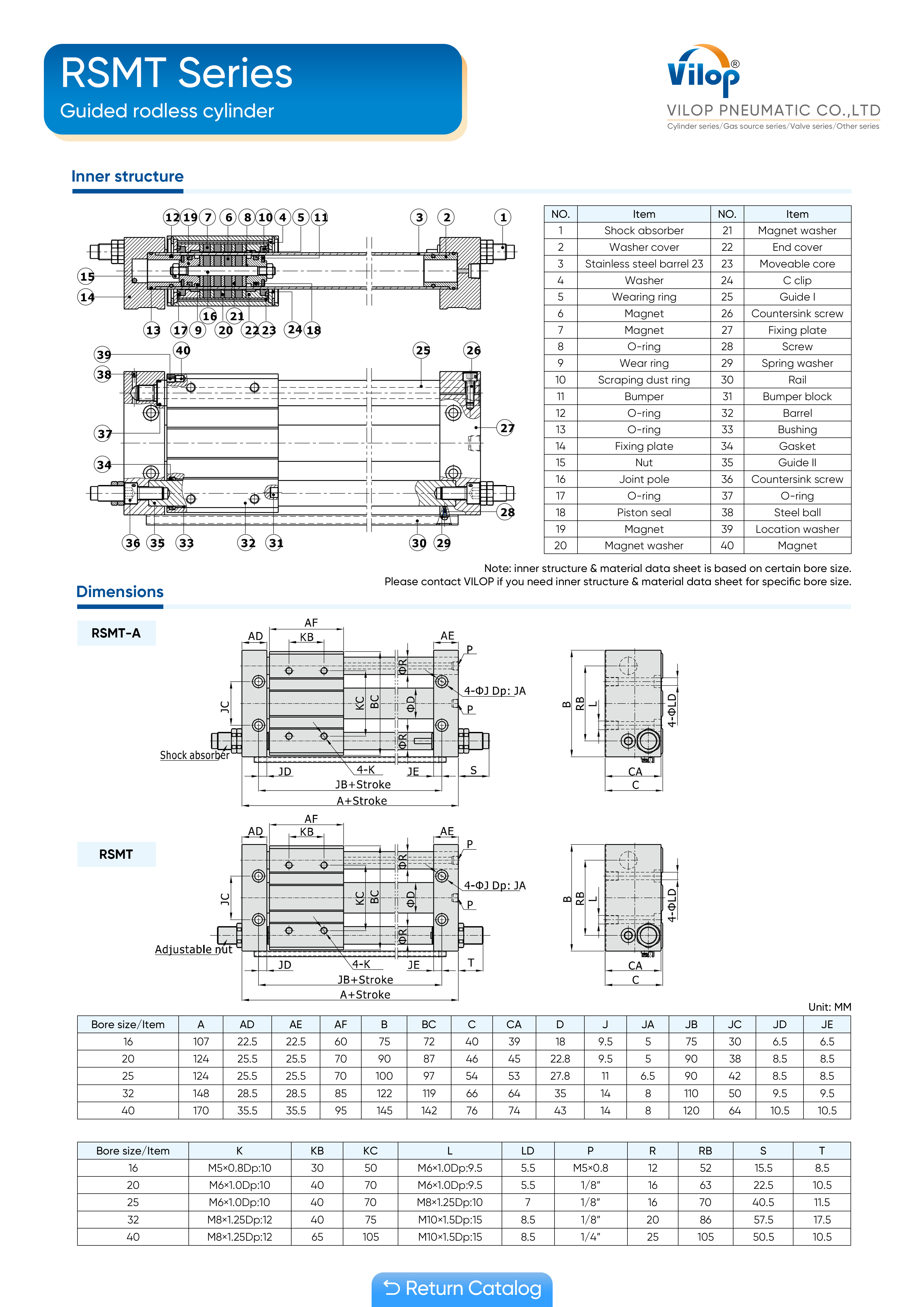

208209211

                  download the Catalog for More Products>>
