Views: 0 Author: VILOP Publish Time: 2025-11-26 Origin: Site

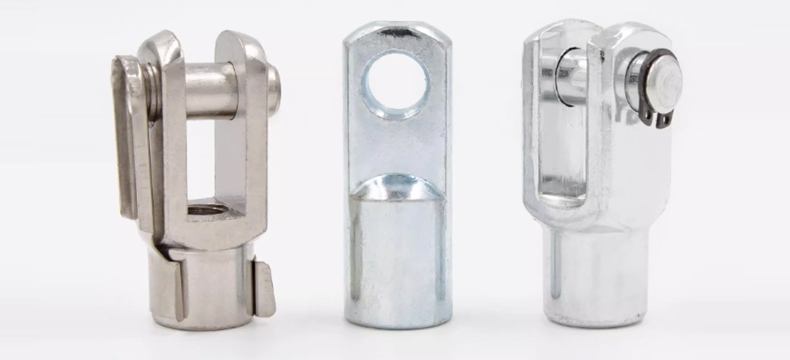

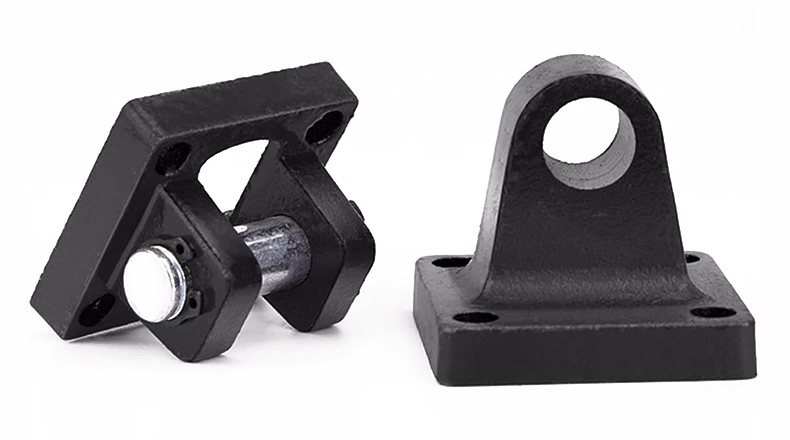

The service life of SC cylinders is directly related to their selection and matching, and incorrect accessory selection or working condition adaptation can lead to frequent failures. In basic configuration, CA single ear base is suitable for light and flexible scenarios, CB double ear base is suitable for heavy-duty high-precision equipment, and LB bracket is the optimal solution for narrow spaces. Among the key components, the Y-shaped floating joint can absorb installation errors, reduce piston rod stress, and extend the service life by more than 20%, especially suitable for multi rod mechanisms.
The selection of cylinder diameter needs to match the load, calculated according to "output force=cylinder diameter ² × 0.785 × working pressure", with a 10% margin reserved to avoid overload. The medium must be filtered through a filter element with a diameter of 40 μ m or more. Anti freezing devices should be installed in low-temperature environments, and high-temperature seals should be used in high-temperature conditions to ensure stable operation at 150 ℃.
In terms of maintenance, the non oil supply cylinder needs to be lubricated every 6 months, and the tail swing cylinder needs to be regularly lubricated with oil to the tailstock. The water separation filter should be checked daily and drained in a timely manner. If there is a leak during maintenance, first check the coaxiality of the piston rod, then check the wear of the seal, and when replacing, use original parts to ensure compatibility.
