SC63 standard 32 cylinder small pneumatic 40 high thrust SC50X25X50x75X100x200x300x500S

You are here: Home » Products » Standard Air Cylinder » SC63 standard 32 cylinder small pneumatic 40 high thrust SC50X25X50x75X100x200x300x500S

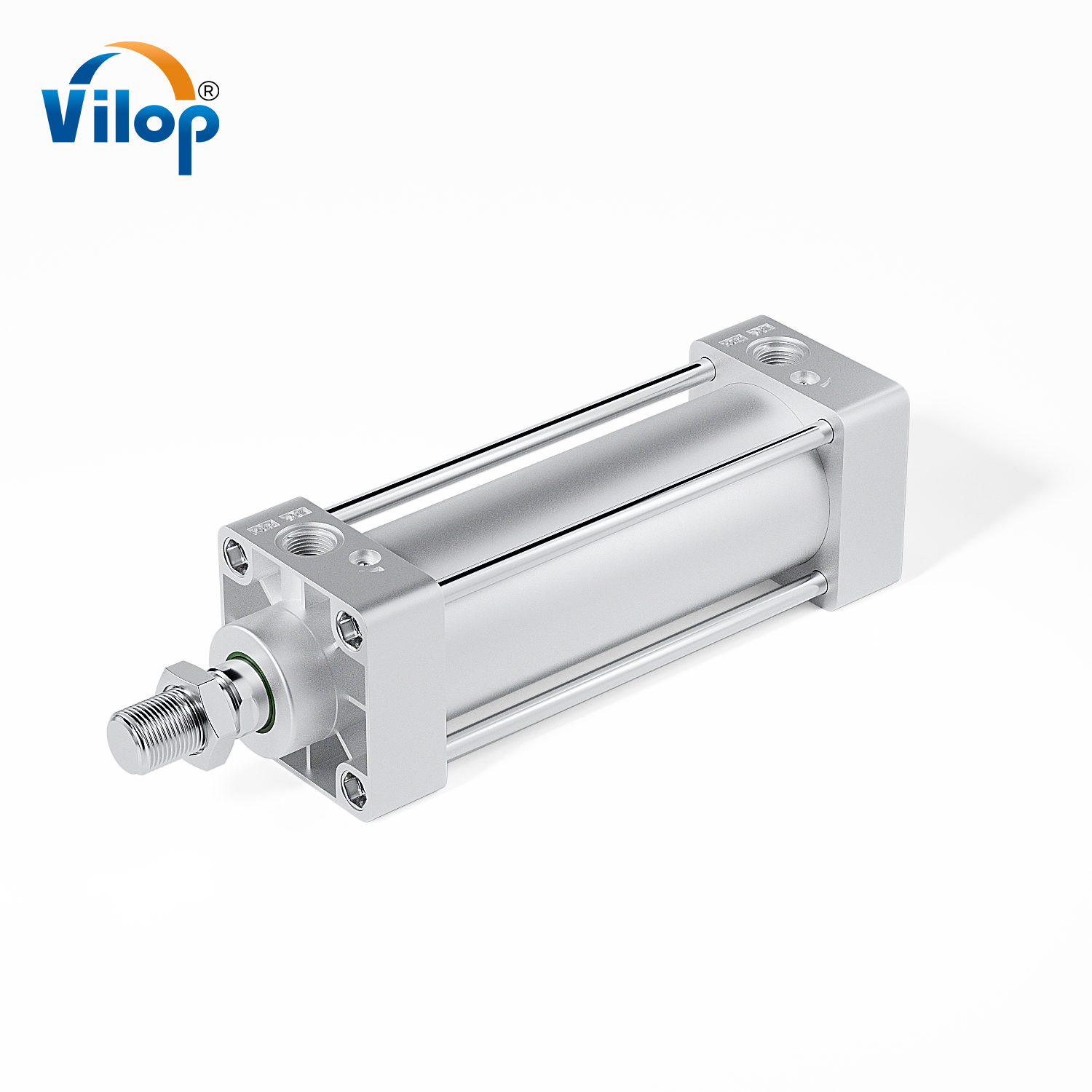

SC63 standard 32 cylinder small pneumatic 40 high thrust SC50X25X50x75X100x200x300x500S

1.Provided with adjustable cushion on both end covers to make sure the cylinder works very smoothly ,safely and with low noise.

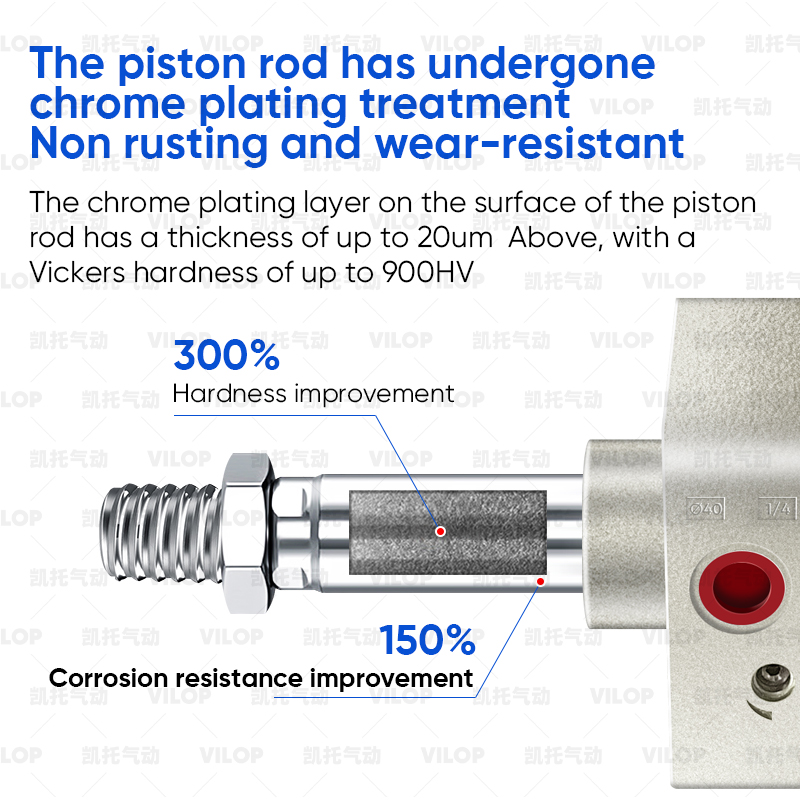

2.With self lubricating bearing ,the piston rod is lubrication free.

3.Magnet and sufficient fixing styles are available.

Model:
SC Standard Cylinder
Brand:
VILOP
Code:
SC

Size:	SC32-25 SC32-50 SC32-75 SC32-100 SC32-125 SC32-150 SC32-175 SC32-200 SC32-250 SC32-300 SC32-350 SC32-400 SC32-450 SC32-500 SC32-550 SC32-600 SC32-650 SC32-700 SC32-750 SC32-800 SC32-850 SC32-900 SC32-950 SC32-1000
Availability:

Quantity:



Inquire Add to Basket

Material	Aluminium	Weight	1-50kg
Working Medium	Clean Air	Showroom Location	United States, China
Proof Pressure	1.5 Mpa	Bore size	32/40/50/63/80/100mm
Operating Speed	50~800mm/s	Operating pressure	1～9.0Kgf/cm2
Operation	Double acting	Port size	G1/8' G1/4' G3/8' G1/2' G3/4' G1'
Warranty	1.5 years	Mountings	FA FB CA CB LB TC TC-M

SC / SU Series Standard Cylinder

1.Provided with adjustable cushion on both end covers to make sure the cylinder works very smoothly ,safely and with low noise.

2.With self lubricating bearing ,the piston rod is lubrication free.

3.Magnet and sufficient fixing styles are available.

----- Internal Structure -----

Vilop-Catalog3.0-++-¦-²_-¦+µ_055

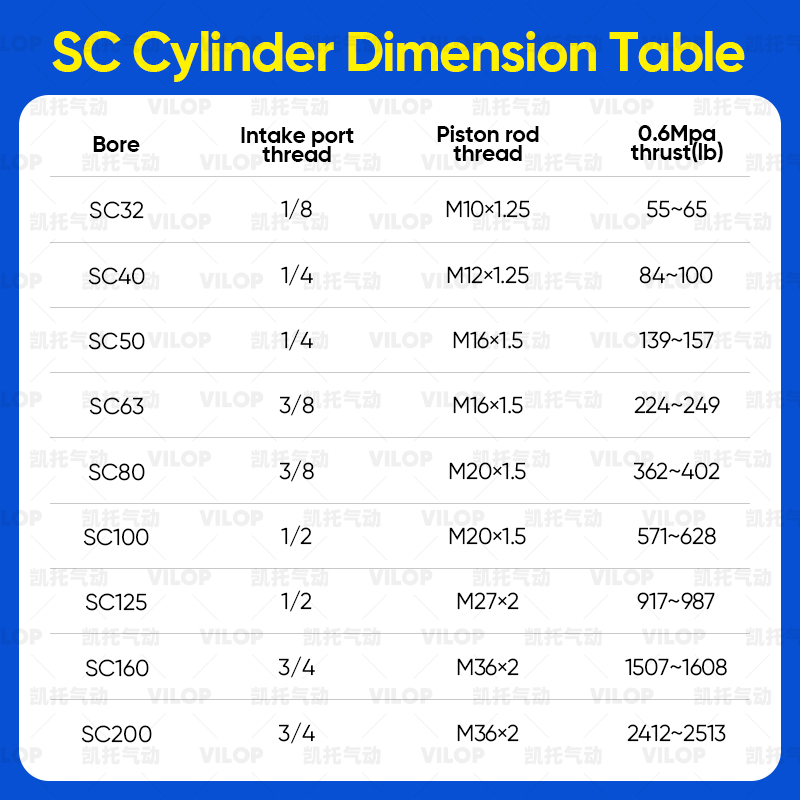

----- Overall Dimension -----

Vilop-Catalog3.0-++-¦-²_-¦+µ_054

download the Catalog for More Products>>
