Views: 0 Author: VILOP Publish Time: 2026-03-07 Origin: Self written
Pneumatic cylinders are widely used in industrial automation to convert compressed air into linear motion. Among the many types of pneumatic actuators, single acting cylinders and double acting cylinders are the most common.
Although both perform similar functions, their working principles, structure, and applications are quite different. Choosing the right type of cylinder can improve machine efficiency and reduce maintenance costs.

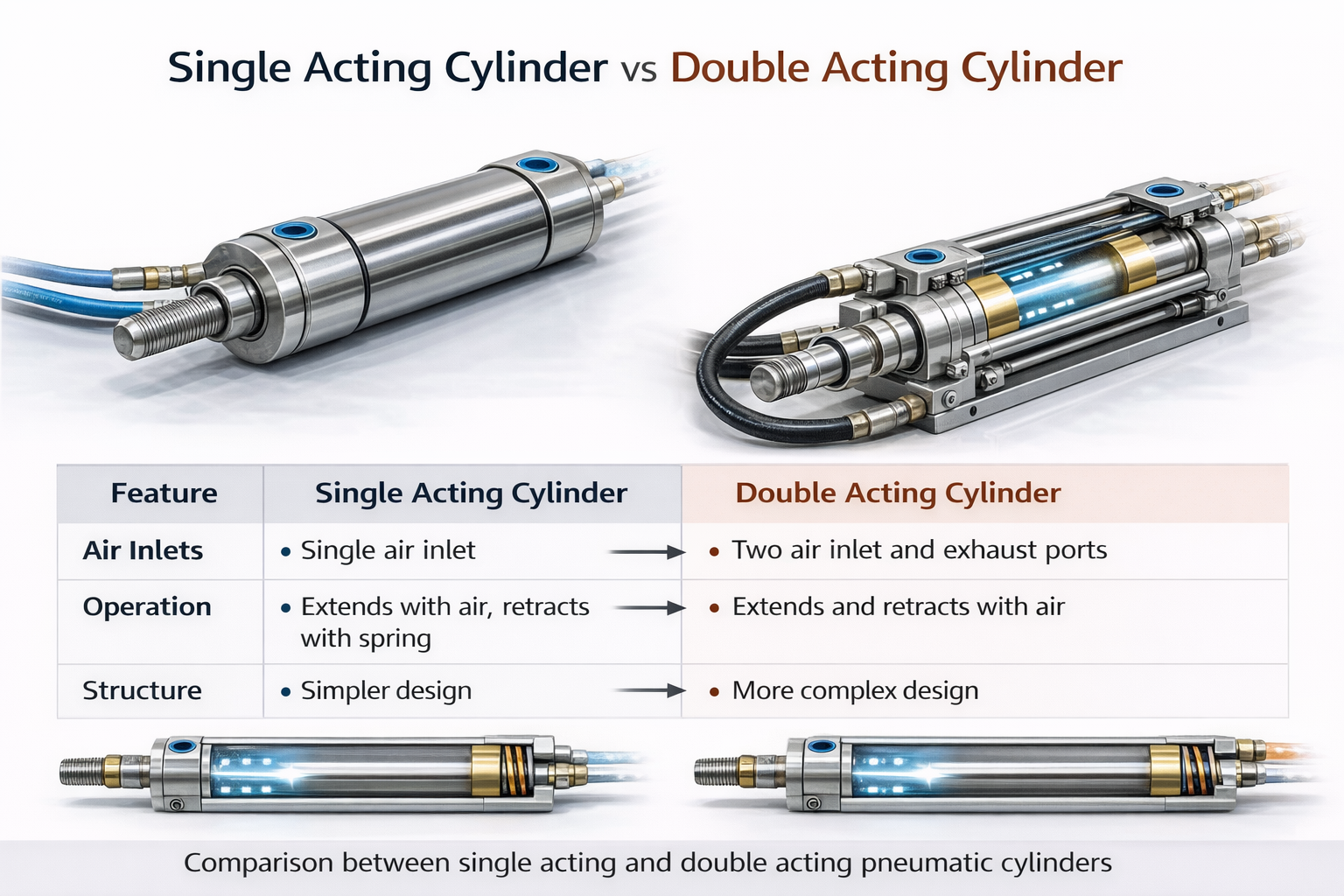

In this article, we compare single acting vs double acting pneumatic cylinders, including their working principles, advantages, and typical applications.

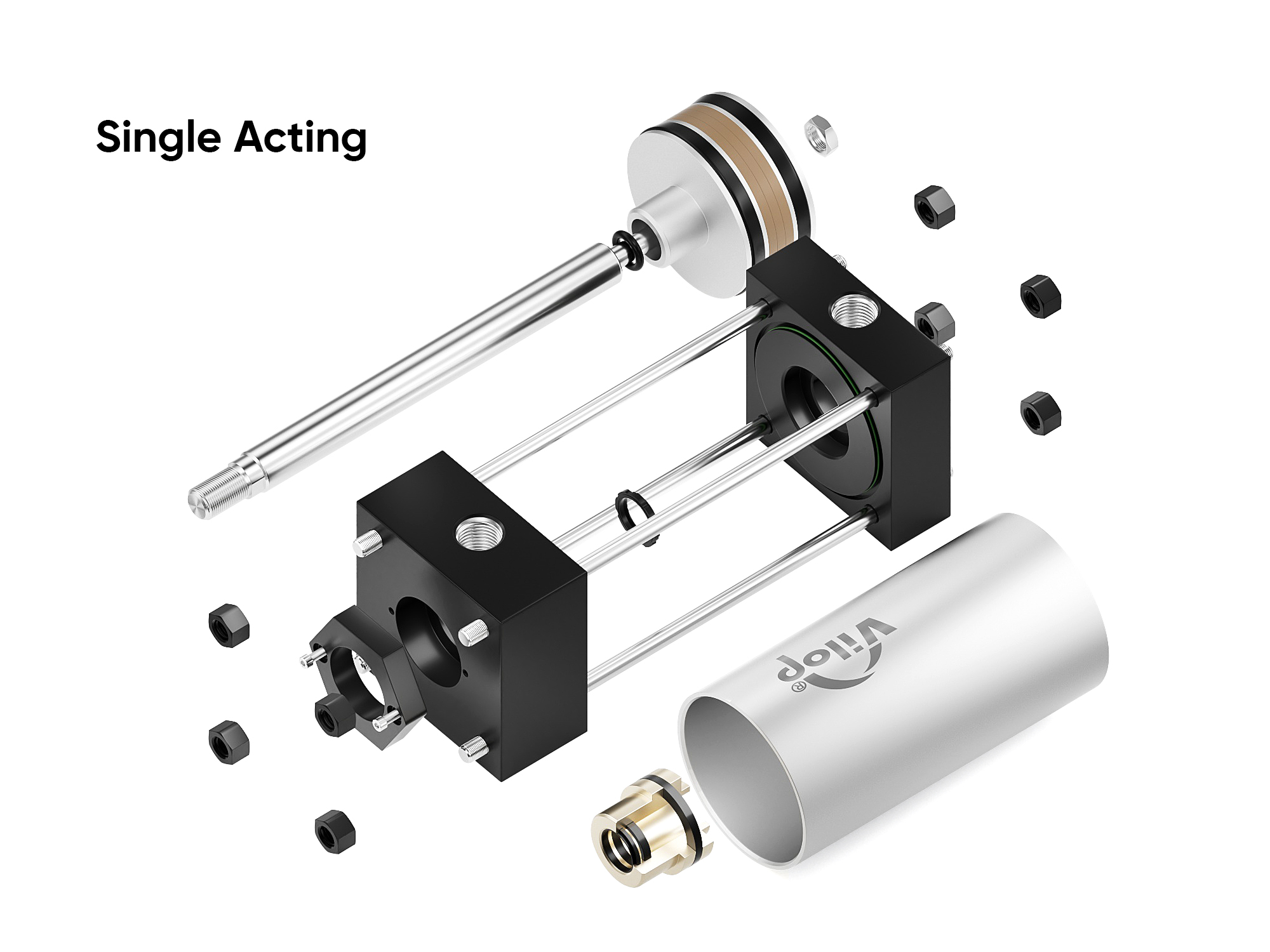

A single acting pneumatic cylinder uses compressed air to move the piston in only one direction. The return movement is usually achieved by a built-in spring or external force.
When compressed air enters the cylinder, it pushes the piston and extends the piston rod. Once the air pressure is released, the spring pushes the piston back to its original position.
Because of their simple design, single acting cylinders are commonly used in light-duty applications.

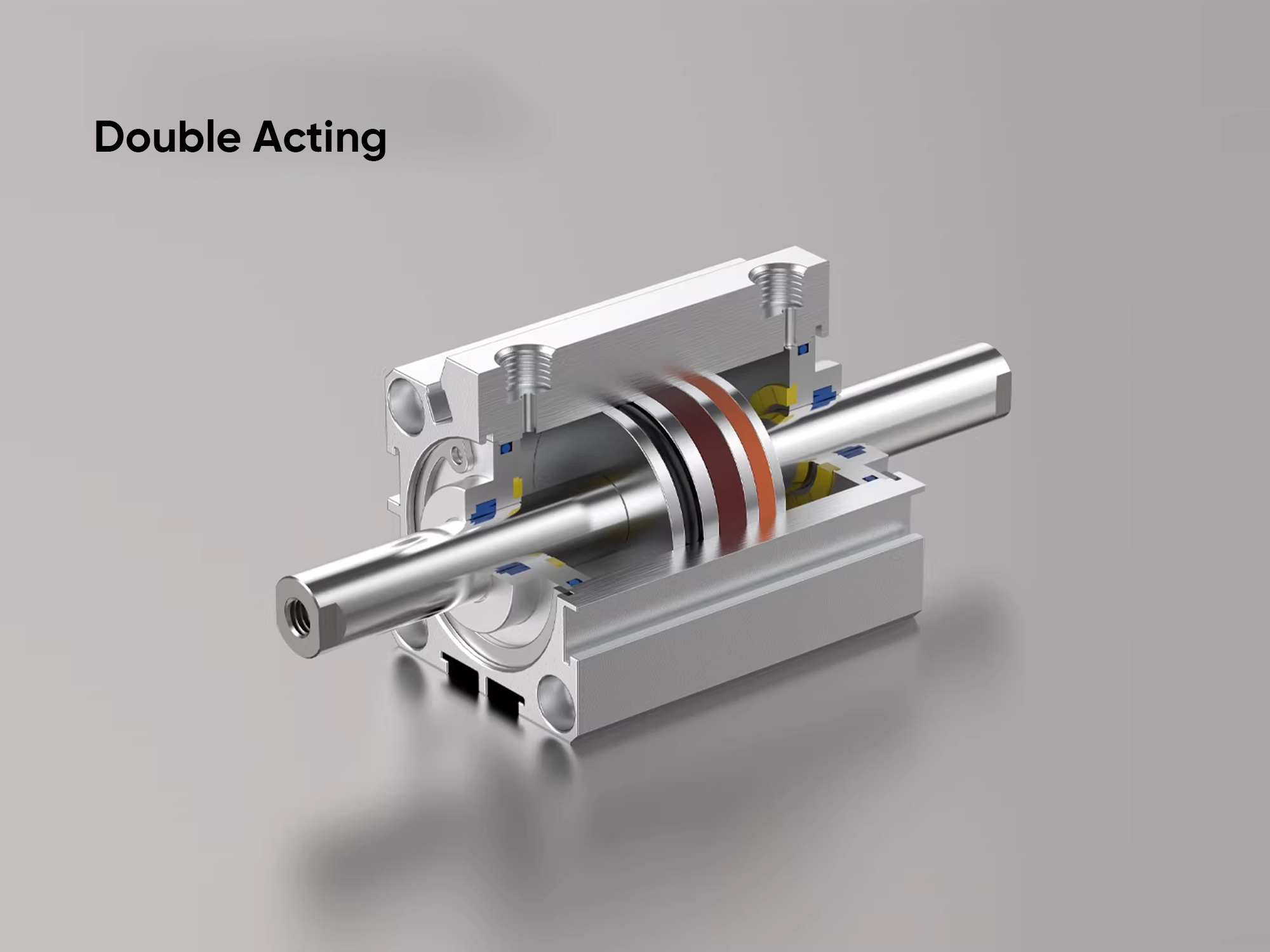

A double acting pneumatic cylinder uses compressed air to move the piston in both directions. Air pressure is applied alternately to each side of the piston to control extension and retraction.
Unlike single acting cylinders, double acting cylinders do not rely on springs. This design allows them to provide more consistent force and better control.
Double acting cylinders are widely used in automation systems, robotics, and industrial machinery.
Choosing the right cylinder depends on the application requirements.
Choose single acting cylinders if:
The motion is required in only one direction
Space is limited
The load is relatively light
Choose double acting cylinders if:
Motion control is required in both directions
Higher force is needed
Continuous operation is required
Both single acting and double acting pneumatic cylinders play important roles in industrial automation. Single acting cylinders offer a simple and cost-effective solution for light-duty tasks, while double acting cylinders provide greater control and power for more demanding applications.
Understanding the differences between these two types of cylinders can help engineers and manufacturers choose the most suitable actuator for their equipment.
