TN/TDA Series Pneumatic Parts Double Rod Cylinder Long Stroke Pneumatic Linear Actuator
You are here: Home » Products » Guided Thruster Air Cylinder » TN/TDA Series Pneumatic Parts Double Rod Cylinder Long Stroke Pneumatic Linear Actuator

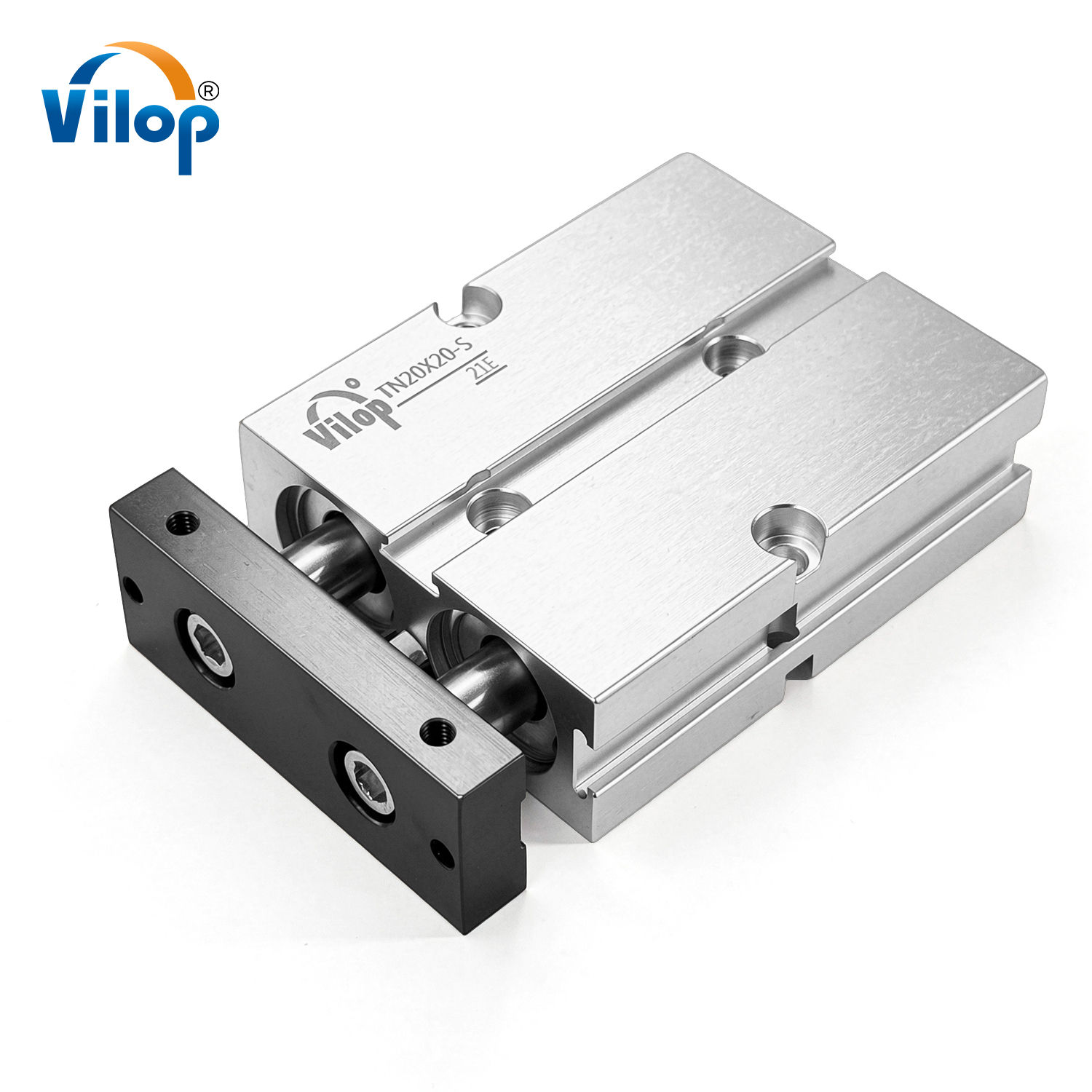

TN/TDA Series Pneumatic Parts Double Rod Cylinder Long Stroke Pneumatic Linear Actuator

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

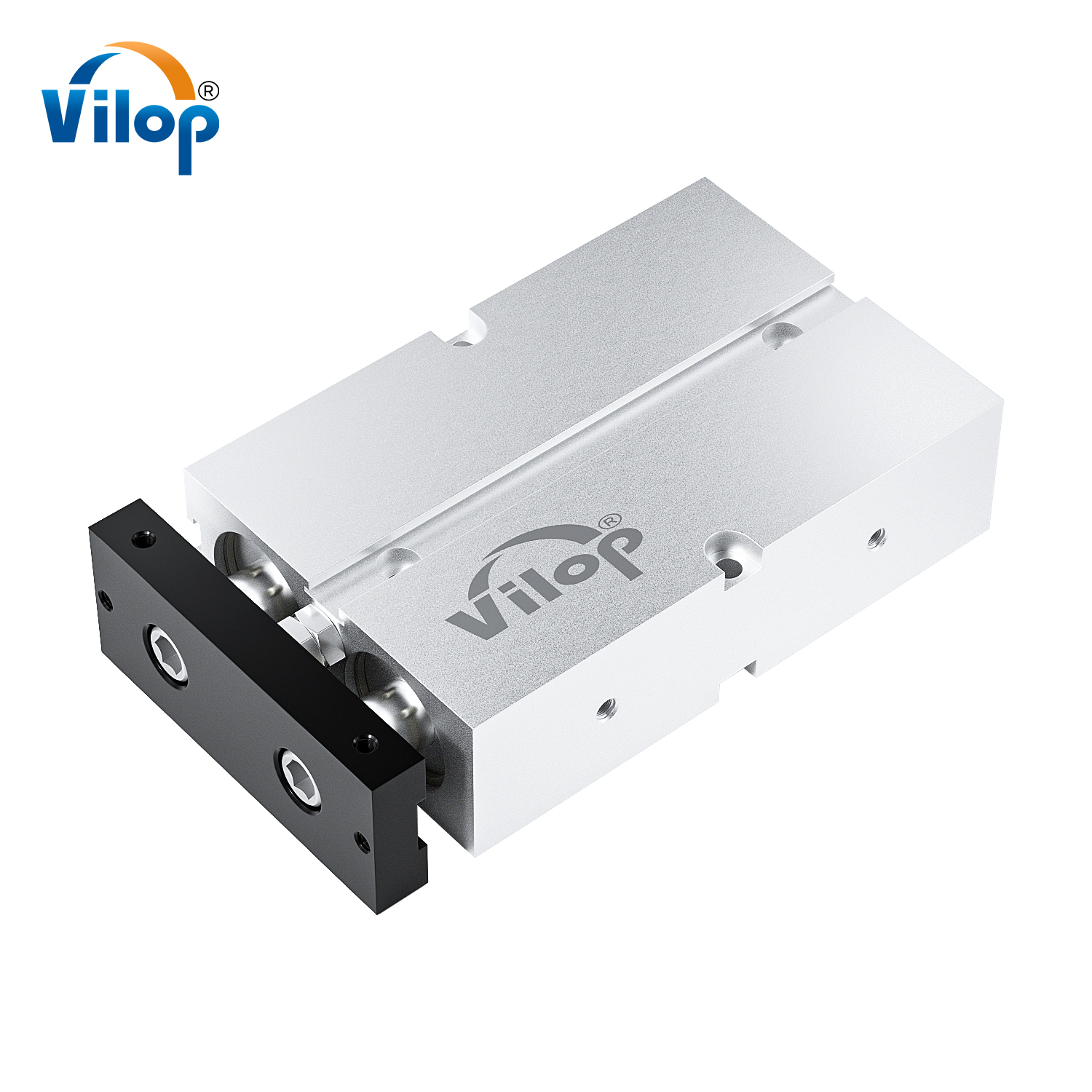

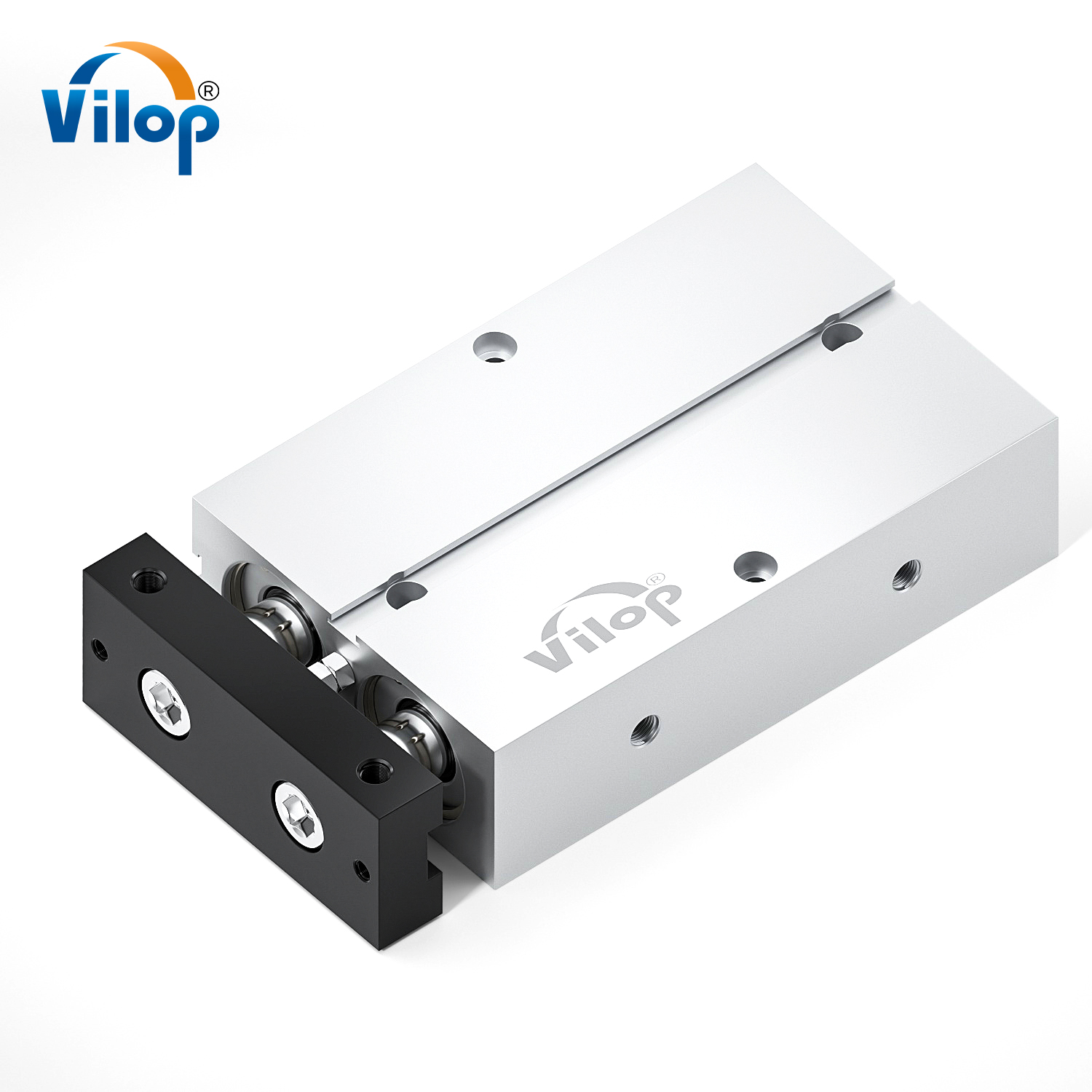

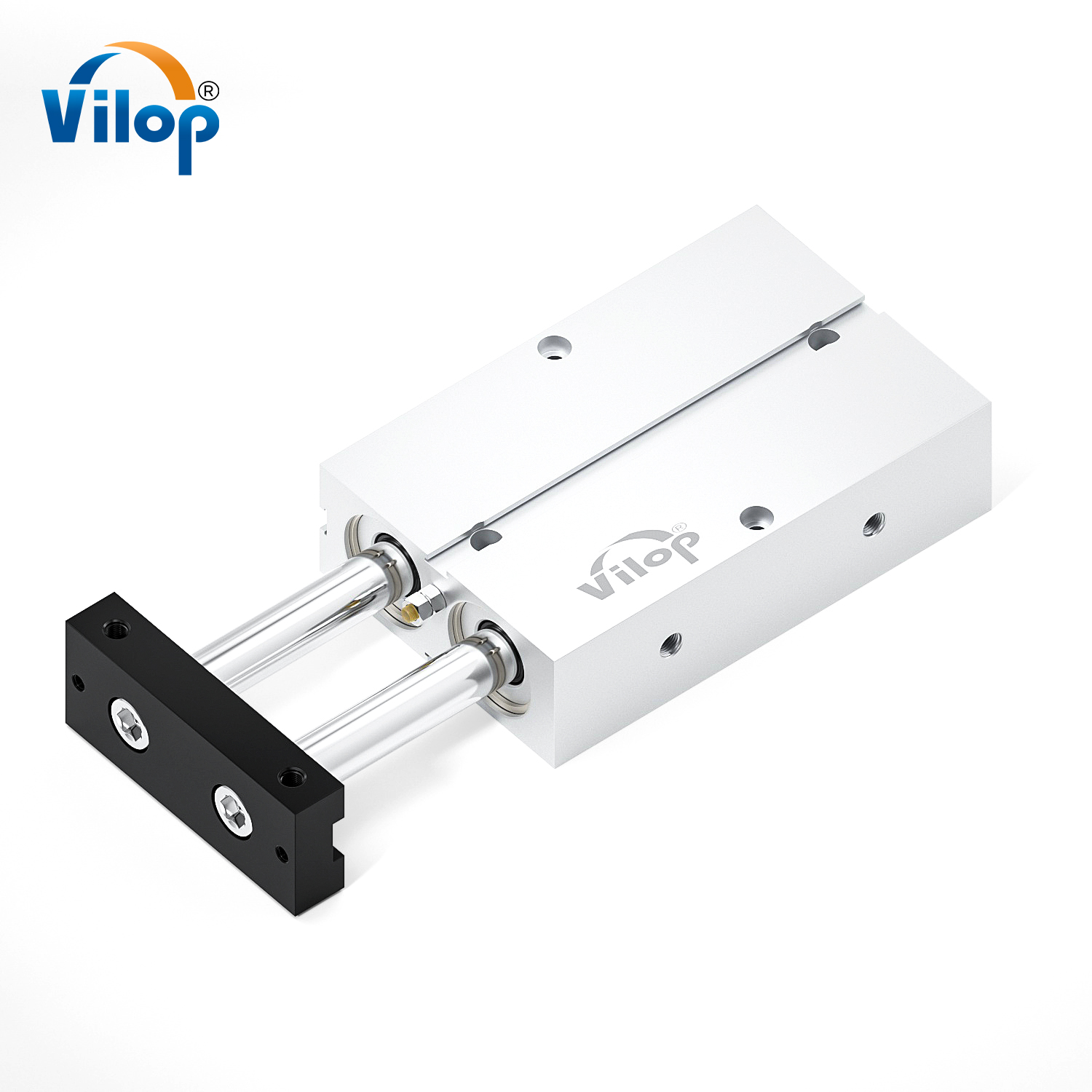

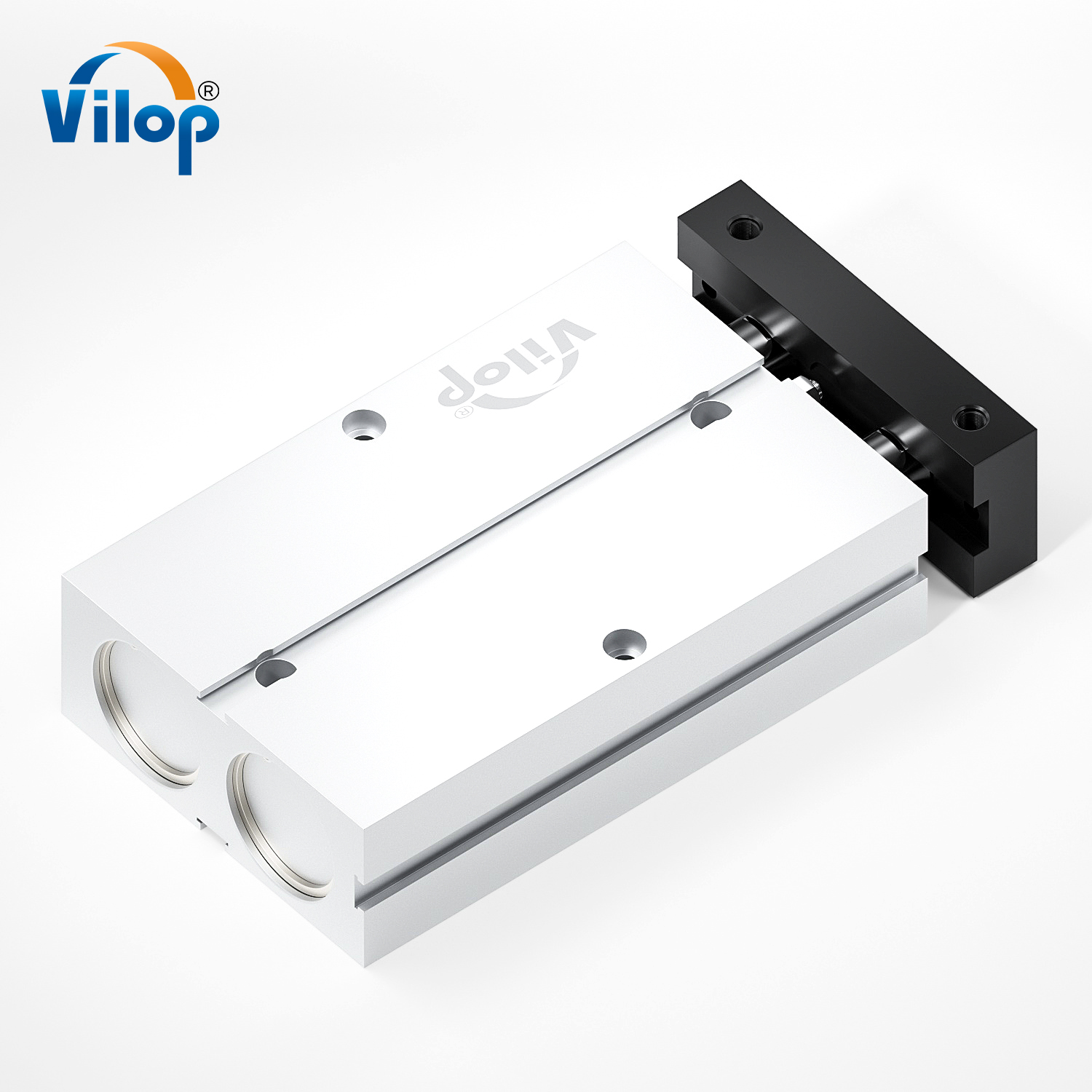

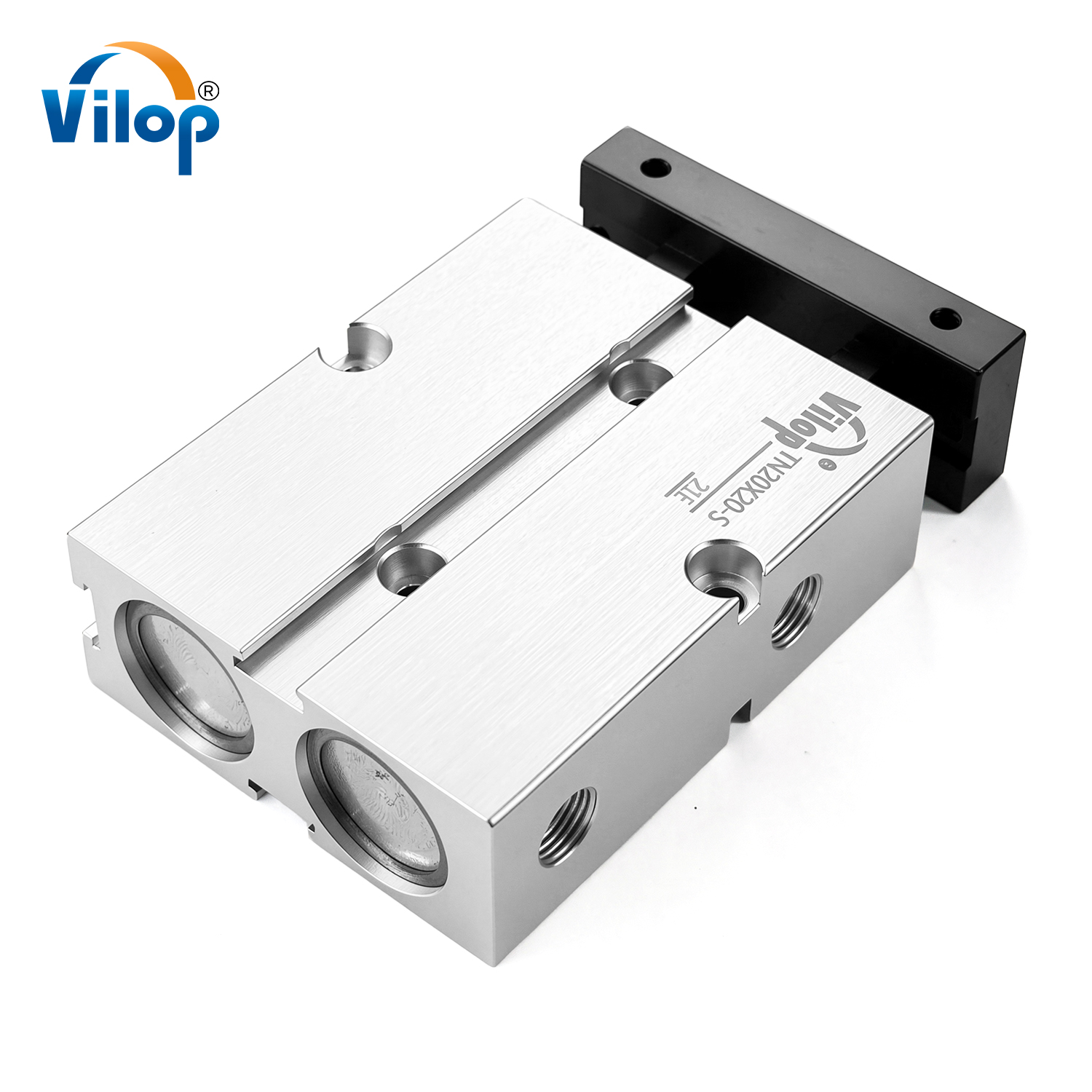

Double-rod compact cylinder for improved rigidity and better resistance to bending/twisting.
Helps reduce rod deflection and premature seal wear caused by misalignment.
For heavy side loads, consider a guided cylinder/slide table solution.



Fast contact(click):

Whatapp:15361757135

E-Mail: marketing@viloppneumatic.com

  • TN

  • VILOP

  • TN

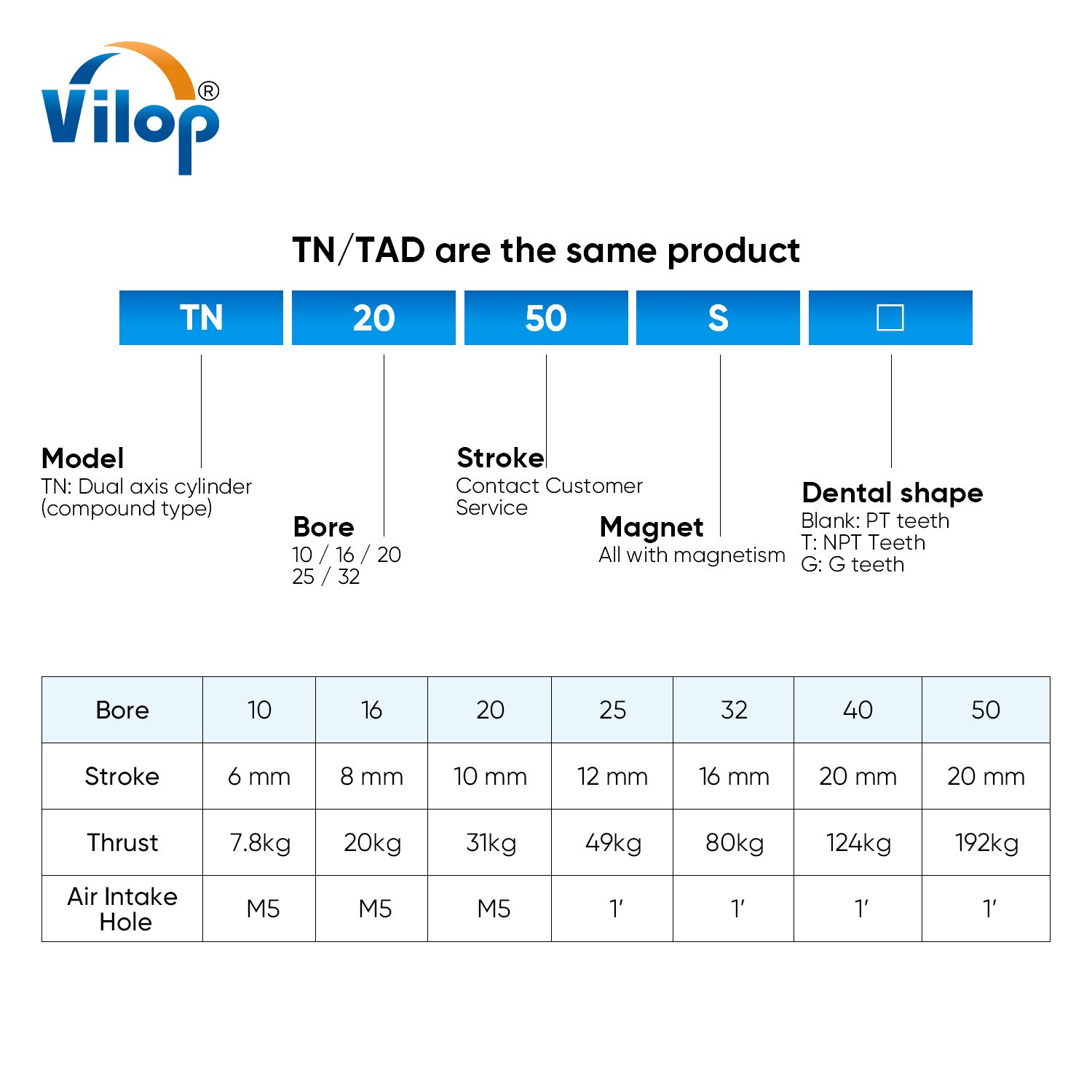

Bore:
Stroke:
Custom stroke:
SKU:
Availability:
Quantity:

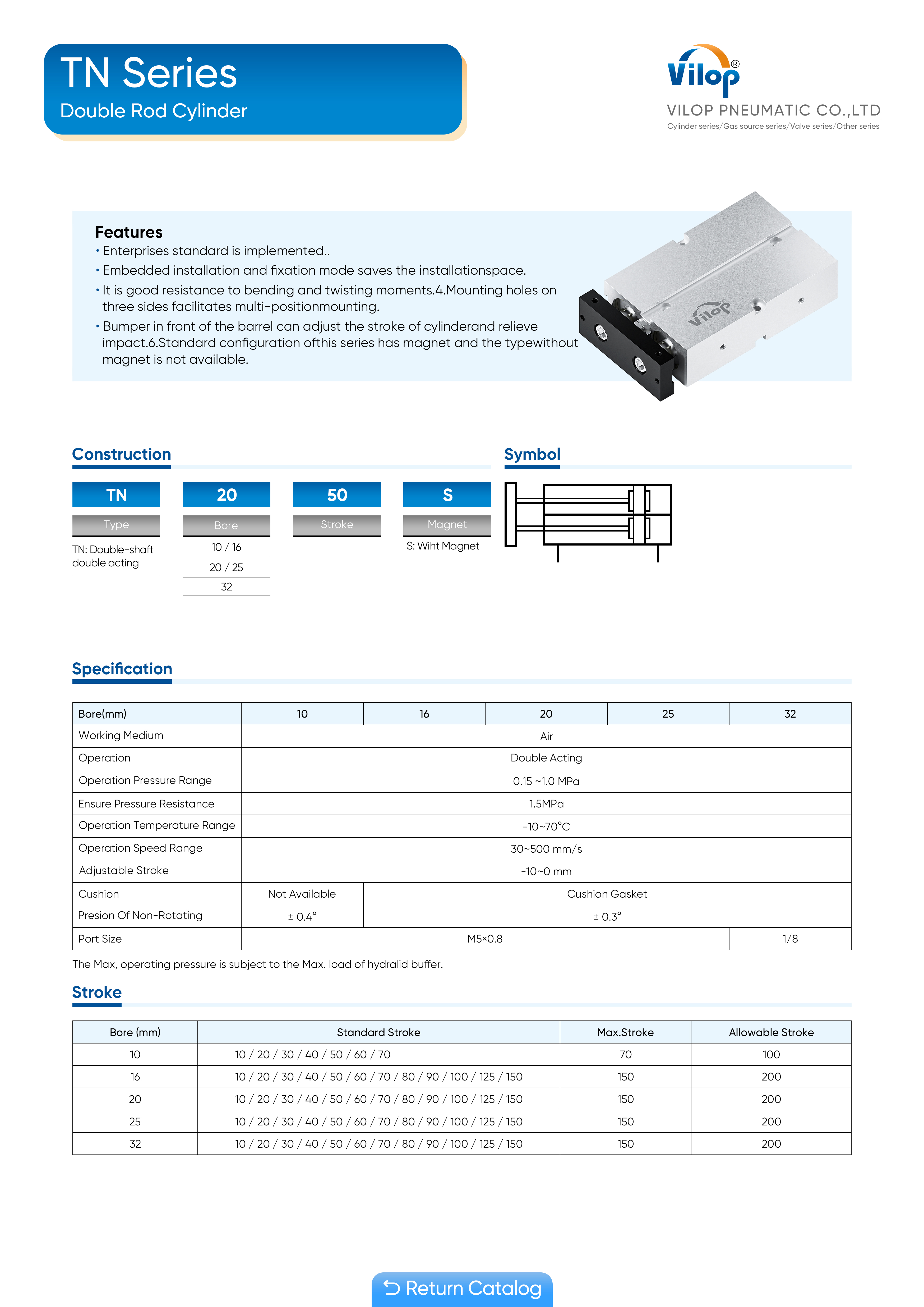

Material Aluminium Weight 1-50kg
Working Medium Clean Air Showroom Location United States, China
 Operation Double acting
Operation Temperature Range 0~70 ℃
 Operation pressure range 0.1~0.9 MPa Adjustable Stroke  -10~0 mm
Ensure Pressure Resistance
1.35 MPa Port Size M5 x 0.8 PT 1/8″


Air Soruce Treatment Units

Air treatment units are used for treating air source from air compressor. It includes three parts with different function:air filter for filtering the dirt and particles from air source; regulator for regulating the pressure of air source; lubricator for oil lubrication.


Side Load & Seal Wear (Common Issue) — How to Choose the Right Solution


TN/compact cylinder is more suitable for axial push-pull; lateral forces will accelerate the wear of the guide/seal

Solution classification:

▪ Slight side loading: Improve concentricity/increase support/reduce friction

▪ Obvious side loading: It is recommended to choose a guided cylinder / slide table

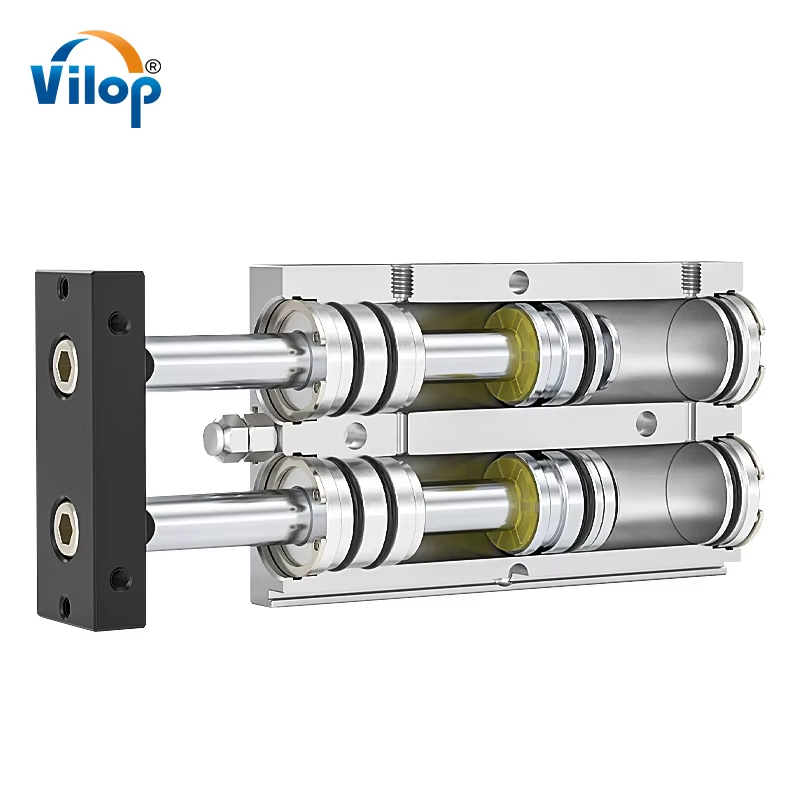

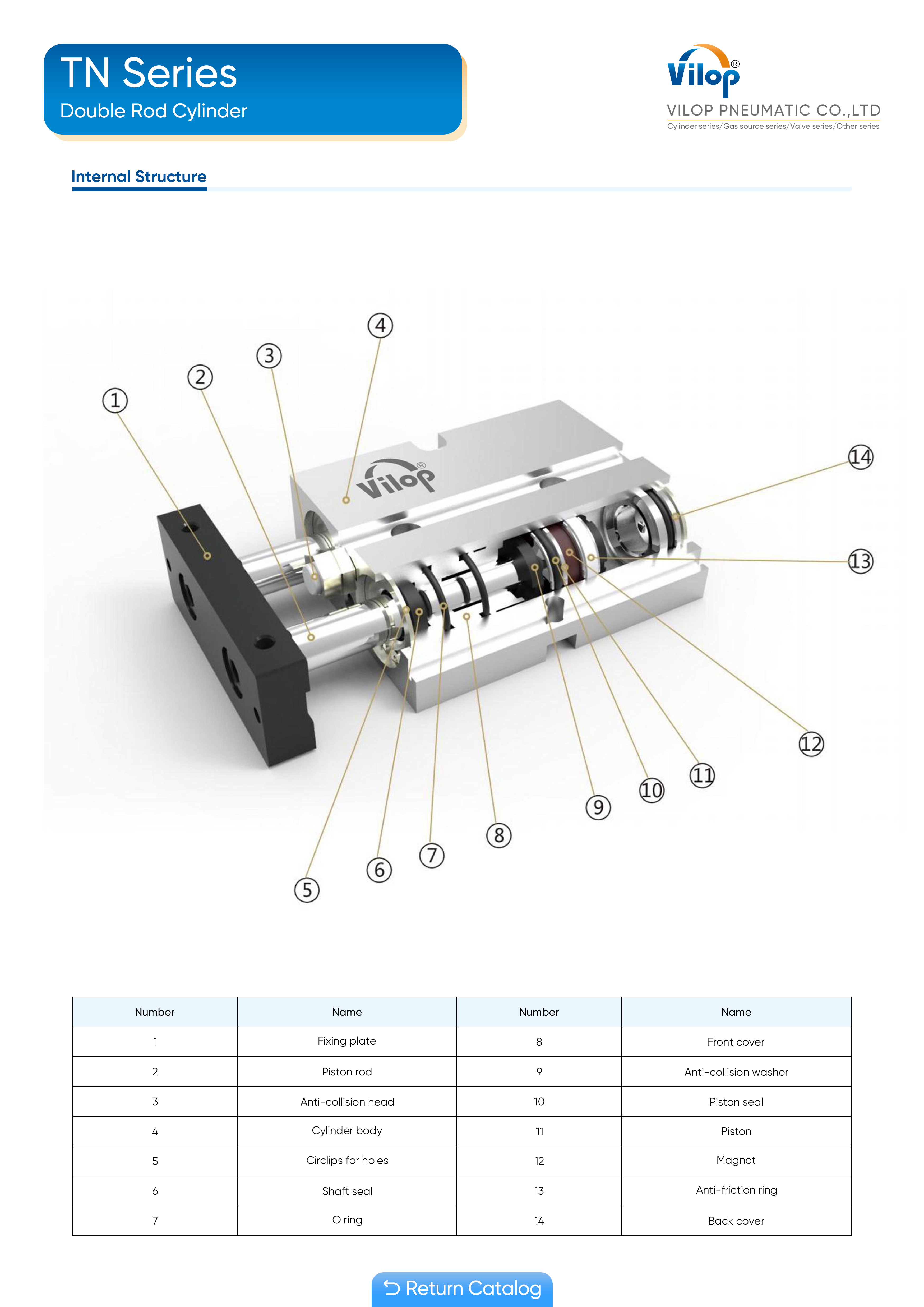

----- Internal Dimension -----68

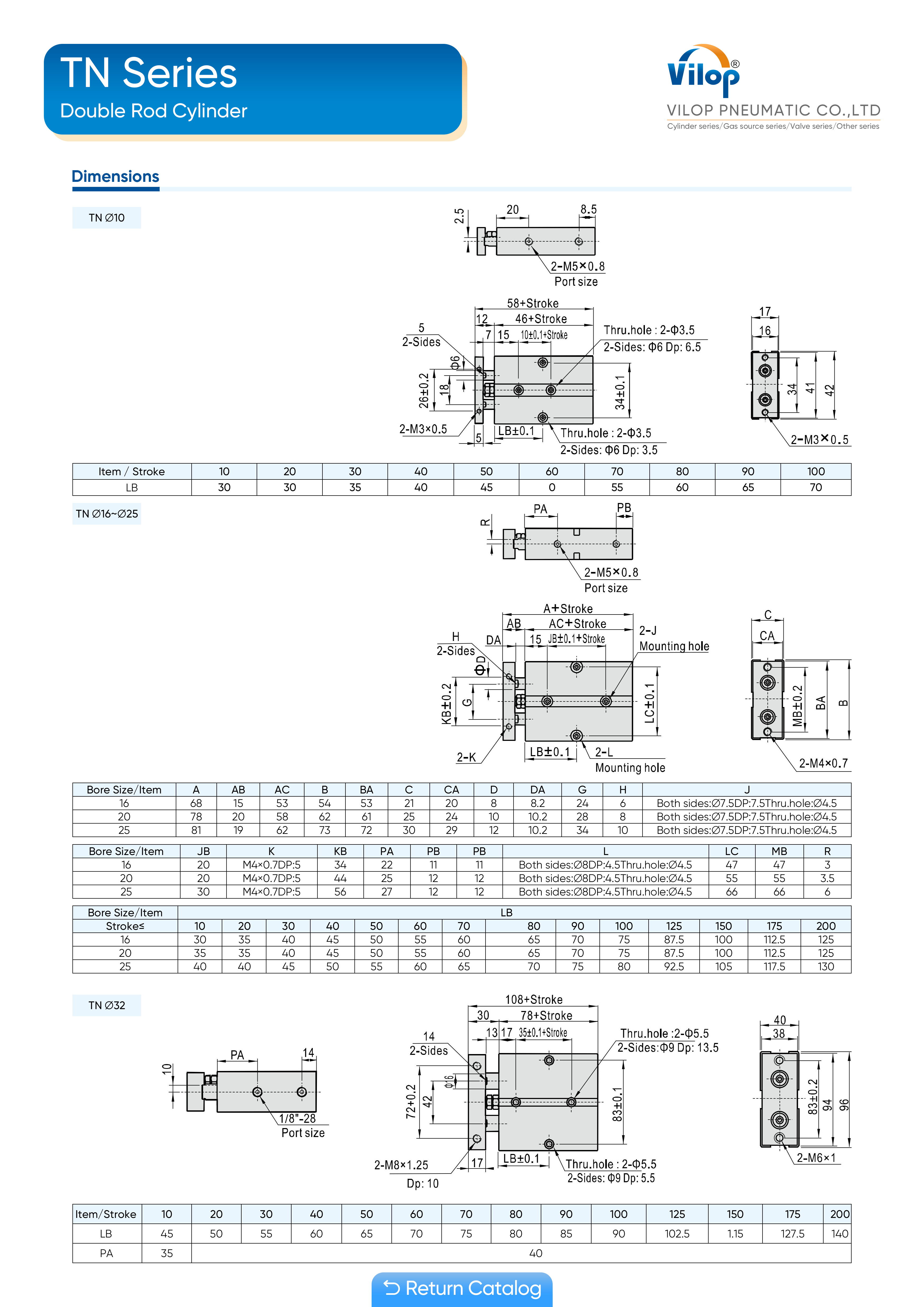

----- Overall Dimension -----697071

download the Catalog for More Products>>
