MHF2 Pneumatic Two Finger Gripper Parallel Type Bore Piston Cylinder in 8D 12D 16D 20D 25D Sizes for Farm Industries
You are here: Home » Products » Compact Cylinder » MHF2 Pneumatic Two Finger Gripper Parallel Type Bore Piston Cylinder in 8D 12D 16D 20D 25D Sizes for Farm Industries

MHF2 Pneumatic Two Finger Gripper Parallel Type Bore Piston Cylinder in 8D 12D 16D 20D 25D Sizes for Farm Industries

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

1.Thickened cylinder body hard oxidation process.

2. High strength air claw clamping is stable, with a large holding torque and higher work efficiency.

3. Finger cylinder has a long stroke, can grip large diameter objects, high-precision claw head, and higher flexibility.

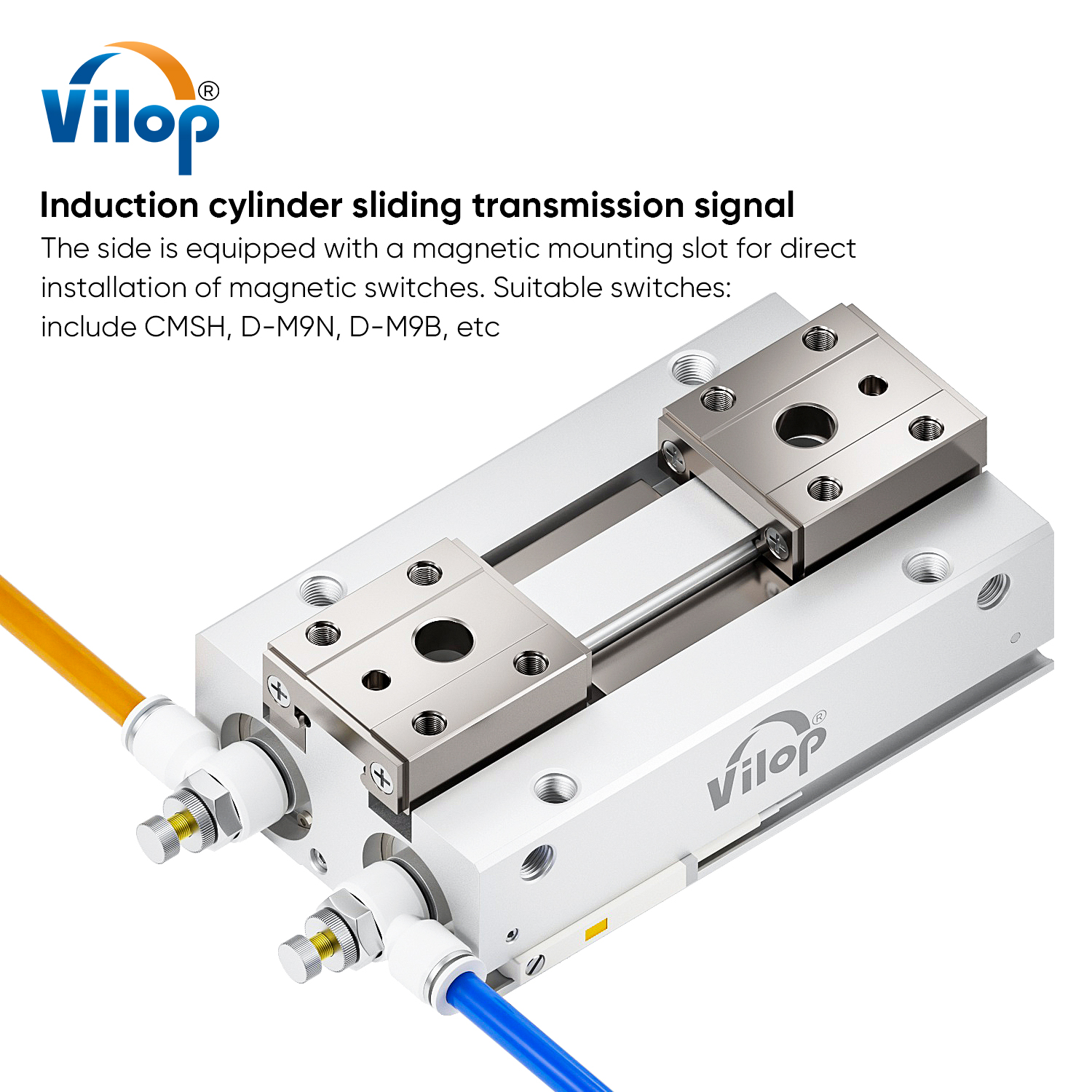

4. Built in magnetic ring can be paired with magnetic switch.

5. Widely applicable in multiple scenarios.

6. Gasket use anti-collision gasket structure​.

7. Barrel appearance is same with SMC new type-MHY2 series, easy to install the sensor and save material.

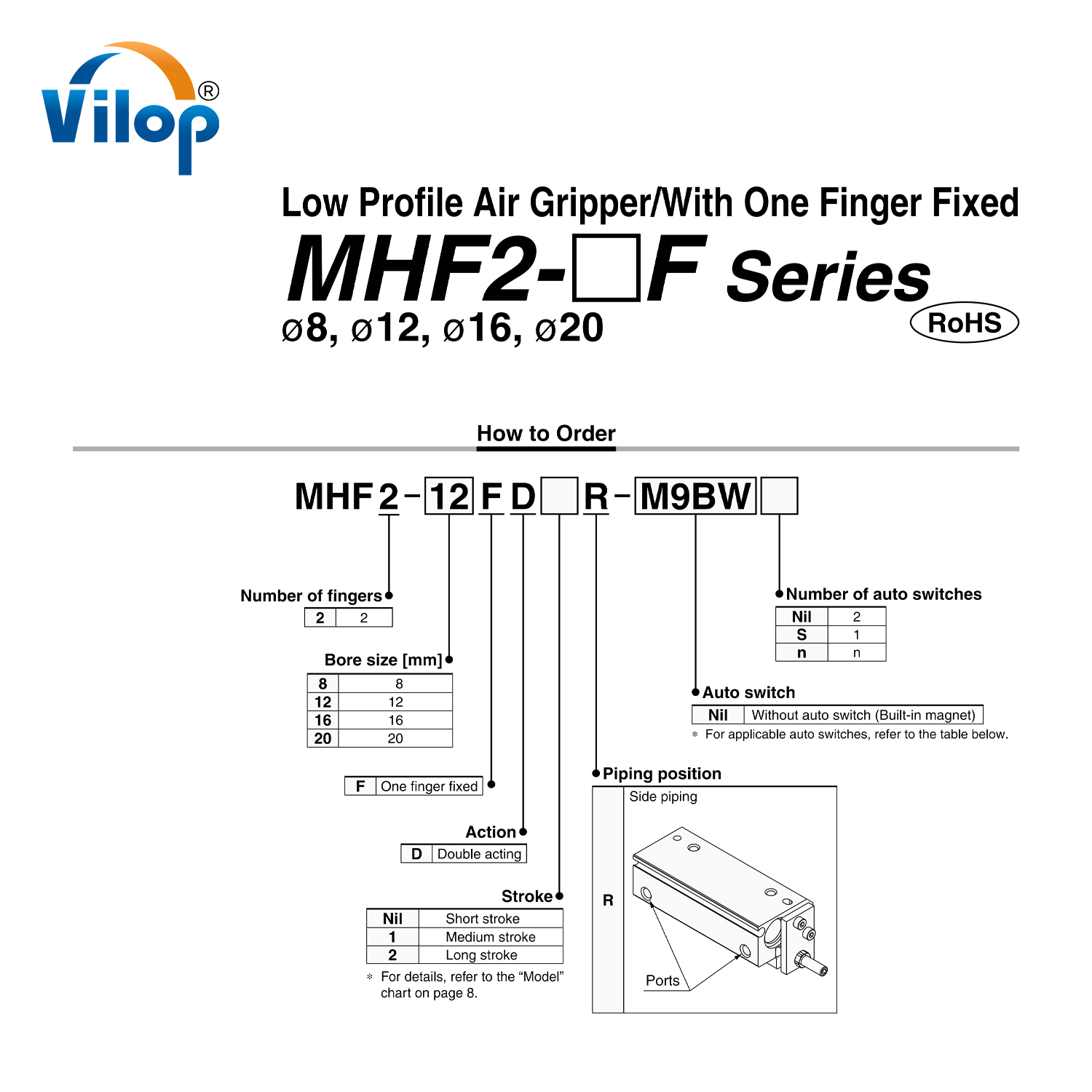

  • MHF2

  • VILOP

  • MHF2

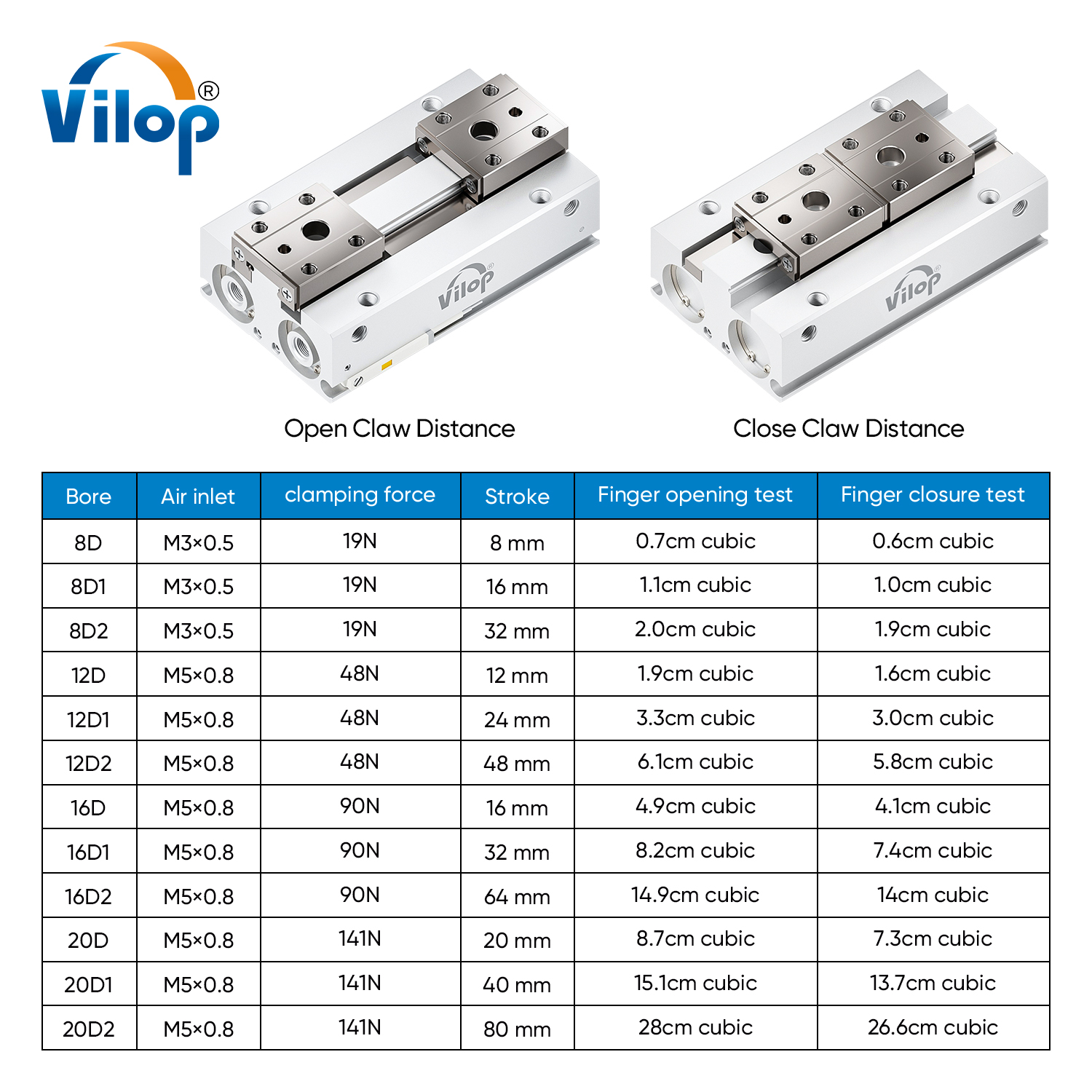

Size:
MHF2-8D
MHF2-8D
MHF2-8D1
MHF2-8D1
MHF2-8D2
MHF2-8D2
MHF2-12D
MHF2-12D
MHF2-12D1
MHF2-12D1
MHF2-12D2
MHF2-12D2
MHF2-16D
MHF2-16D
MHF2-16D1
MHF2-16D1
MHF2-16D2
MHF2-16D2
MHF2-20D
MHF2-20D
MHF2-20D1
MHF2-20D1
MHF2-20D2
MHF2-20D2
SKU:
Availability:
Quantity:


Material Aluminum Alloy Weight 1-10kg
Working Medium Clean Air Showroom Location United States, China
Proof Pressure 0.15~0.7Mpa
Bore size 8D/12D/16D/20D/25D
Operating Speed  50~800mm/s Operating pressure Double Acting 0.15~0.7MPa
Operation

Double acting


Port size
Mountings
M3*0.5,M5*0.8
Warranty 1.5 years

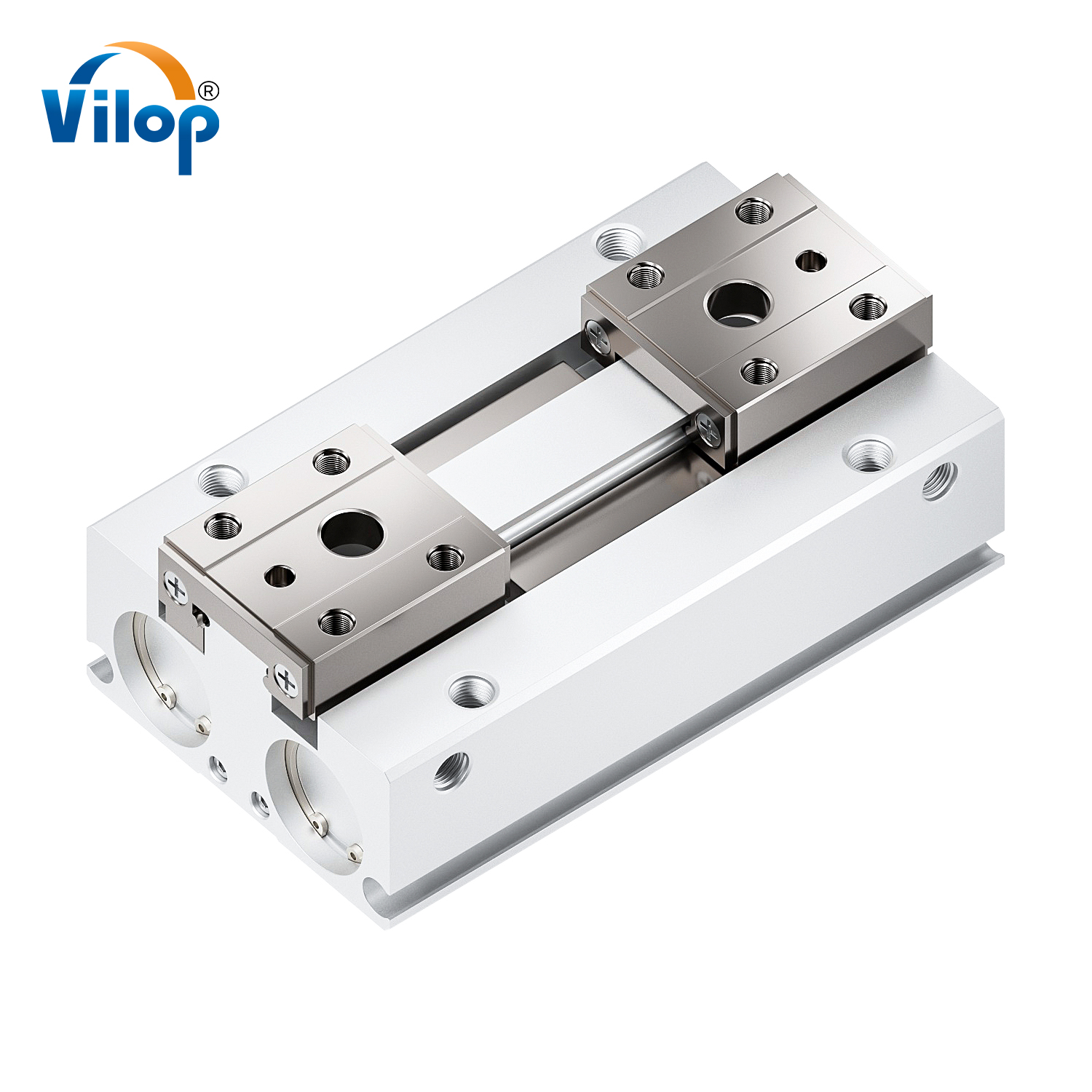

MHF2 Finger cylinder

1.Thickened cylinder body hard oxidation process.
2. High strength air claw clamping is stable, with a large holding torque and higher work efficiency.
3. Finger cylinder has a long stroke, can grip large diameter objects, high-precision claw head, and higher flexibility.
4. Built in magnetic ring can be paired with magnetic switch.
5. Widely applicable in multiple scenarios.
6. Gasket use anti-collision gasket structure.

7. Barrel appearance is same with SMC new type-MHF2 series, easy to install the sensor and save material.

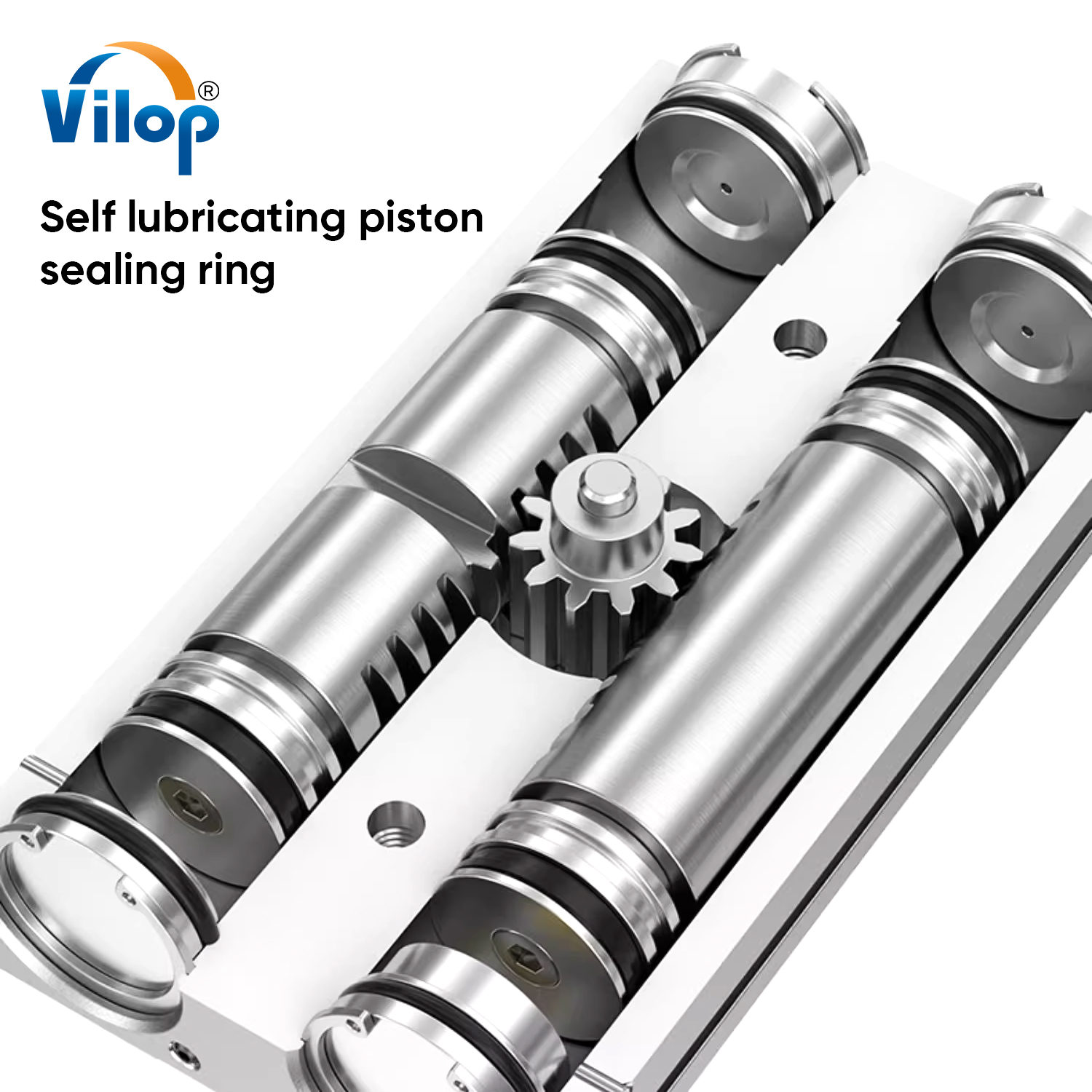

----- Internal Structure -----

1

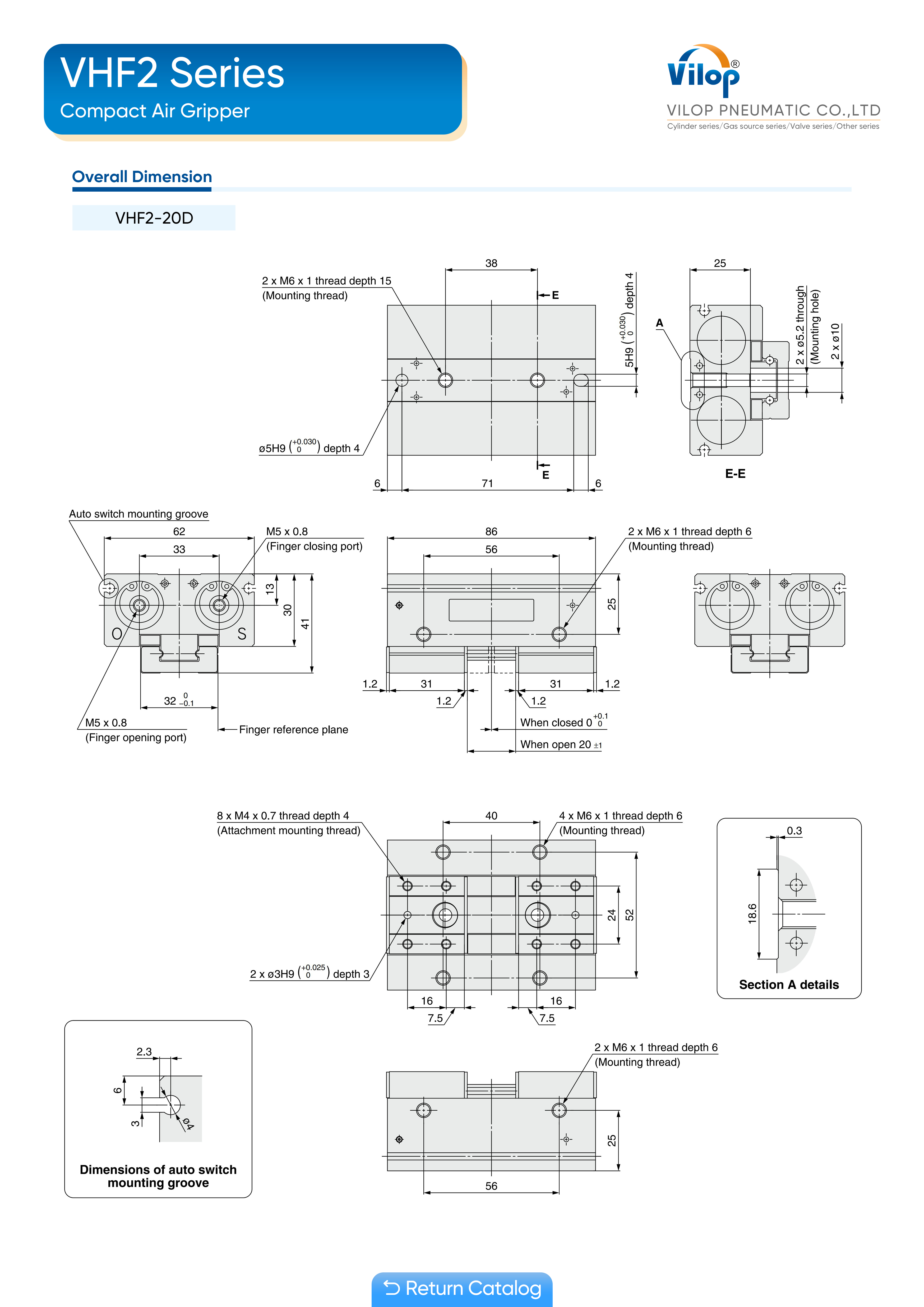

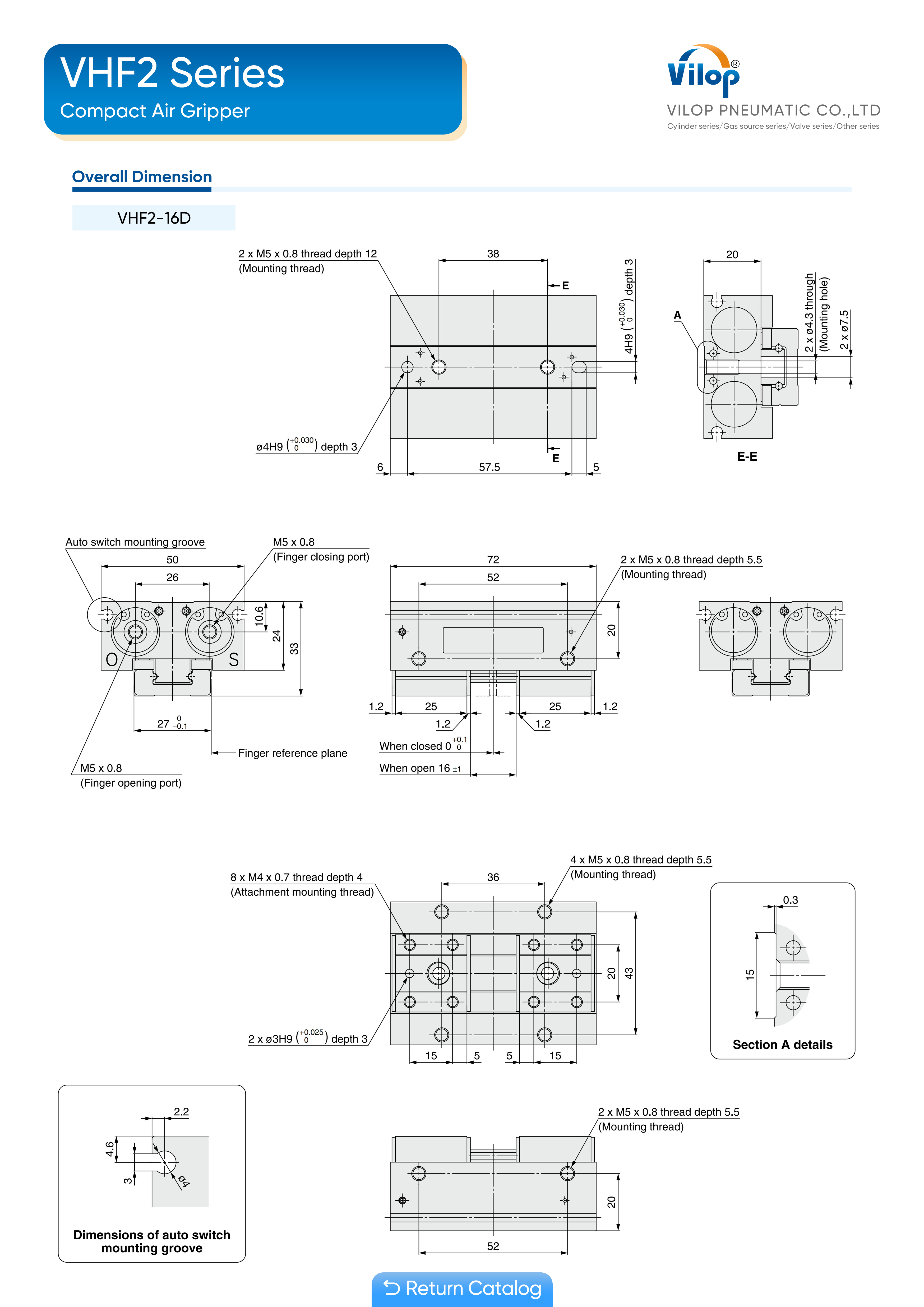

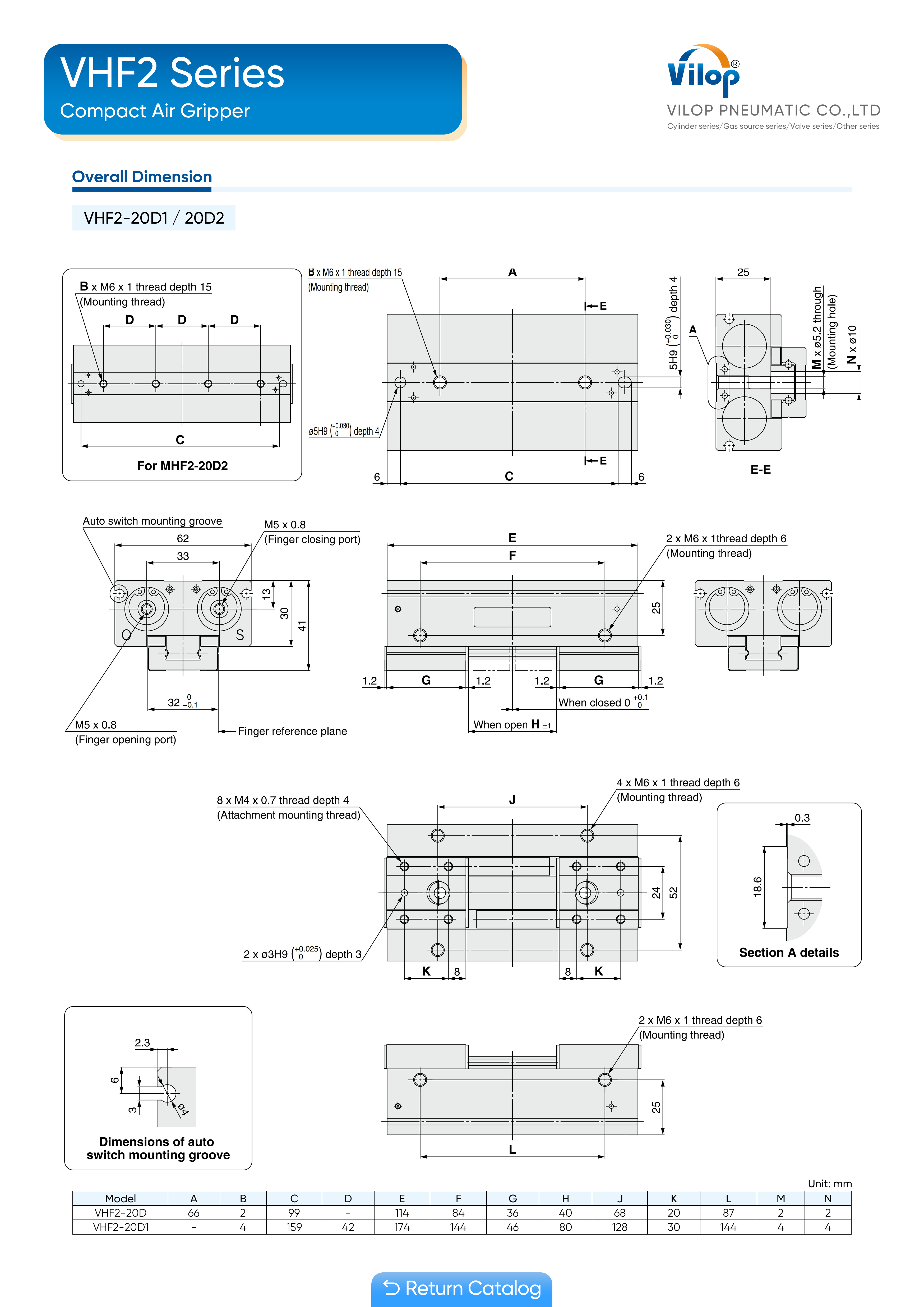

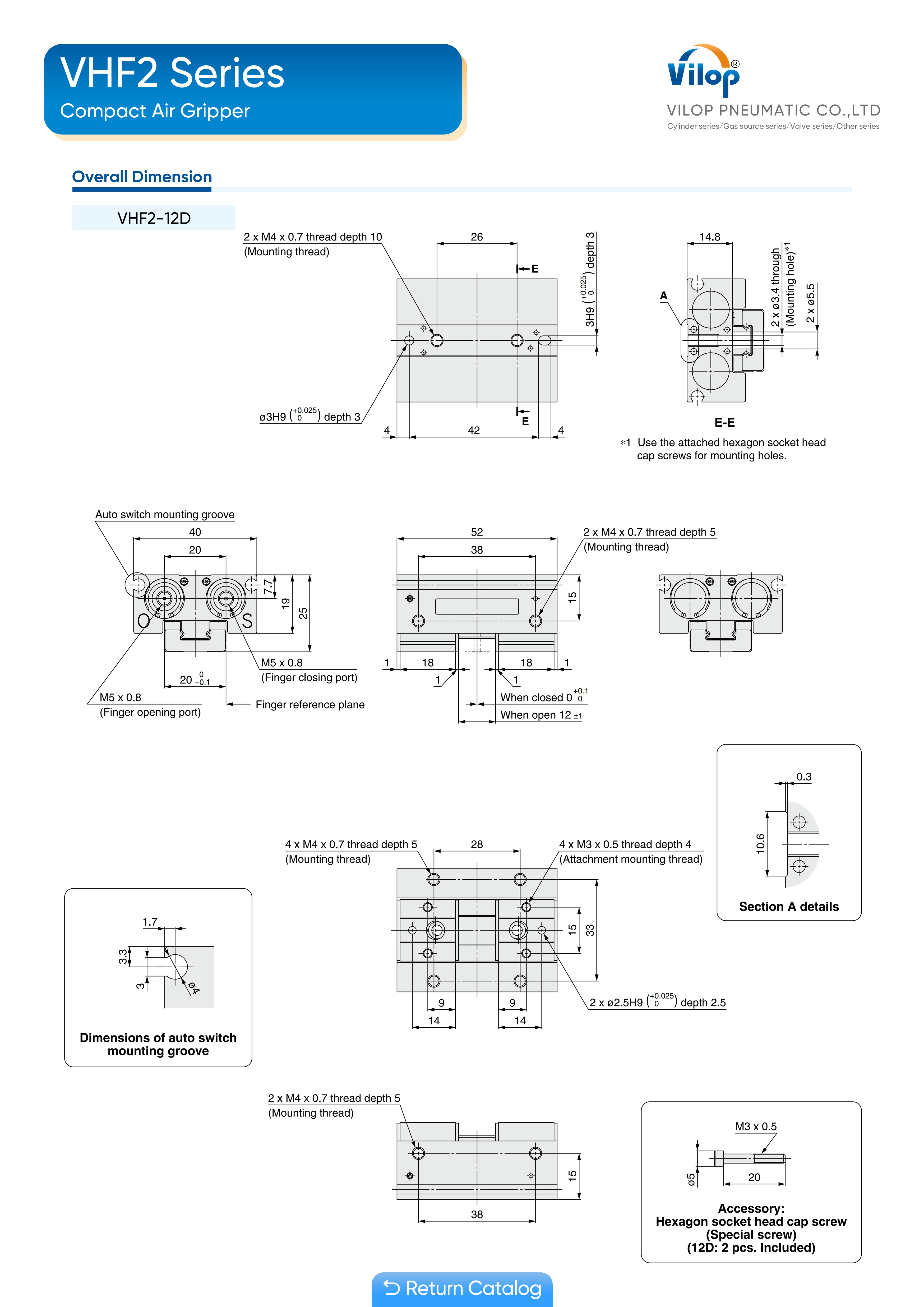

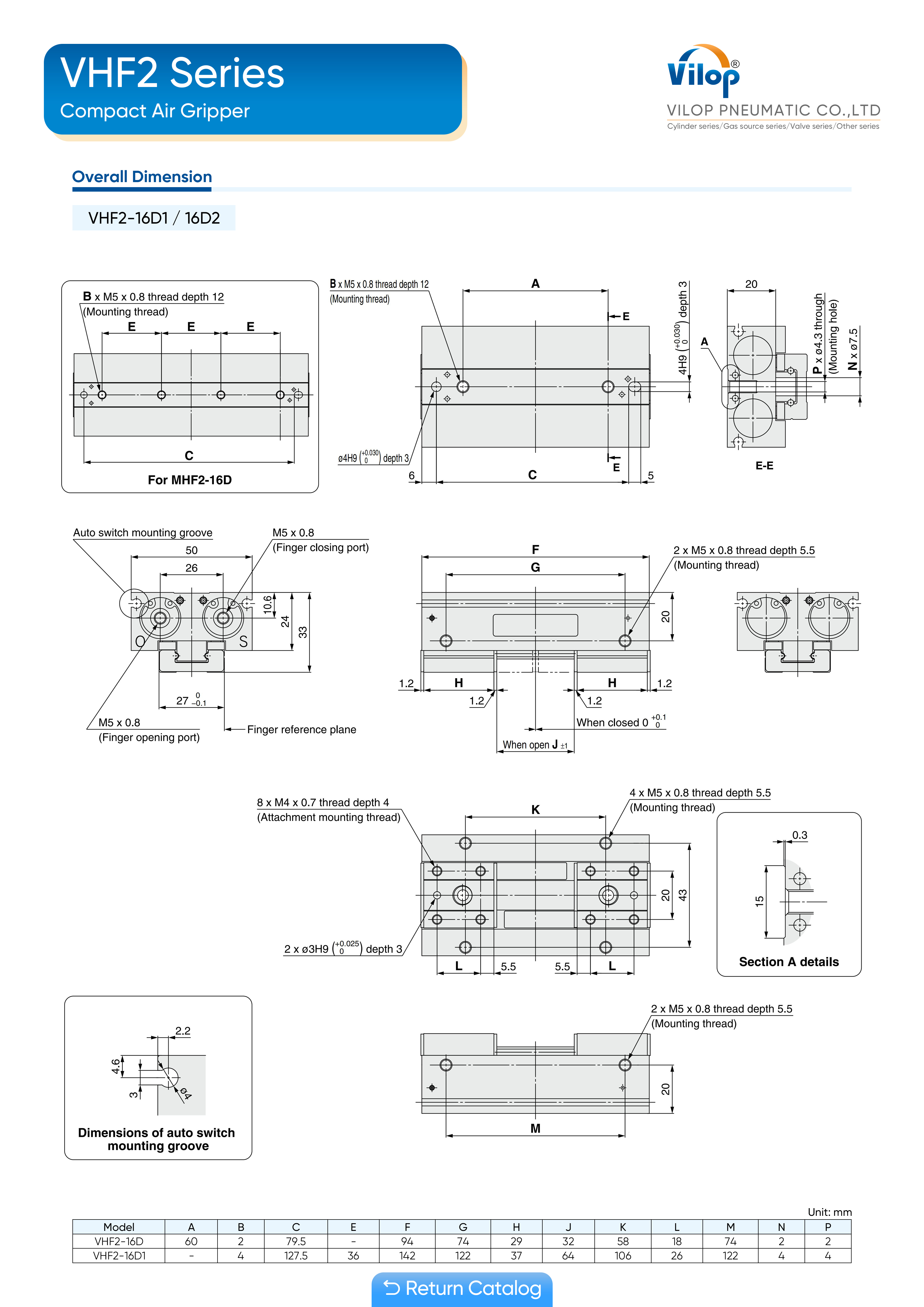

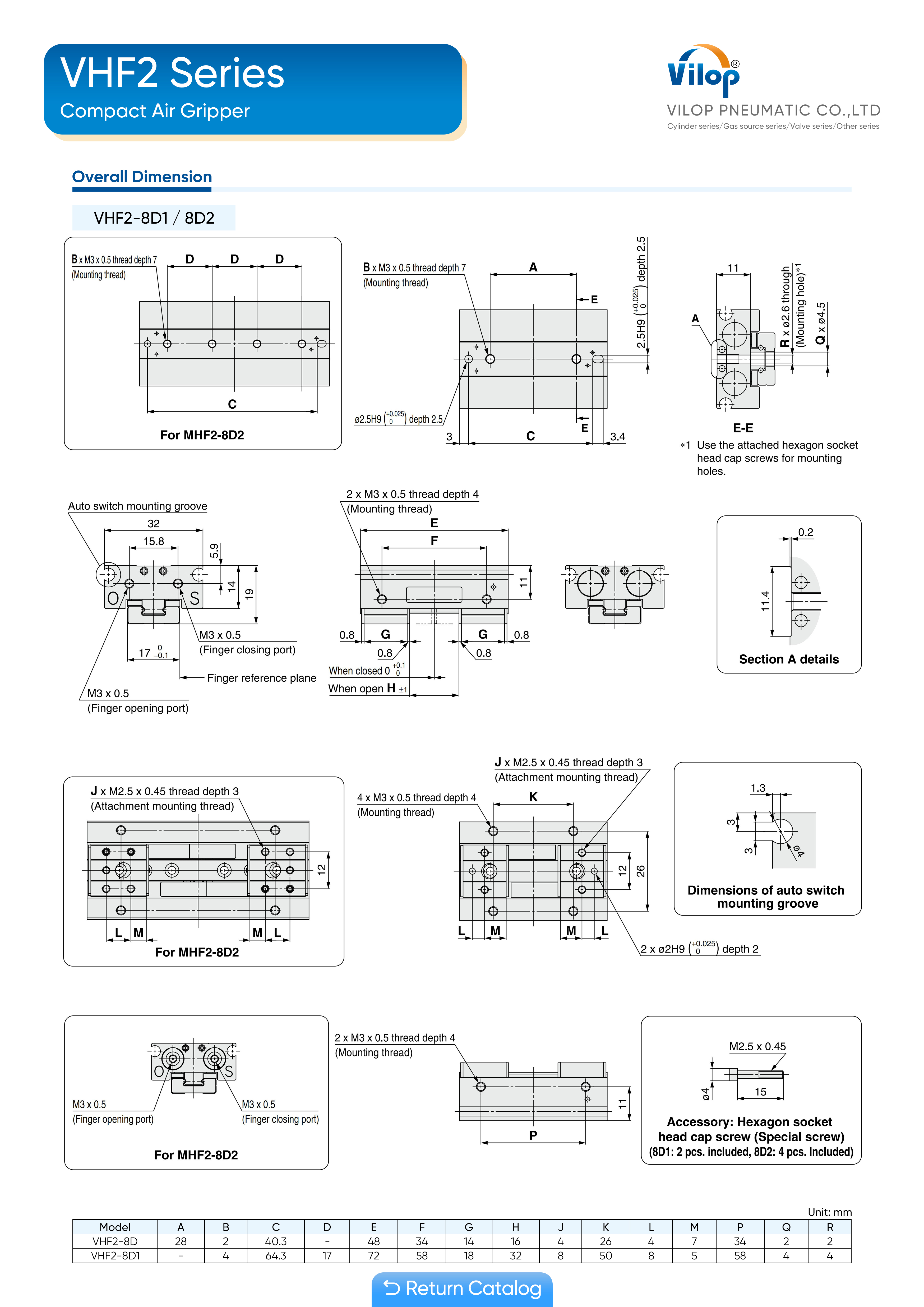

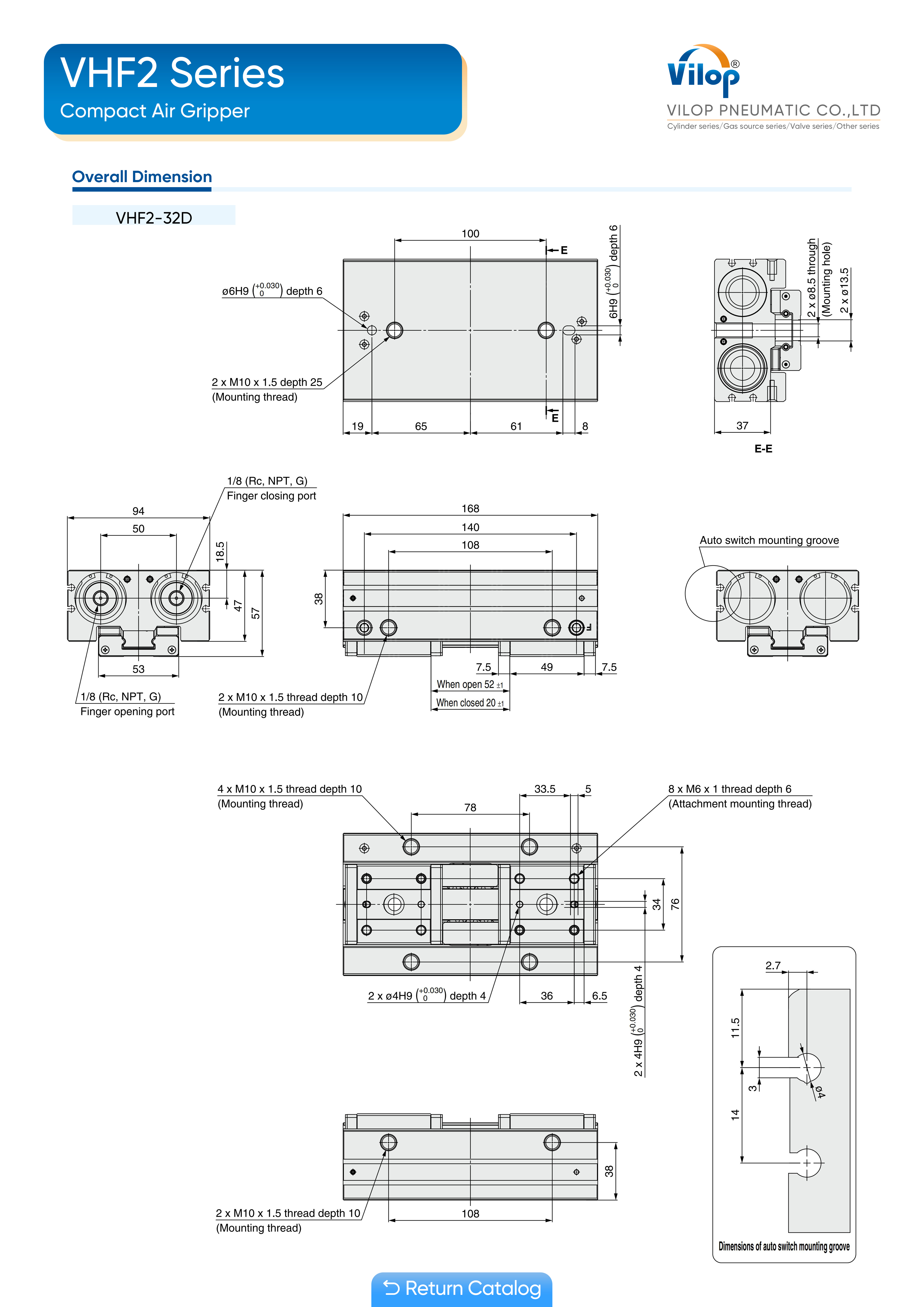

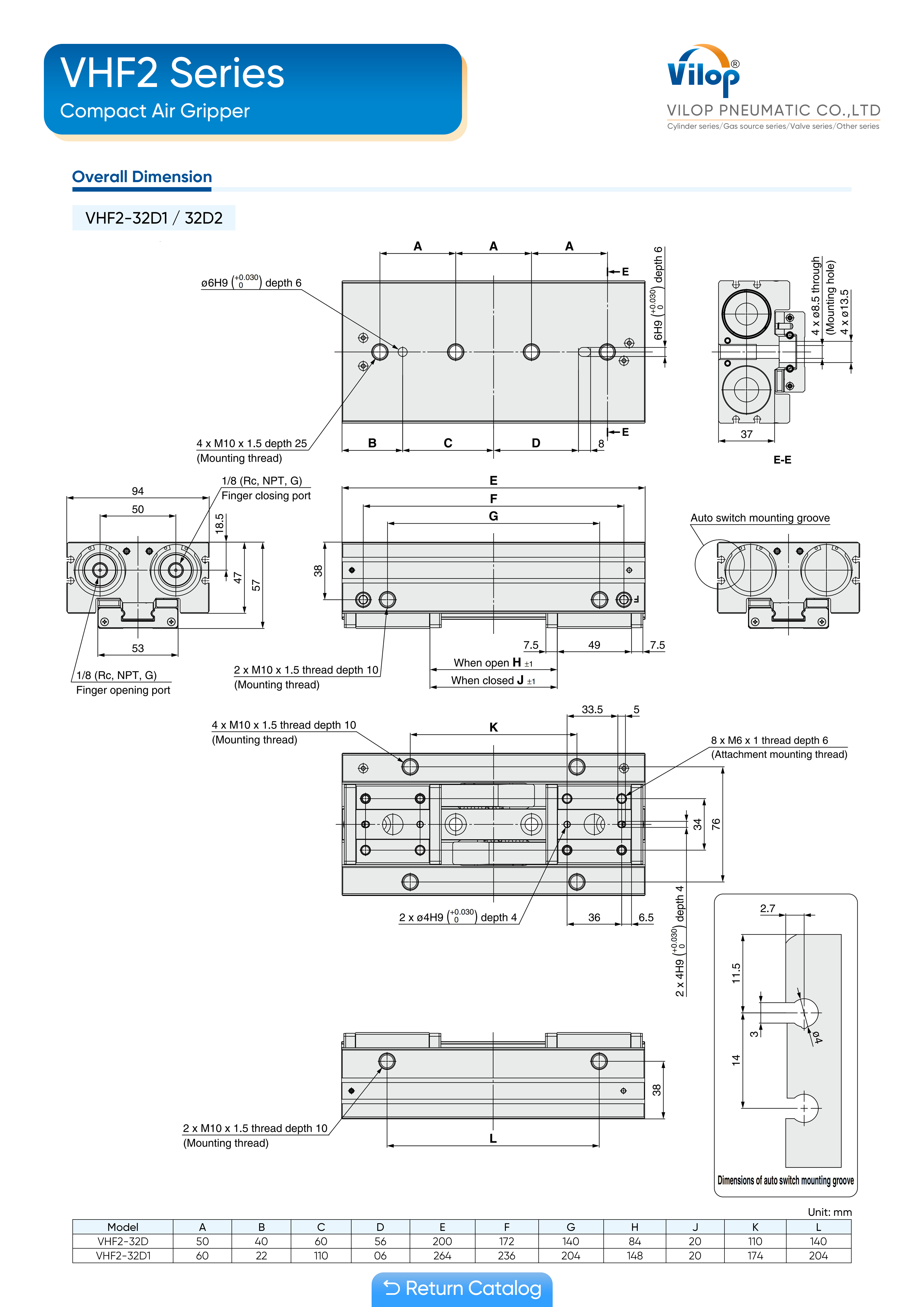

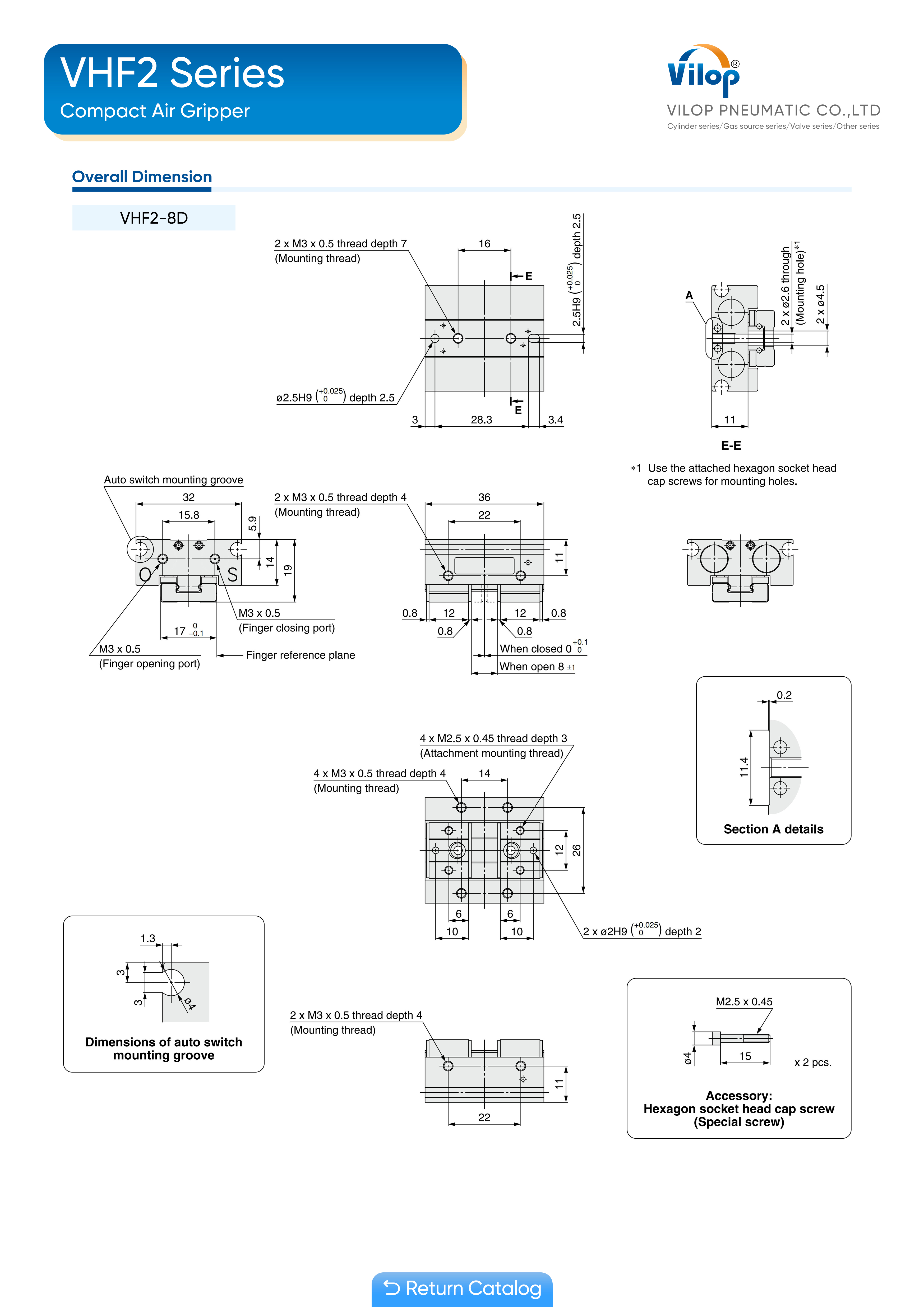

----- Overall Dimension -----

23456
