1.Thickened cylinder body hard oxidation process.

2. High strength air claw clamping is stable, with a large holding torque and higher work efficiency.

3. Finger cylinder has a long stroke, can grip large diameter objects, high-precision claw head, and higher flexibility.

4. Built in magnetic ring can be paired with magnetic switch.

5. Widely applicable in multiple scenarios.

6. Gasket use anti-collision gasket structure​.

7. Barrel appearance is same with SMC new type-MHS3 series, easy to install the sensor and save material.

  • MHS3

  • VILOP

  • MHS3

Type:
MHS3-16D
MHS3-16D
MHS3-20D
MHS3-20D
MHS3-25D
MHS3-25D
MHS3-32D
MHS3-32D
MHS3-40D
MHS3-40D
MHS3-50D
MHS3-50D
MHS3-63D
MHS3-63D
MHS3-80D
MHS3-80D
MHS3-100D
MHS3-100D
MHS3-125D
MHS3-125D
SKU:
Availability:
Quantity:
Inquire Add to Basket


Material Aluminum Alloy Weight

60~6460g
Working Medium Clean Air Showroom Location United States, China
Proof Pressure 0.15~0.7Mpa
 Bore size 16D/20D/25D/32D/40D/50D/63D/80D/100D/125D
Operating Speed  50~800mm/s Lubrication Not Required
Operation

Double acting


 Port size
Mountings		 M5*0.8,M3*0.5
Warranty 1.5 years



MHS3 Finger cylinder

1.Thickened cylinder body hard oxidation process.

2. High strength air claw clamping is stable, with a large holding torque and higher work efficiency.
3. Finger cylinder has a long stroke, can grip large diameter objects, high-precision claw head, and higher flexibility.
4. Built in magnetic ring can be paired with magnetic switch.
5. Widely applicable in multiple scenarios.
6. Gasket use anti-collision gasket structure.

7. Barrel appearance is same with SMC new type-MHS3 series, easy to install the sensor and save material.

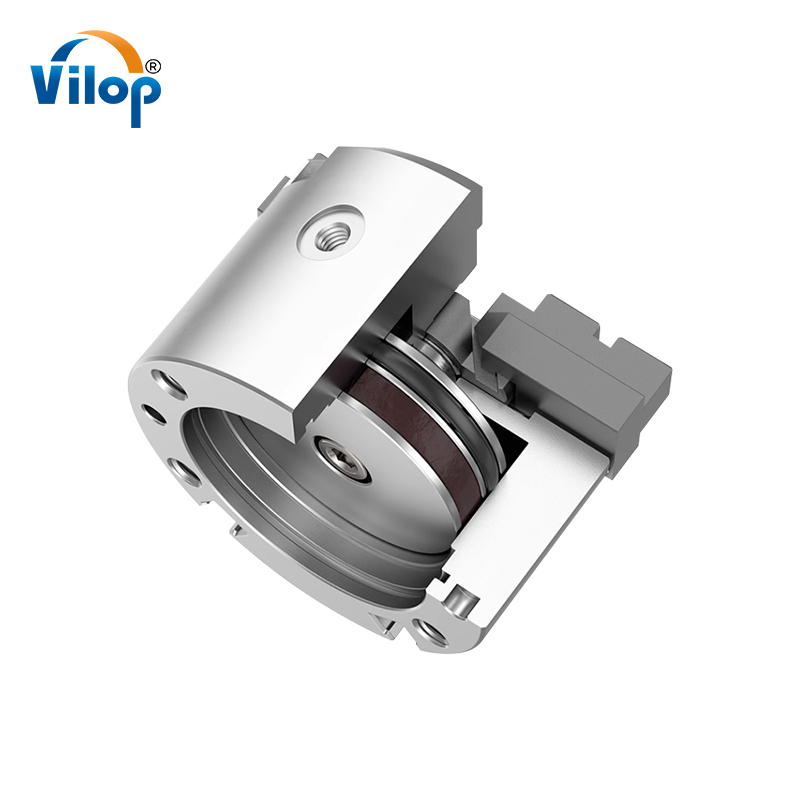

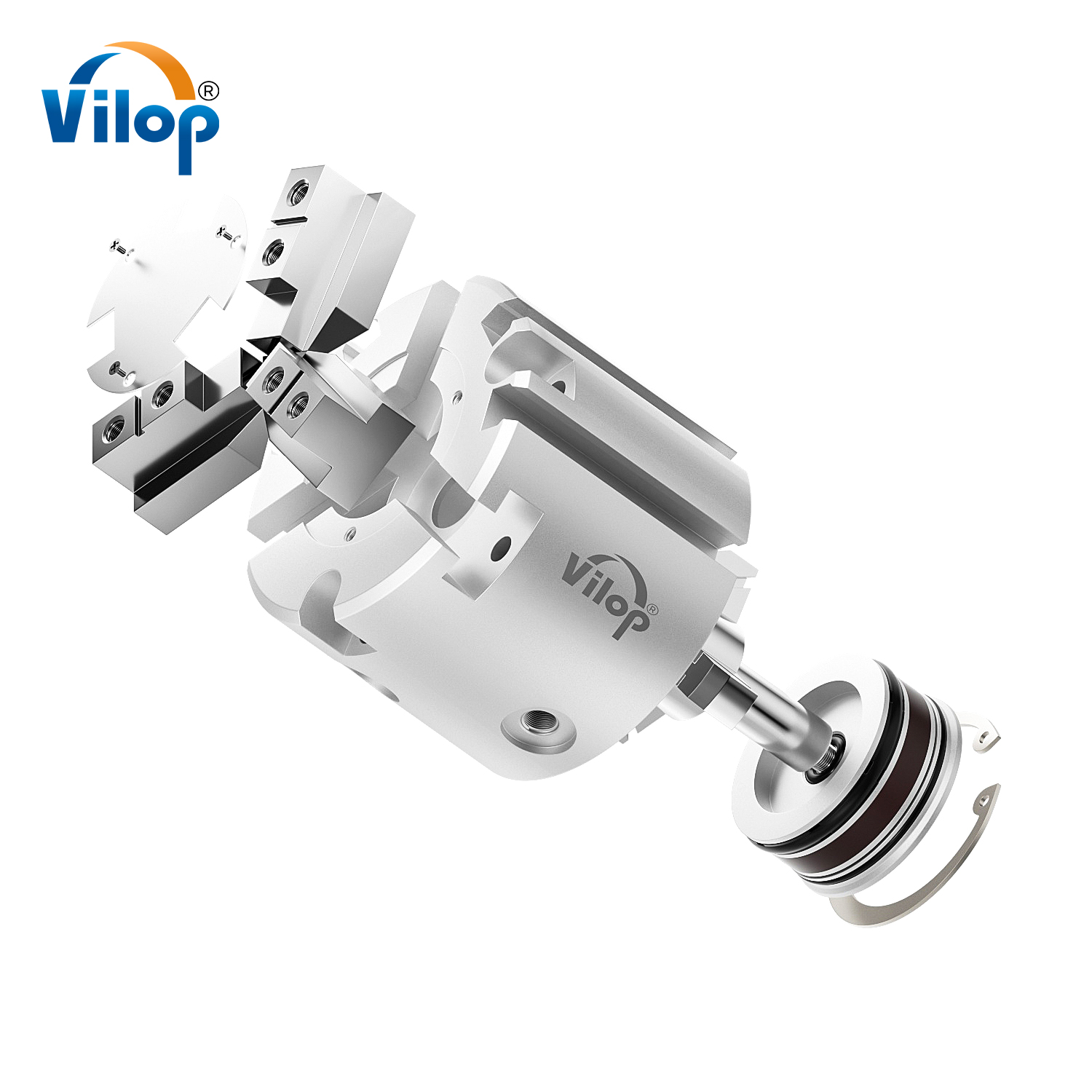

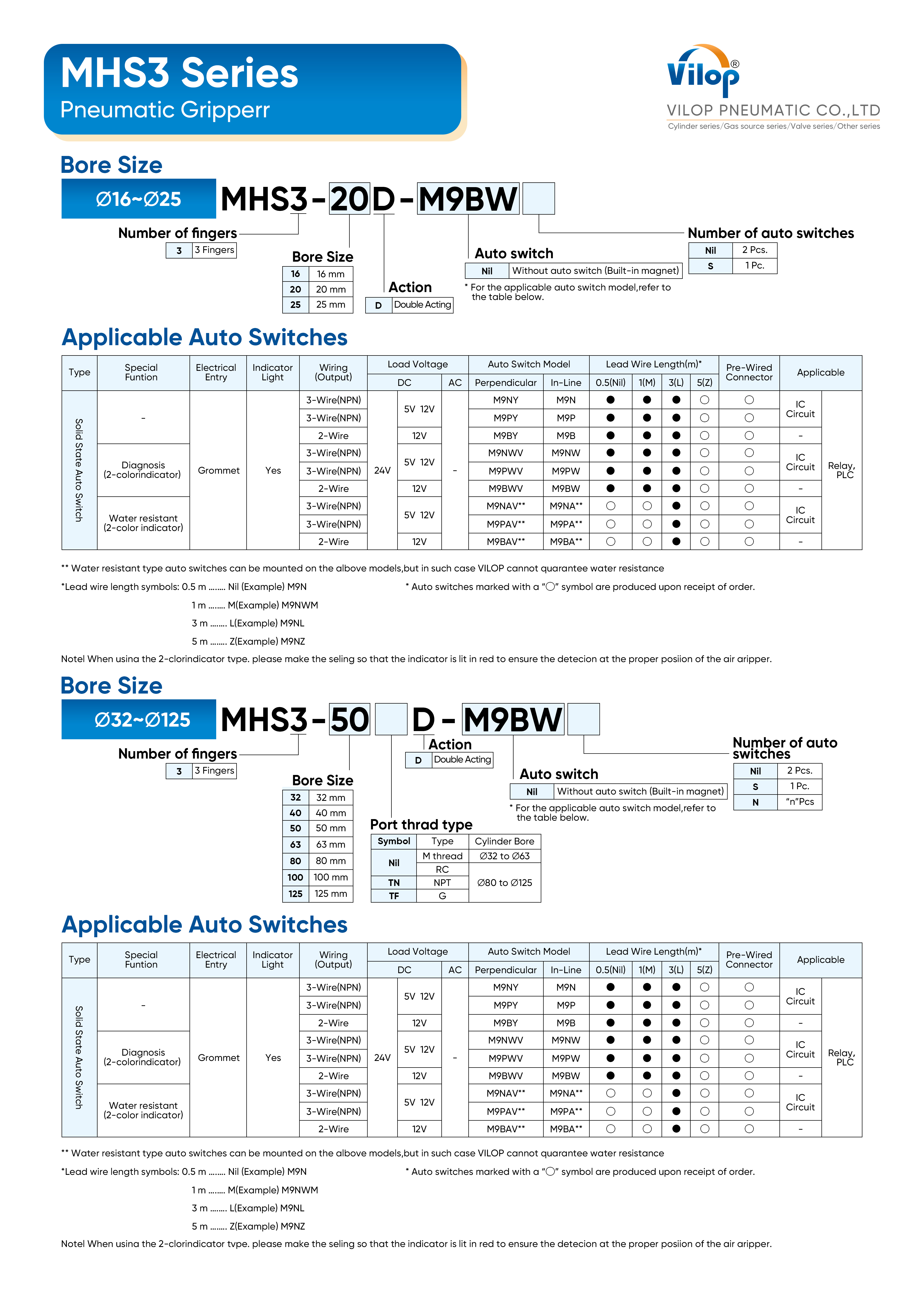

----- Internal Structure -----

173

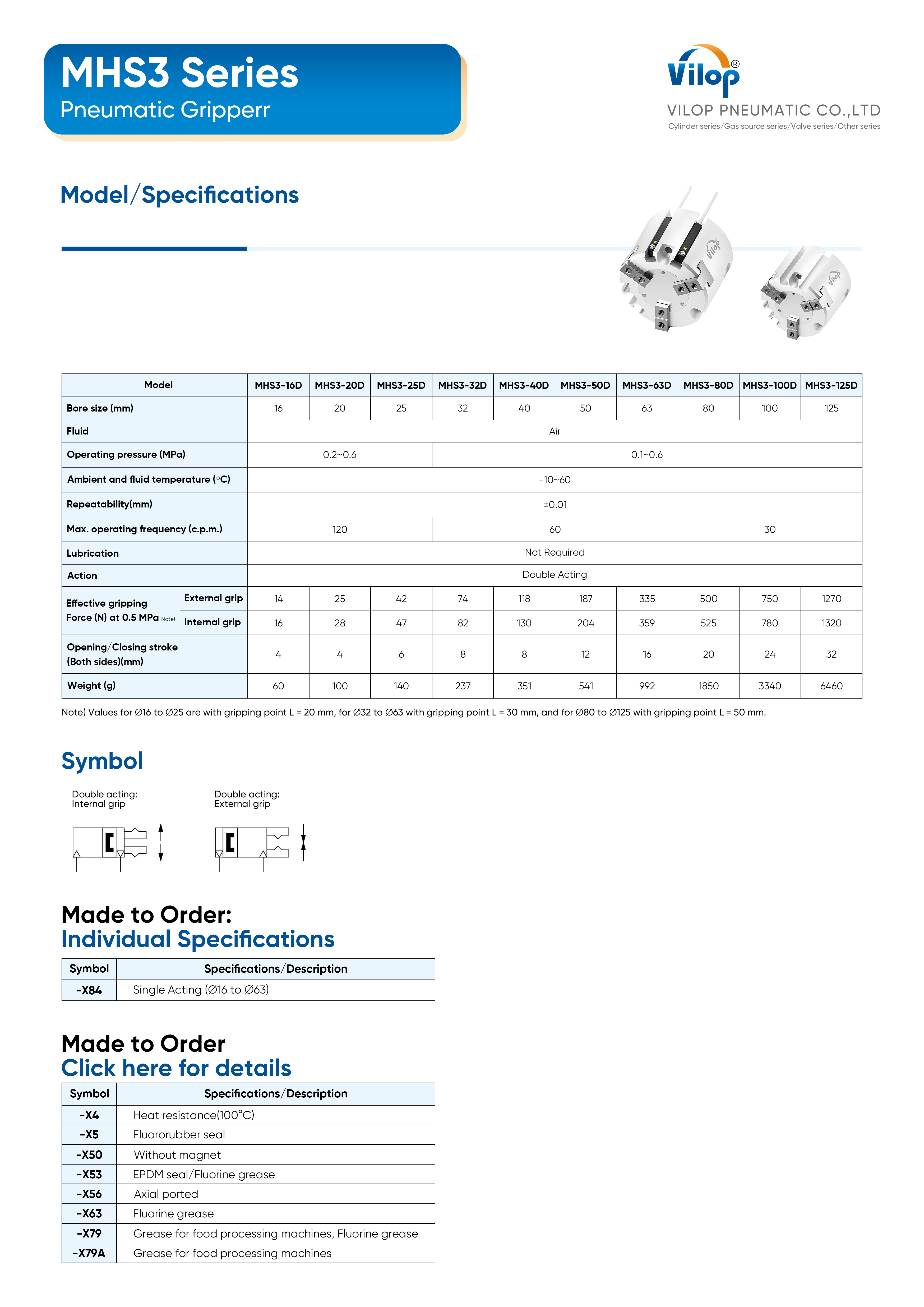

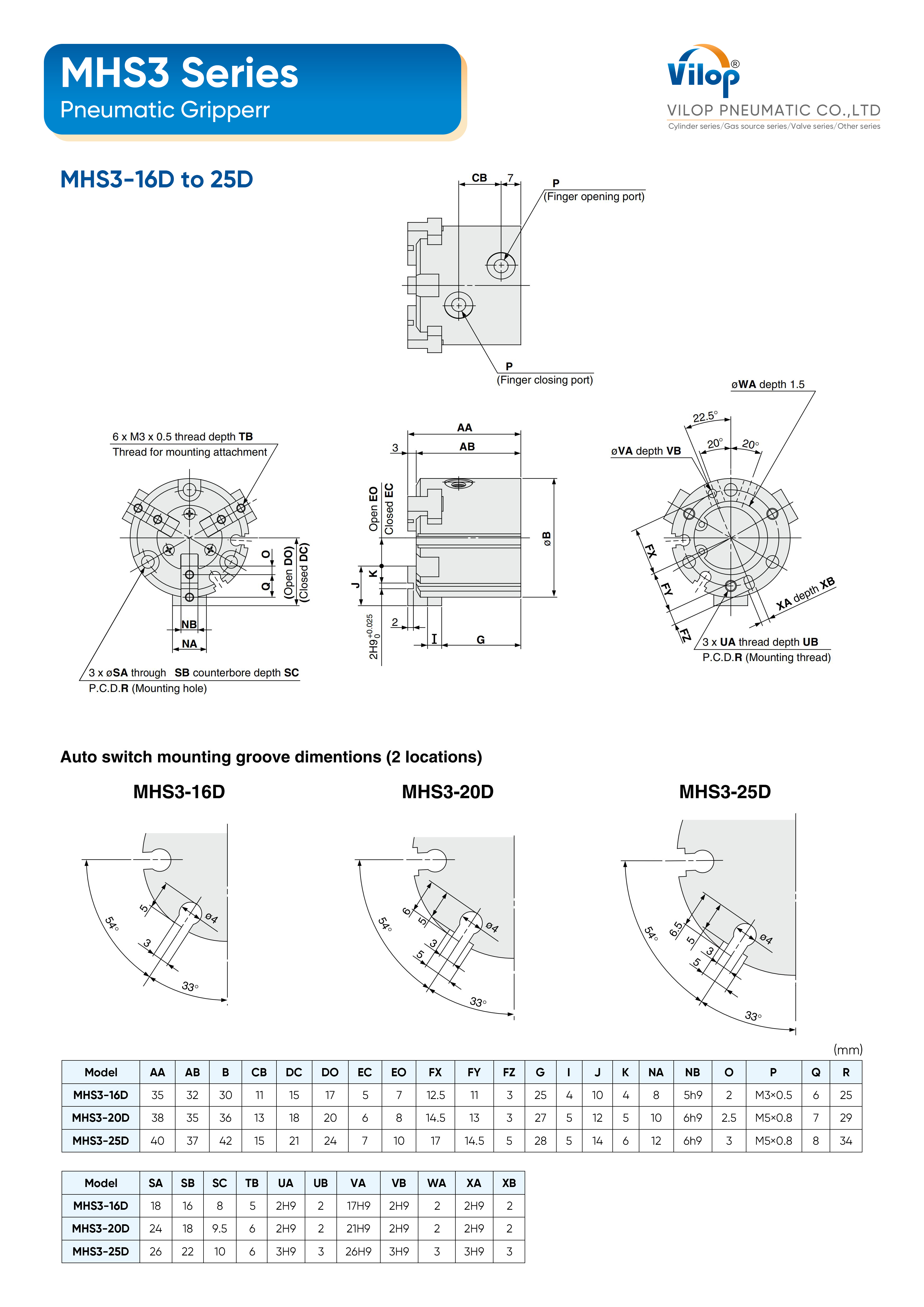

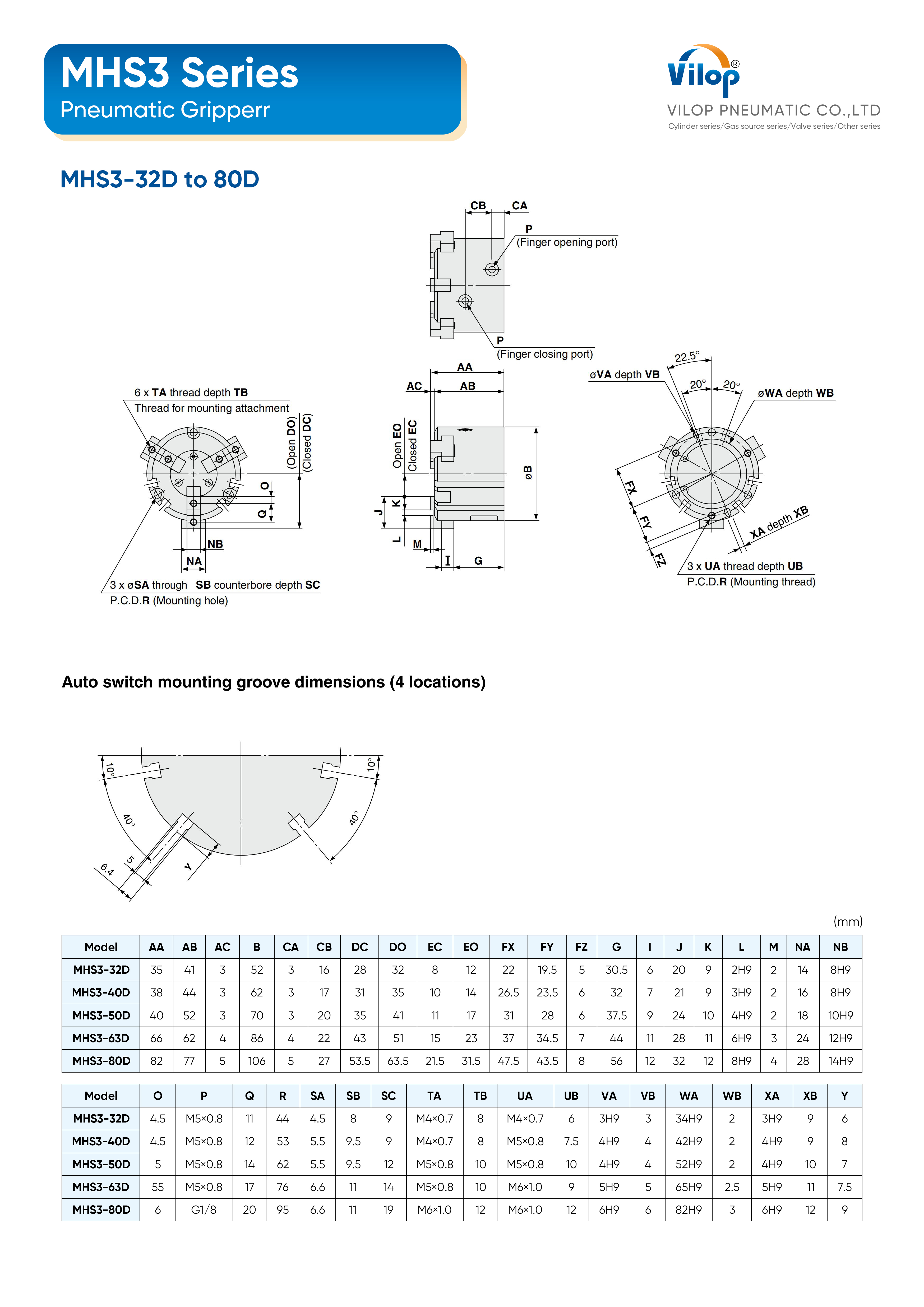

----- Overall Dimension -----

174175176177178
