1.Thickened cylinder body with hard-anodized finish for superior durability.
2. Comprehensive size range available, with full customization options.
3. Long stroke, high thrust output, and 5-year service life for enhanced operational flexibility.
4. Built-in magnetic ring compatible with magnetic switches.
5. Versatile for diverse industrial applications.
6. Gasket features impact-resistant construction.
7. Matches SMC's new CY3B series in design; easy sensor installation for material efficiency.

  • RMS

  • VILOP

  • RMS

Type:
RMS10-100
RMS10-100
RMS10-200
RMS10-200
RMS10-300
RMS10-300
RMS10-400
RMS10-400
RMS10-500
RMS10-500
RMS16-100
RMS16-100
RMS16-200
RMS16-200
RMS16-300
RMS16-300
RMS16-400
RMS16-400
RMS16-500
RMS16-500
RMS20-100
RMS20-100
RMS20-200
RMS20-200
RMS20-300
RMS20-300
RMS20-400
RMS20-400
RMS20-500
RMS20-500
RMS25-100
RMS25-100
RMS25-200
RMS25-200
RMS25-300
RMS25-300
RMS25-400
RMS25-400
RMS25-500
RMS25-500
RMS32-100
RMS32-100
RMS32-200
RMS32-200
RMS32-300
RMS32-300
RMS32-400
RMS32-400
RMS32-500
RMS32-500
RMS40-100
RMS40-100
RMS40-200
RMS40-200
RMS40-300
RMS40-300
RMS40-400
RMS40-400
RMS40-500
RMS40-500
SKU:
Availability:
Quantity:
Inquire Add to Basket


Material Aluminum Alloy Weight

80~11300g
Working Medium Clean Air Showroom Location United States, China
Proof Pressure 0.15~0.7Mpa
 Bore size 6/10/15/20/25/32/50/63
Operating Speed  50~800mm/s Lubrication Not Required
Operation

Single acting


 Port size
Mountings		 M3*0.5,M5*0.8,RC1/8,RC1/4
Warranty 1.5 years



Magnetic Coupling Rodless Cylinders

1.Thickened cylinder body with hard-anodized finish for superior durability.
2. Comprehensive size range available, with full customization options.
3. Long stroke, high thrust output, and 5-year service life for enhanced operational flexibility.
4. Built-in magnetic ring compatible with magnetic switches.
5. Versatile for diverse industrial applications.
6. Gasket features impact-resistant construction.
7. Matches SMC's new RMS series in design; easy sensor installation for material efficiency.

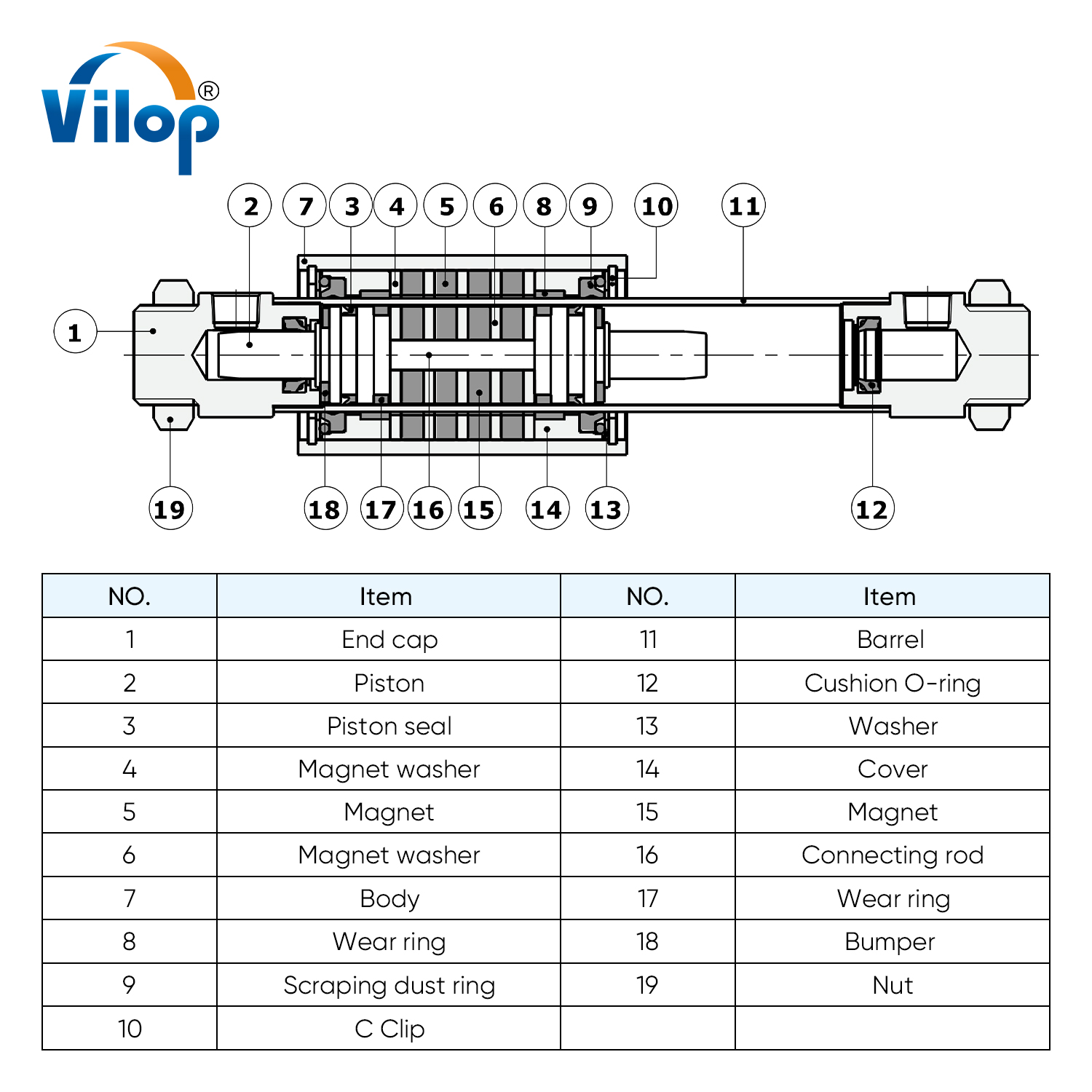

----- Internal Structure -----
